Component Locations

NOTE: For component locations, see Fig 1 and Fig 2
.

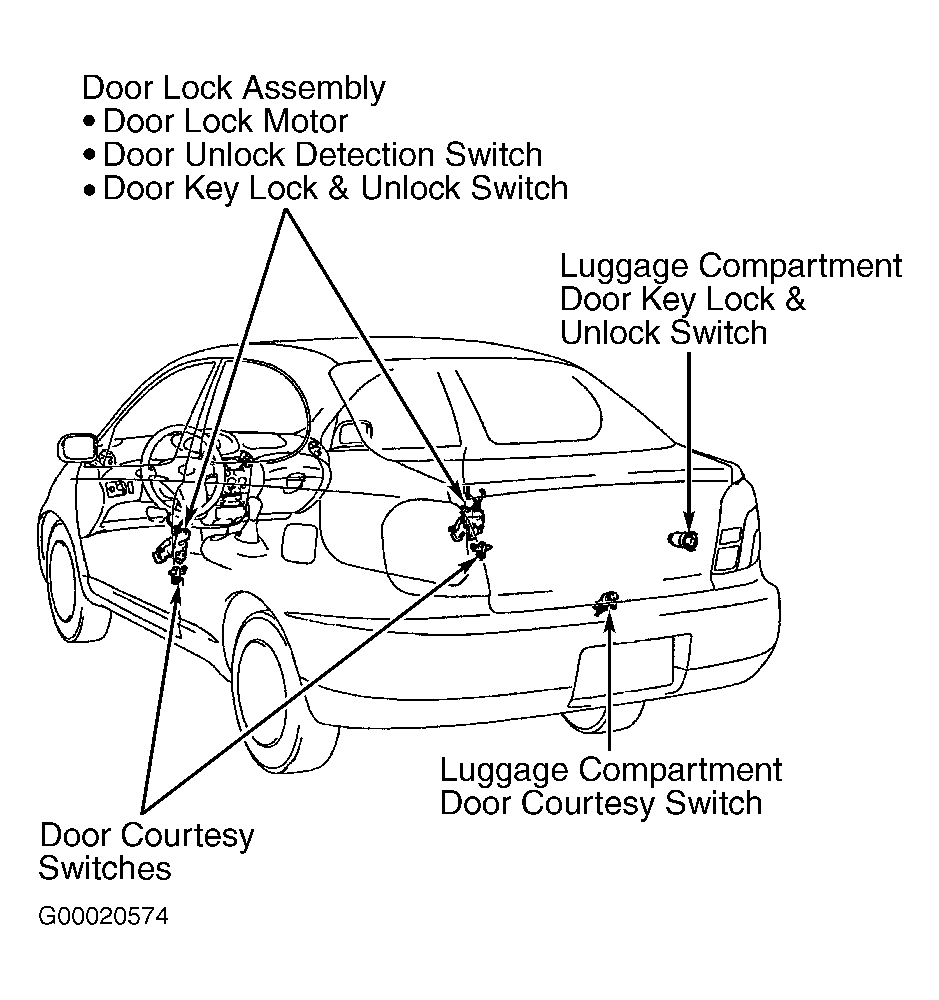

Fig 1: Locating Anti-Theft System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

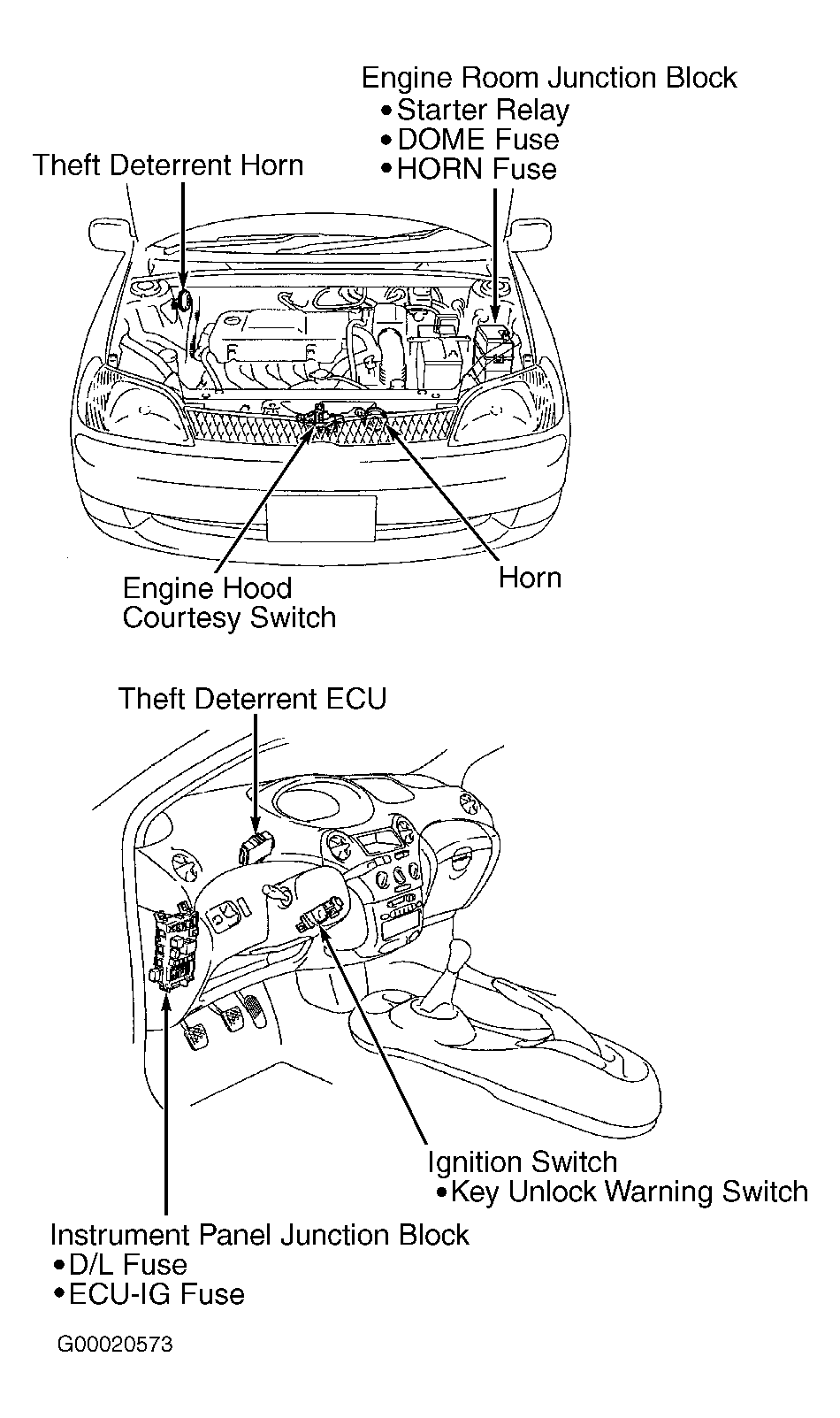

Fig 2: Locating Anti-Theft Components (2-Door Shown; 4-Door Is Similar - 2 Of 2)
