Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

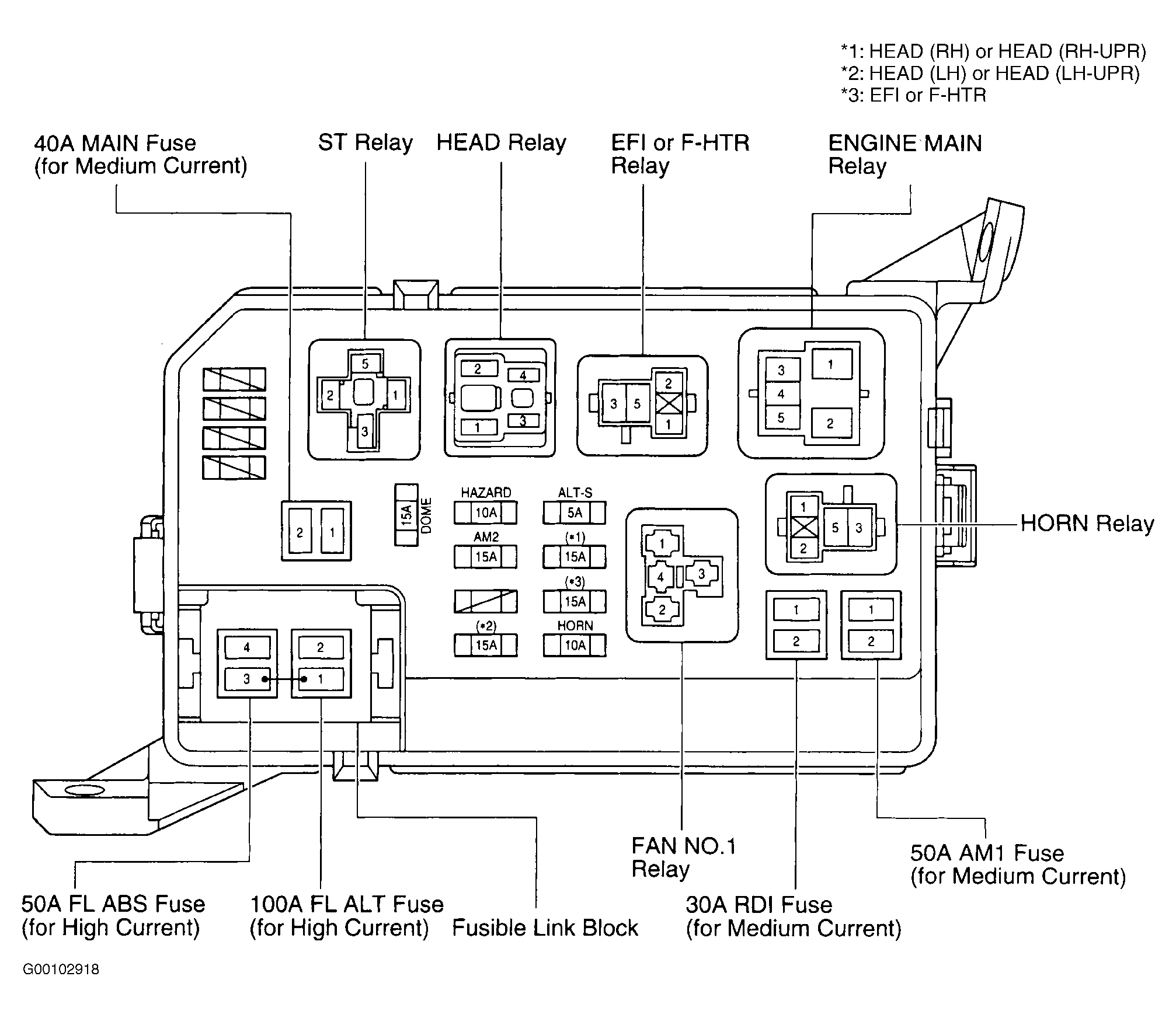

Fig 2: Identifying Engine Room J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

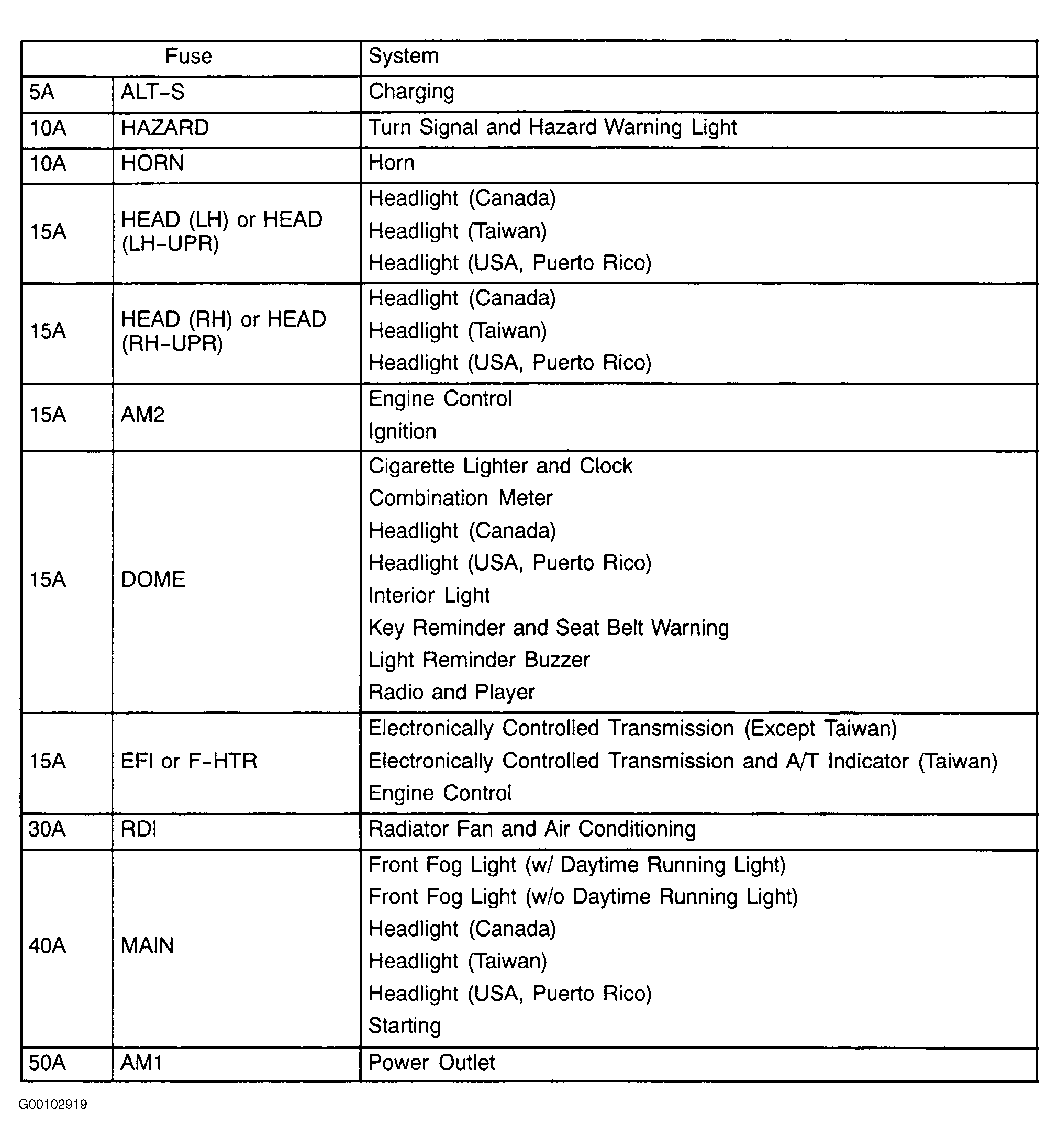

Fig 3: Engine Room J/B Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Engine Room R/B No. 5 Components (Except Taiwan)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Engine Room R/B No. 5 Components (Taiwan)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

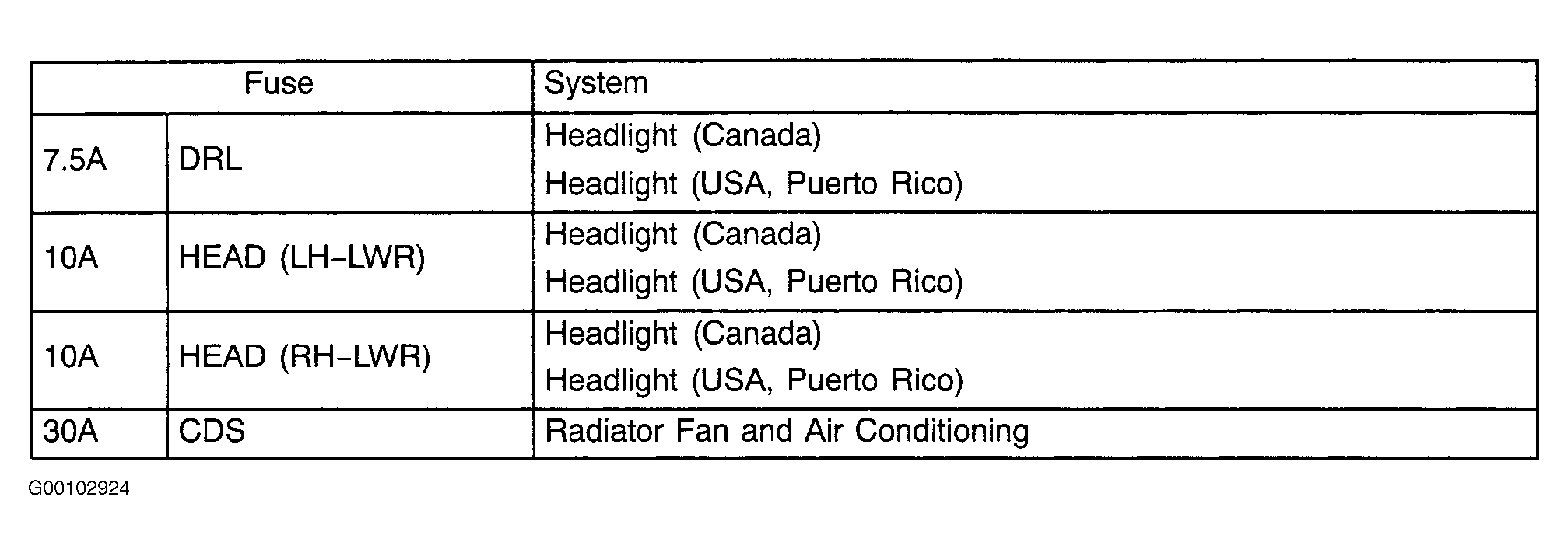

Fig 6: Engine Room R/B No. 5 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Engine Room R/B No. 6 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

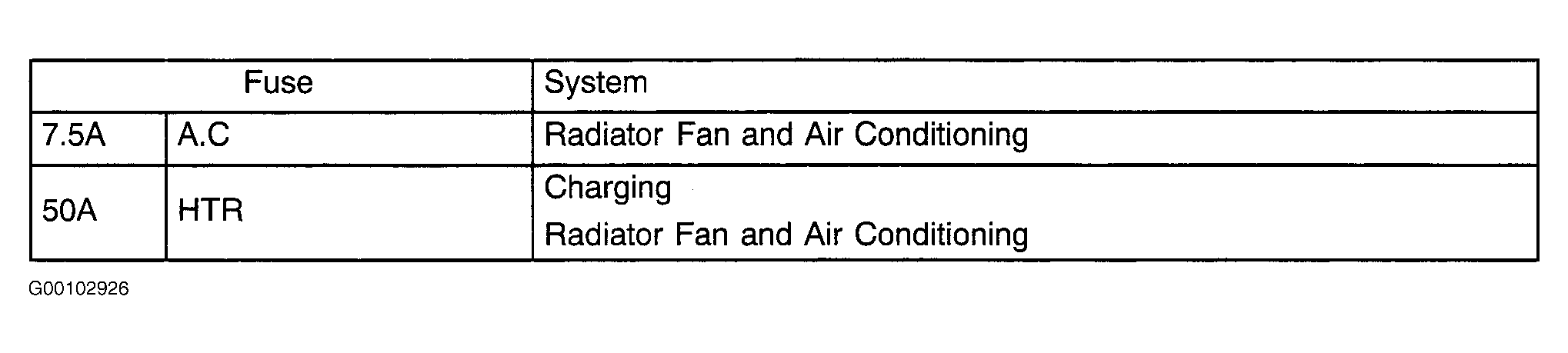

Fig 8: Engine Room R/B No. 6 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

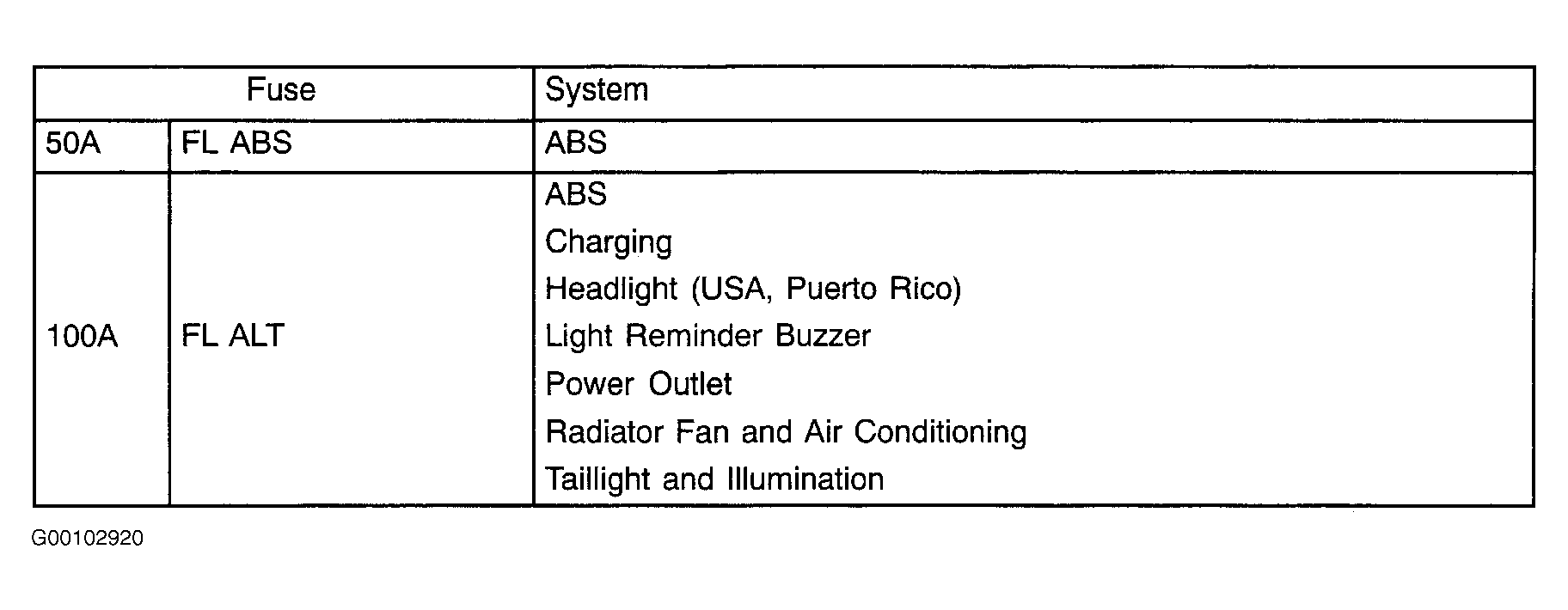

Fig 9: Fusible Link Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
