Input Shaft: Disassembly
- Using a feeler gauge, measure 3rd gear and 4th gear thrust clearances. See Fig 1. See INPUT SHAFT CLEARANCE SPECIFICATIONS table. Secure input shaft in soft-jaw vise. Using a dial indicator, measure 3rd gear and 4th gear radial clearance. See Fig 2. If any clearance exceeds service limit, replace gear, needle roller bearing and/or shaft.

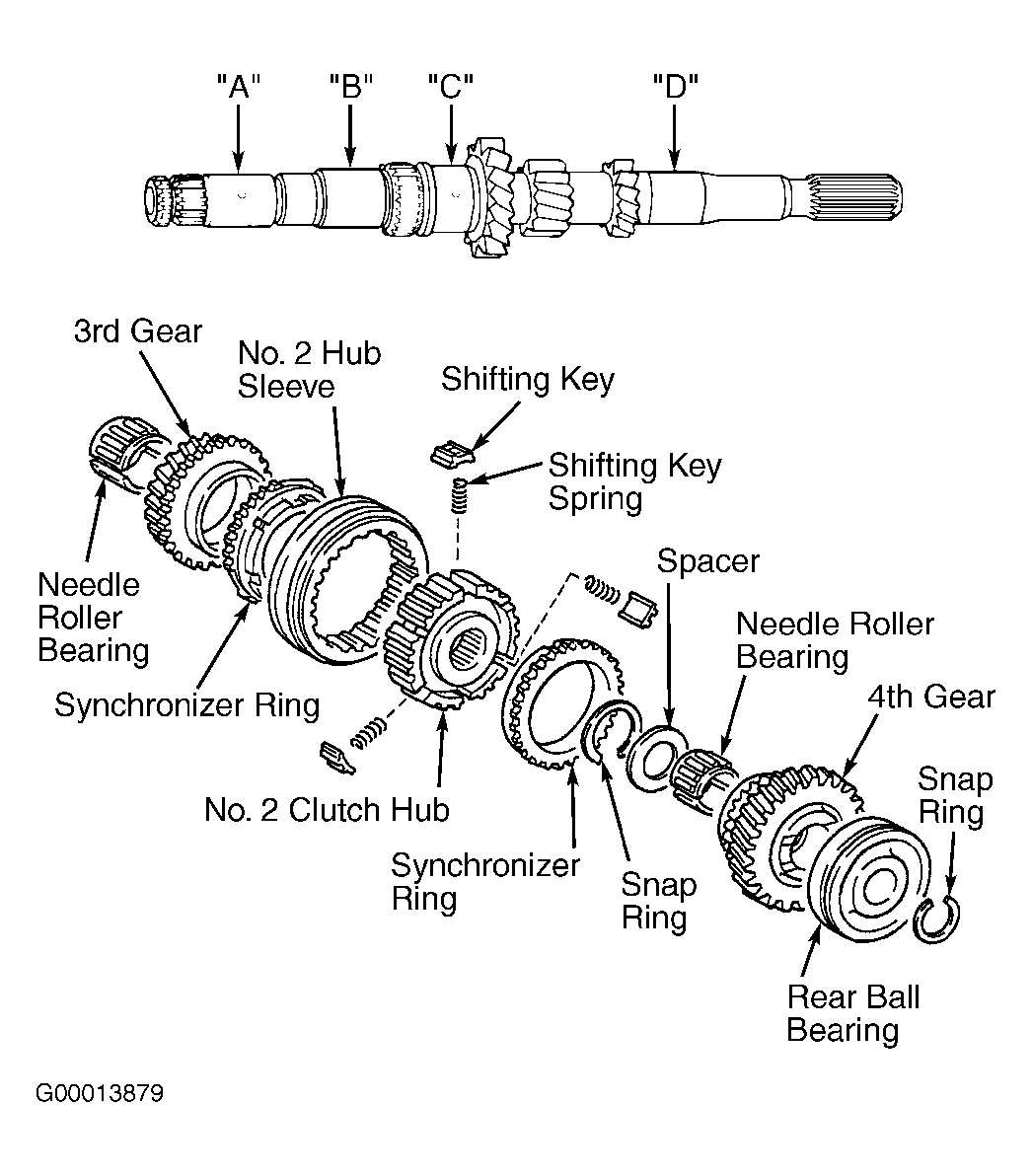

- Using 2 screwdrivers and a hammer, tap out input shaft snap ring. Using Bearing Remover (09950-00020) and a press, remove rear ball bearing. Remove needle roller bearing, spacer and synchronizer ring. See Figure.
- Using 2 screwdrivers and a hammer, tap out snap ring. Using bearing remover and a press, remove No. 2 hub sleeve, No. 2 clutch hub assembly, 3rd gear and synchronizer ring. See Figure.
- Support input shaft by hand. Remove needle roller bearings. Remove No. 2 hub sleeve from No. 2 clutch hub. Remove No. 2 shifting keys (3) and No. 2 shifting key springs from No. 2 clutch hub.
INPUT SHAFT CLEARANCE SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| 3rd Gear Thrust Clearance | ||
| Standard | .0039-.0138 (.100-.350) | |
| Service Limit | .0157 (.400) | |
| 4th Gear Thrust Clearance | ||
| Standard | .0039-.0217 (.100-.550) | |
| Service Limit | .0236 (.600) | |
| 3rd & 4th Gear Radial Clearance | ||
| Standard | .0006-.0023 (.015-.058) | |
| Service Limit | .0028 (.070) | |
