Passenger's Power Window Motor Circuit Breaker Test: Avalon

  1. Slightly lower driver's window. Disconnect harness connector from passenger's door power window motor. Connect ammeter positive lead to terminal No. 1 on harness side, and negative ammeter lead to negative terminal of battery. See Fig 1. Connect another jumper wire from positive battery terminal to terminal No. 2 at passenger's door power window motor (harness side). Window should raise to fully closed position. If window operates correctly, go to next step. If window does not operate correctly, go to POWER WINDOW MOTOR TEST .
  2. Continue to apply voltage and verify current changes to less than one amp in 4-90 seconds. Wait approximately 60 seconds and connect positive battery terminal to terminal No. 1 and negative battery terminal to terminal No. 2. Window should descend. If operation is not as specified, replace power window motor. See POWER WINDOW MOTOR  under REMOVAL & INSTALLATION.

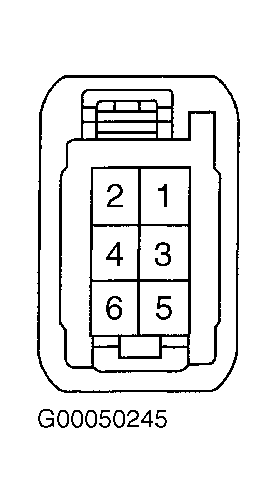

    Fig 1: Identifying Passenger Power Window Motor Connector Terminals (Avalon)
    G00050245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
