Seat Belt Buckle Switch

  1. Disconnect electrical connector for seat belt buckle switch. Seat belt buckle switch is located near the bottom of the seat belt assembly. See Fig 1. Seat belt buckle switch may also be referred to as buckle switch.
  2. Using ohmmeter, check that continuity exists between electrical terminals for seat belt buckle switch with seat belt fastened (ON position) and that no continuity exists with seat belt unfastened (OFF position). See Fig 1. Replace seat belt buckle switch if operation is not as specified.

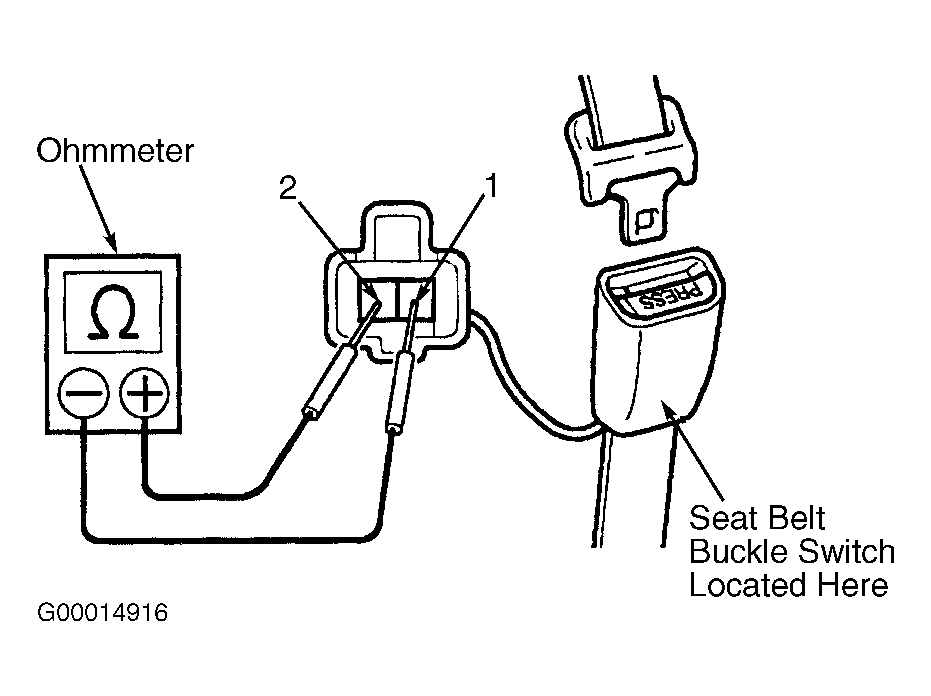

    Fig 1: Locating & Testing Seat Belt Buckle Switch
    G00014916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
