Front Personal Light
NOTE:
Front personal light may also be referred to as personal light.
- Front personal light is located near front of headliner. See Figure. Remove front personal light and disconnect electrical connector.

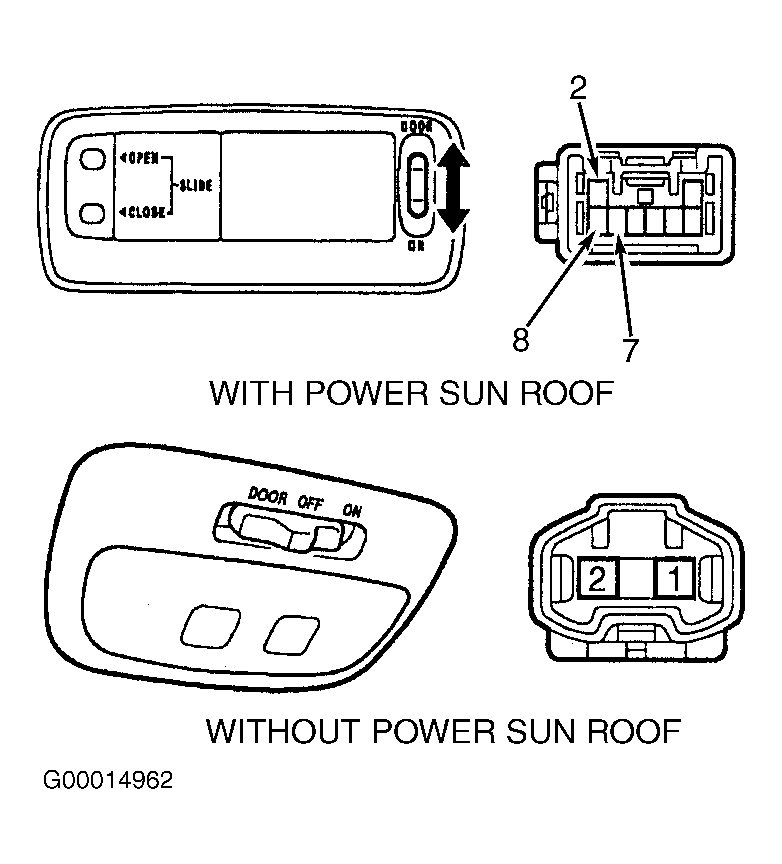

- On models with power sun roof, using ohmmeter, check that continuity exists between terminals No. 2 and 7 with switch in DOOR position. See Fig 1. Also, check that continuity exists between terminals No. 2 and 8 with switch in ON position. Replace bulb or light assembly if continuity does not exist.
- On models without power sun roof, using ohmmeter, check that continuity exists between both electrical terminals on front personal light. See Fig 1. Replace bulb or light assembly if continuity does not exist.
