Back (Rear Liftgate) Door Motor
NOTE:
Back (rear liftgate) door motor may also be referred to as back door lock motor.

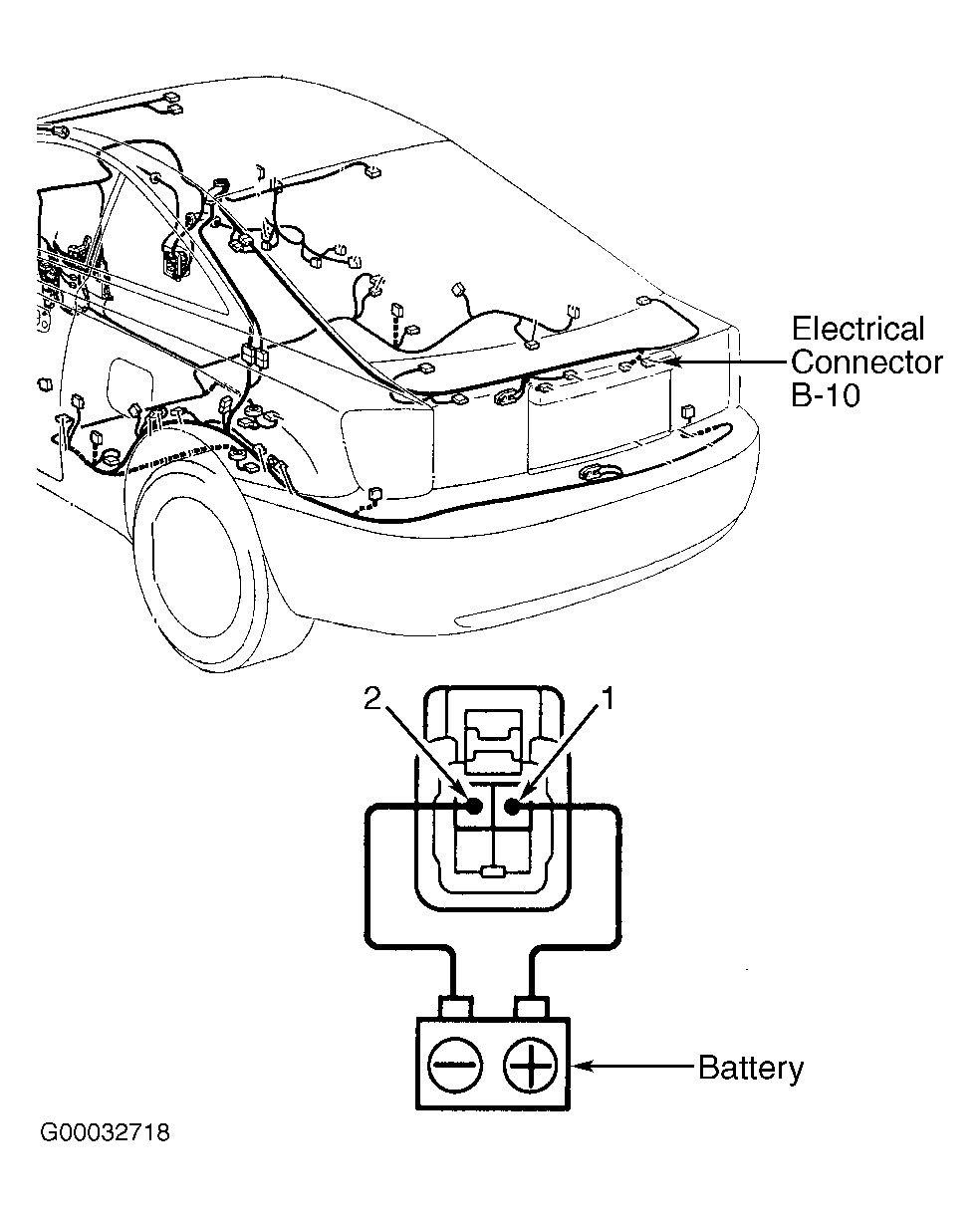

- Back (rear liftgate) door motor is incorporated into the door lock assembly on the back (rear liftgate) door. Remove necessary components for access to electrical connector B10. See Fig 1.
- Disconnect electrical connector B10. Using jumper wires, apply battery voltage and ground to specified electrical terminals on electrical connector (component side) for back (rear liftgate) door motor. See Fig 1. The back (rear liftgate) door motor should operate and move the door lock link to UNLOCK position. Replace door lock assembly if back (rear liftgate) door motor does not operate.
