Rear Brake Speed Sensor: Removal

  1. Disconnect Speed Sensor Connector
    1. Remove the seat cushion, seatback and quarter trim.
    2. Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet.

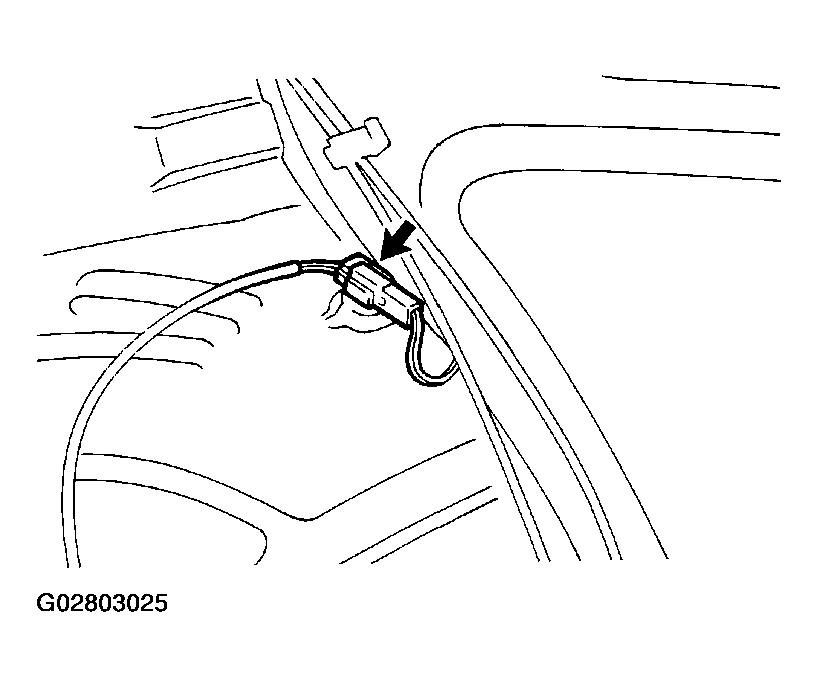

    Fig 1: Disconnecting Speed Sensor Connector
    G02803025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove Speed Sensor
    1. Remove the 2 sensor wire harness clamp bolts from the body and shock absorber.
    2. Remove the speed sensor from the axle carrier.

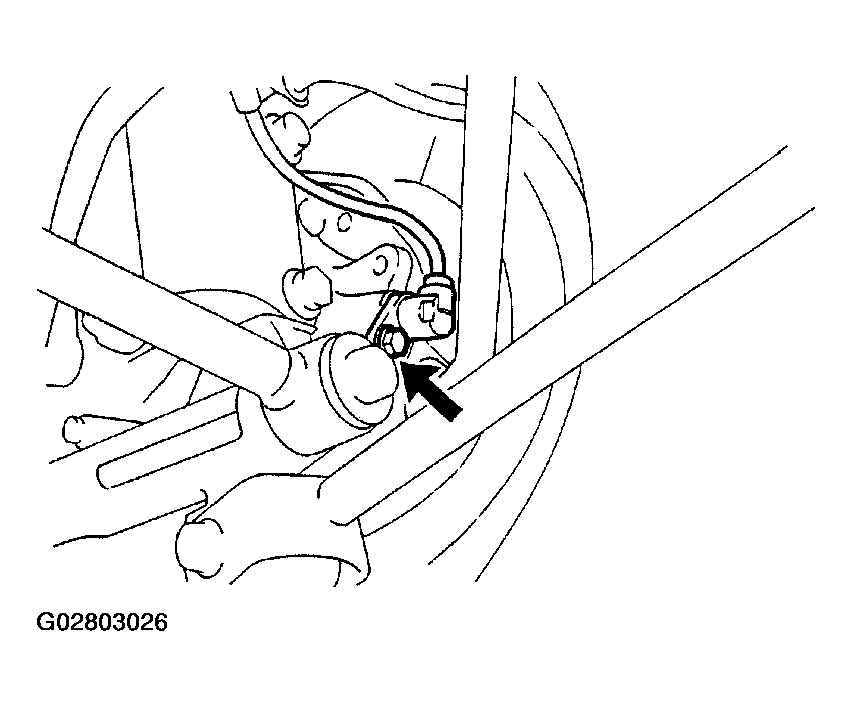

      Fig 2: Removing Speed Sensor
      G02803026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
