Rear Brake Speed Sensor: Installation

1. Install the speed sensor to the axle carrier.

   Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

2. Install the 2 sensor wire harness clamp bolts to the body and shock absorber.

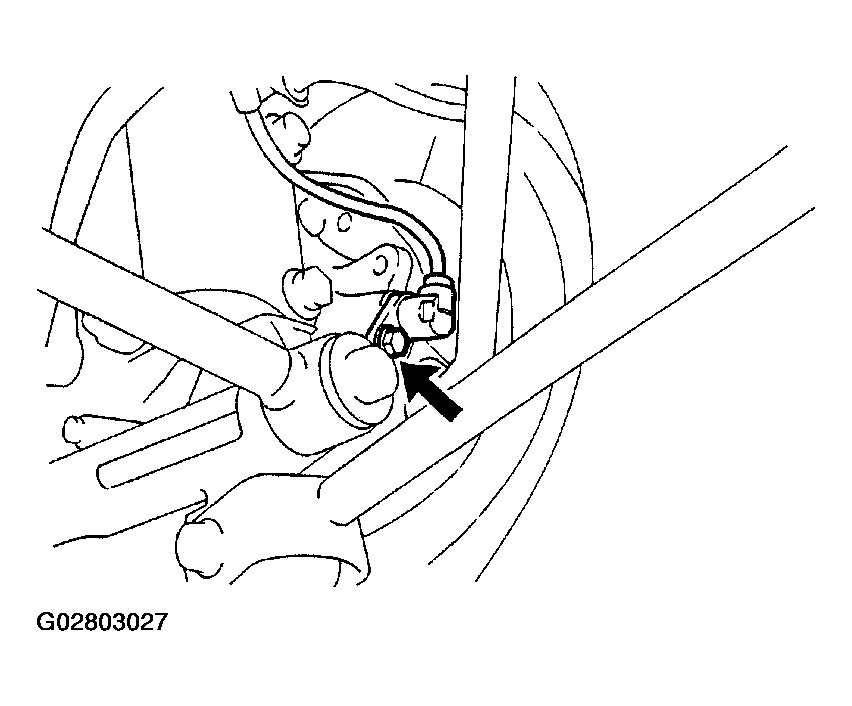

   Fig 1: Installing Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

1. Connect the speed sensor connector, and put in the sensor wire harness with the grommet.

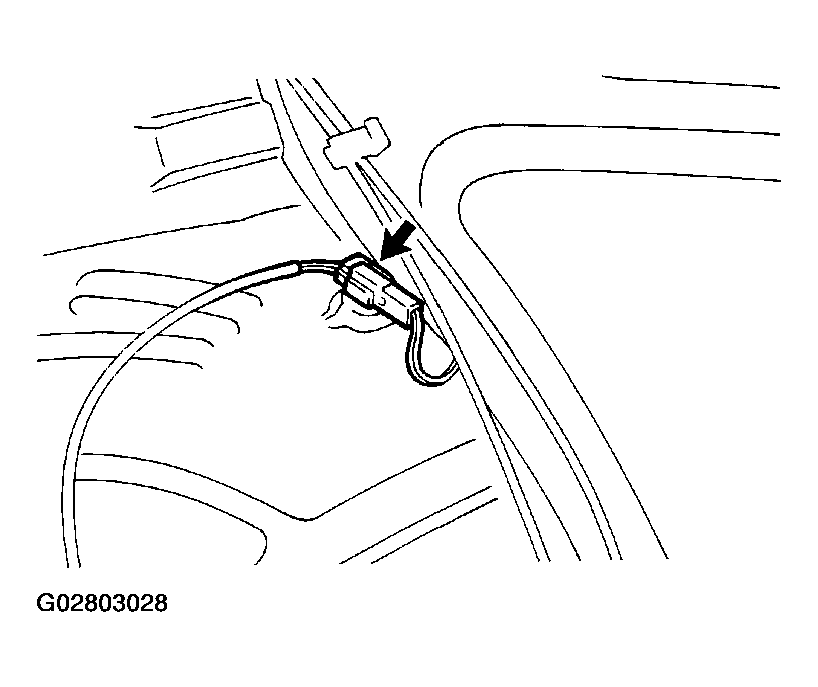

   Fig 2: Connecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the quarter trim, seatback and seat cushion.

1. For Anti-Lock Brake system, see step 2  under PRE-CHECK .
2. For ABS & Traction Control system, see 2  under PRE-CHECK .

)
