Front Speed Sensor: Components

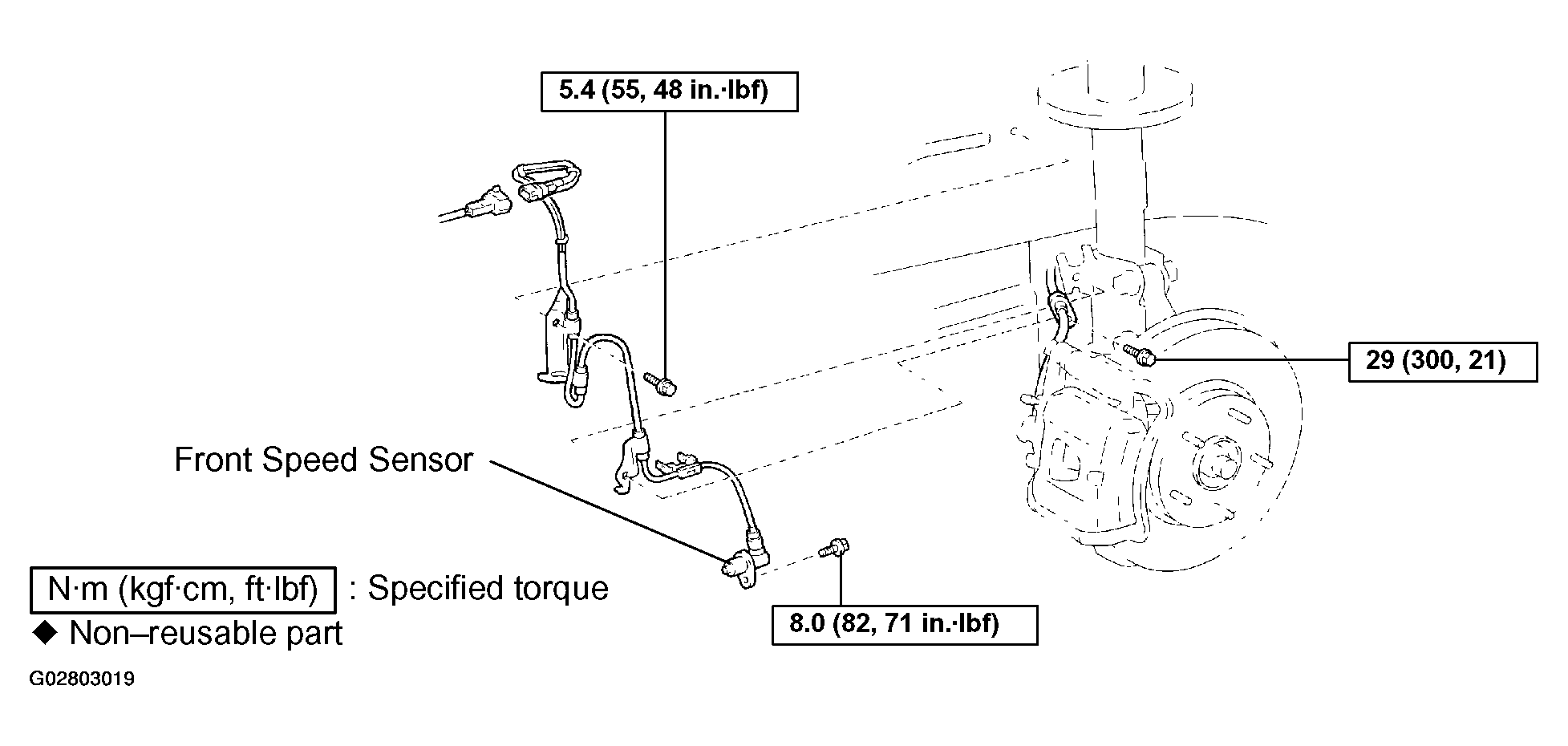

Fig 1: Locating Front Speed Sensor And Torque Specifications

G02803019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
