Terminals Of Ecu

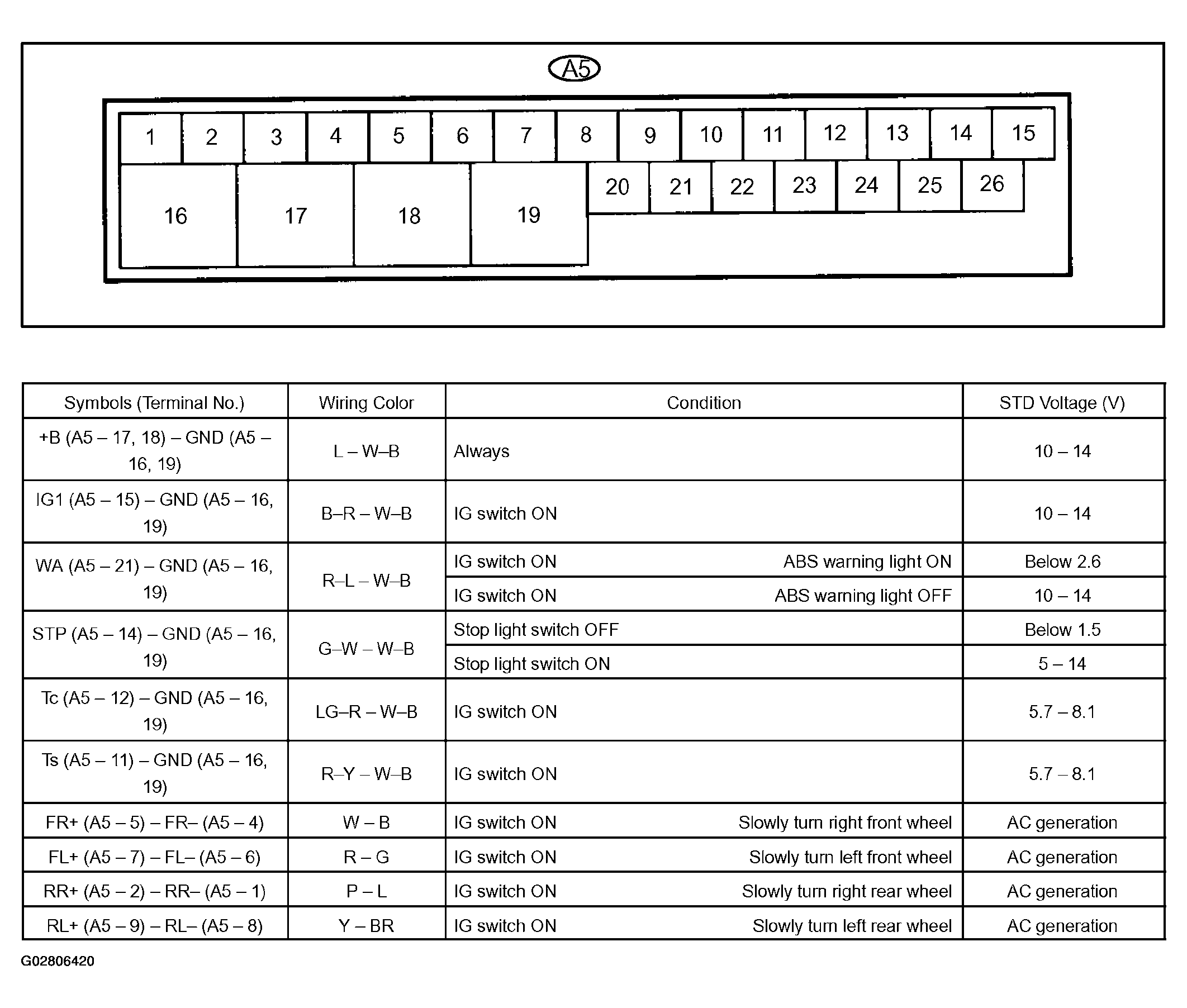

Fig 1: Identifying ECU Terminals And Functions Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
