Check For Fluid Leakage

Check fluid leaks from the actuator or hydraulic lines.

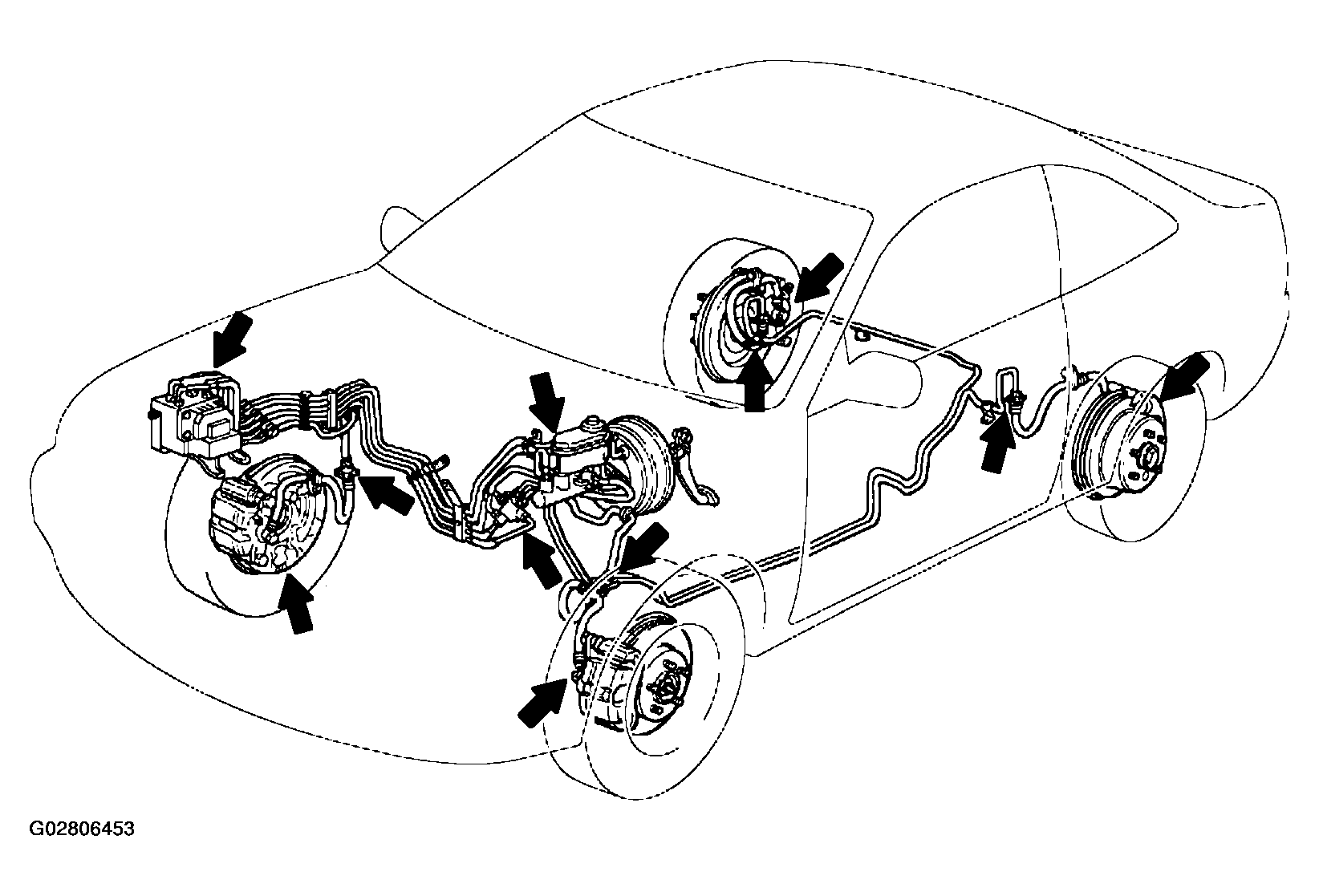

Fig 1: Identifying Fluid Leakage Check Points

G02806453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
