Security Mode Triggering

While ARMED, the RS3000 will TRIGGER (vehicle's horn sounding, exterior lights flashing, and starter disabled) when any of the following events occurs:

Abrupt striking on the vehicle's window(s).*

Breaking of a vehicle's window.*

Opening any of the doors.**

Opening the vehicle's trunk or hatch.

Power lost then restored while the system is ARMED.

When TRIGGERED, the RS3000 will flash the exterior and interior lights*** and sound the vehicle's horn in a unique pattern for 57 seconds per TRIGGERING cycle. It will also disable the vehicle's starter until the system is DISARMED by key or REMOTE CONTROL.*

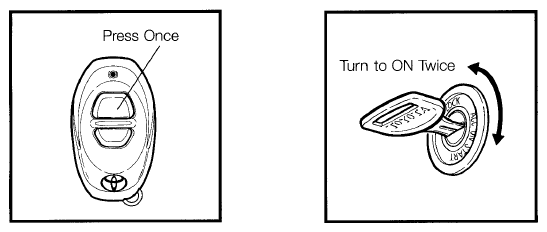

To DISARM the system while TRIGGERING occurs:

Press and release the REMOTE CONTROL'S top button once.

OR

Insert the ignition key, and turn it "ON→ACC→ON".

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

* The GLASS BREAKAGE SENSOR TRIGGERS the system in two ways: When the sound of tapping, or breaking of glass is detected, the system will first activate the vehicle's horn and exterior lights for 20 seconds as a warning; the vehicle's starter is not disabled. If the glass is tapped on or broken within 5 seconds of the first detection, the system will TRIGGER for 57 seconds; the vehicle's starter is disabled.

**When PASSIVELY ARMED, the ENTRANCE DELAY (factory set to 15 seconds) must elapse before the system will TRIGGER when a door is opened.

***In some vehicles, the interior lights will not flash, but instead just light up during TRIGGERING.
