Abs Actuator: Removal

REMOVE RIGHT FRONT FENDER LINER
REMOVE A/C TUBE CLAMP BRACKET BOLT
DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS & TRAC actuator.

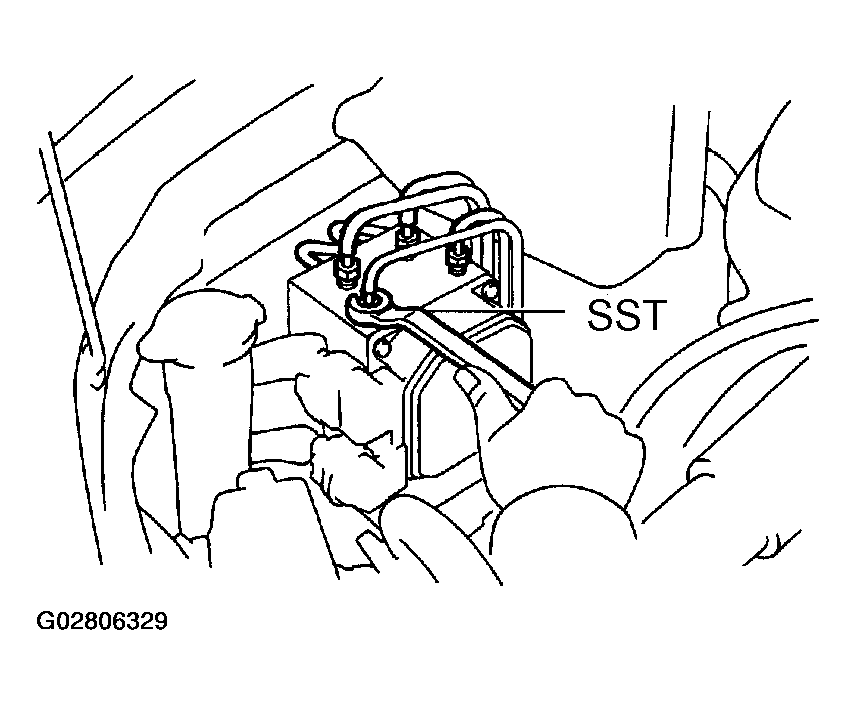

Fig 1: Disconnecting Brake Lines From ABS & TRAC Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09751-36011

Torque:

10 mm nut 15 N.m (155 kgf.cm, 11 ft.lbf)

12 mm nut 20 N.m (200 kgf.cm, 14 ft.lbf)
REMOVE ABS & TRAC ACTUATOR ASSEMBLY
1. Disconnect the 2 connectors.
2. Remove the 2 blots, 2 nuts and ABS & TRAC actuator assembly.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
REMOVE ABS & TRAC ACTUATOR
1. Remove the 2 nuts and ABS & TRAC actuator from actuator bracket.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
2. Remove the 2 holders and 3 cushions from the ABS & TRAC actuator.
