On-Vehicle Inspection
- In case of using hand-held tester:
INSPECT ACTUATOR
- Connect the TOYOTA hand-held tester.

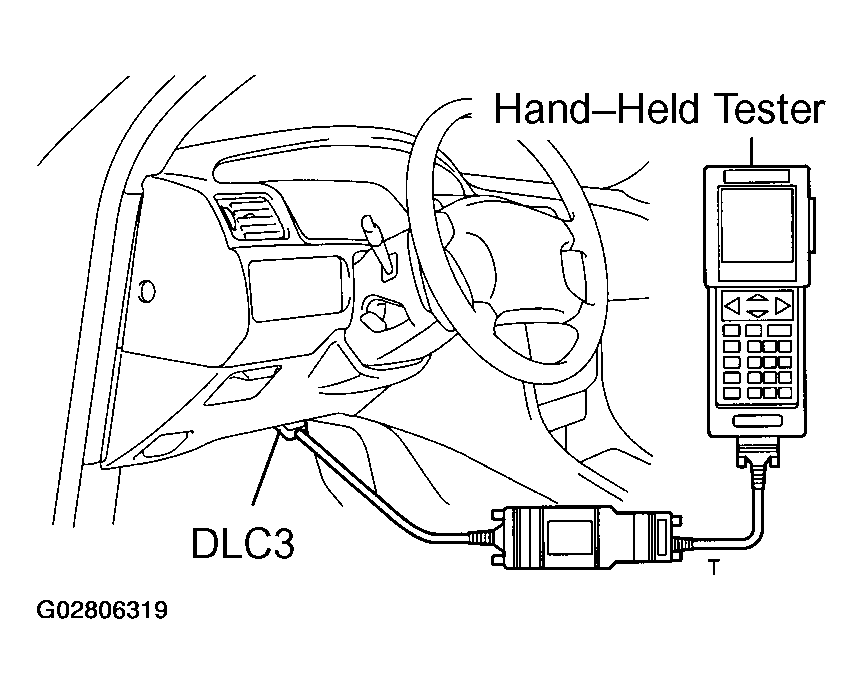

- Connect the hand-held tester to the DLC3.
- Start the engine and run it at idle.
- Select the ACTIVE TEST mode on the hand-held tester.
- Please refer to the hand-held tester operator's manual for further details.
- Inspect the actuator motor operation.
- With the motor relay ON, check the actuator motor operation noise.
- Turn the motor relay OFF.
- Depress the brake pedal and hold it for about 15 seconds. Check that the brake pedal cannot be depressed.
- With the motor relay ON, check that the pedal does not pulsate.NOTE: Do not keep motor relay ON for more than 5 seconds continuously. When operating it continuously, set the interval of more than 20 seconds.
- Turn the motor relay OFF and release the brake pedal.
- Inspect the right front wheel operation.NOTE: Never turn ON the solenoid which is not described below.
- With the brake pedal depressed, perform the following operations.
- Turn the SFRH and SFRR solenoid ON simultaneously, and check that the pedal cannot be depressed.NOTE: Do not keep solenoid ON for more than 10 seconds continuously. When operating it continuously, set the interval of more than 20 seconds.
- Turn the SFRH and SFRR solenoid OFF simultaneously, and check that the pedal can be depressed.
- Turn the motor relay ON, and check that the pedal returns.NOTE: Do not keep motor relay ON for more than 5 seconds continuously. When operating it continuously, set the interval of more than 20 seconds.
- Turn the motor relay OFF and release the brake pedal.
- Inspect the other wheel operation.
As in the same procedure, check the solenoids of other wheels.
HINT:
Left front wheel: SFLH, SFLR
Right rear wheel: SRRH, SRRR
Left rear wheel: SRLH, SRLR
- Connect the TOYOTA hand-held tester.
- In case of not using hand-held tester:
INSPECT ACTUATOR
HINT:
Using the ABS actuator checker (SST), check the operation of the actuator. If the actuator does not operate, check the operation of sub-wire harness G according to the instructions on ABS & TRAC Solenoid Relay Circuit CIRCUIT DESCRIPTION and ABS & TRAC Motor Relay Circuit CIRCUIT DESCRIPTION . If the solenoid and/or pump motor relay are abnormal, replace the relay and inspect the actuator operation again.
- Inspect battery positive voltage.
Battery voltage: 10 - 14 V

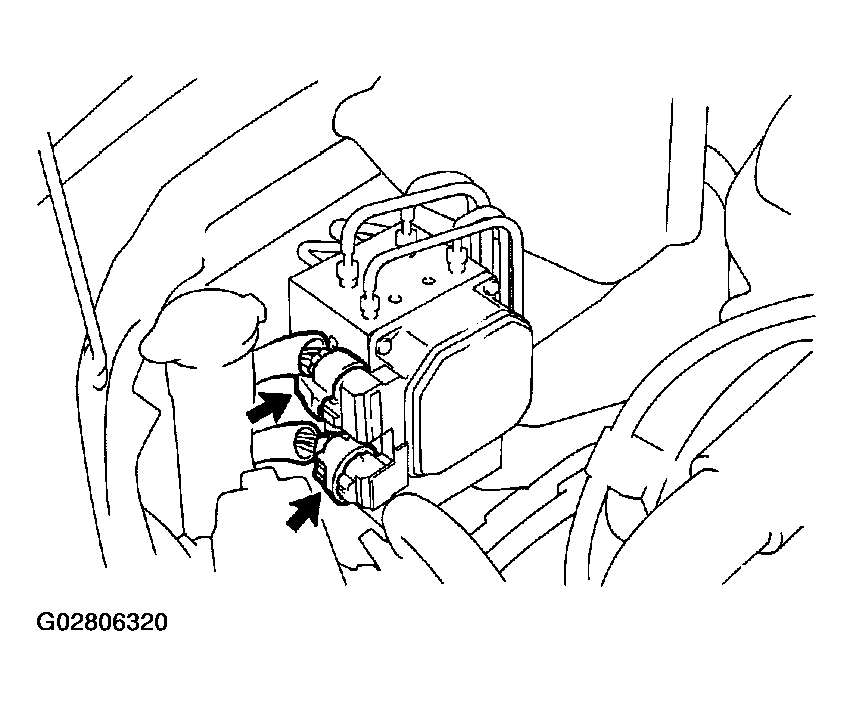

- Disconnect the 2 connectors from the actuator.
- Connect the ABS actuator checker (SST).

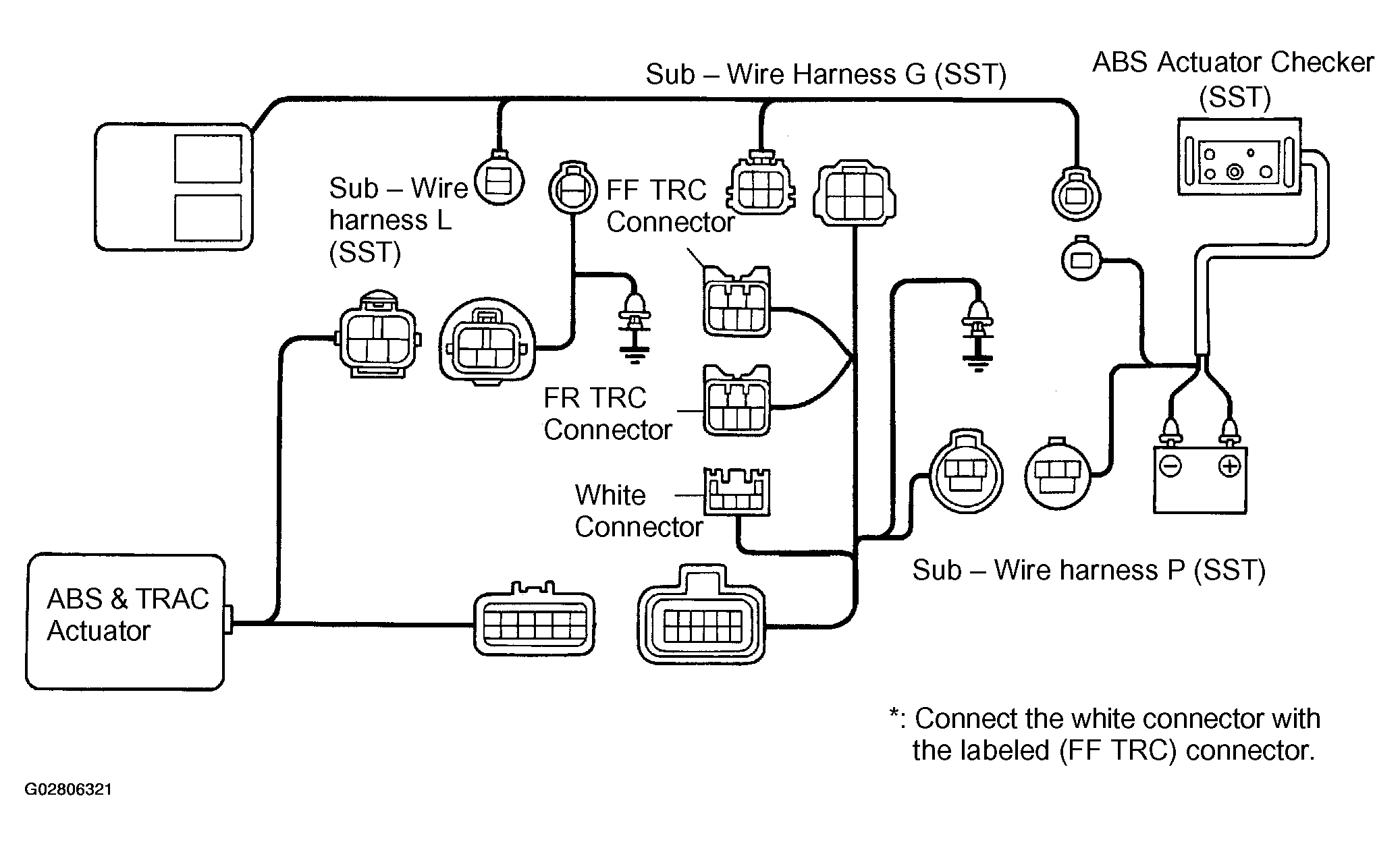

- Connect the actuator checker (SST) to the actuator side wire harness via the sub-wire harness (SST), as shown.
SST 09990-00150, 09990-00250, 09990-00360, 09990-00450
- Connect the red cable of the checker to the battery positive (+) terminal and black cable to the negative (-) terminal. Connect the black cable of the sub-wire harness to the battery negative (-) terminal or body ground.
- Place the "SHEET A" (SST) on the actuator checker.
SST 09990-00163
- Connect the actuator checker (SST) to the actuator side wire harness via the sub-wire harness (SST), as shown.
- Inspect the brake actuator operation.
- Start the engine, and run it at idle.
- Turn the selector switch of the actuator checker to "FRONT RH" position.
- Push and hold in the MOTOR switch for a few seconds.
- Depress the brake pedal and hold it until step (g) is completed.

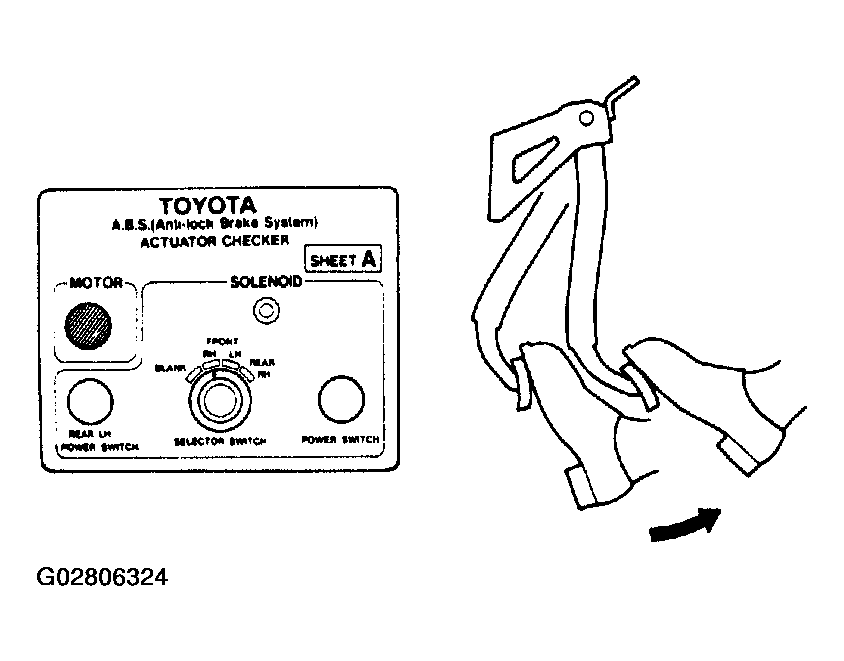

- Push the POWER SWITCH, and check that the brake pedal does not go down.
NOTE: Do not keep the POWER SWITCH pushed down for more than 10 seconds.

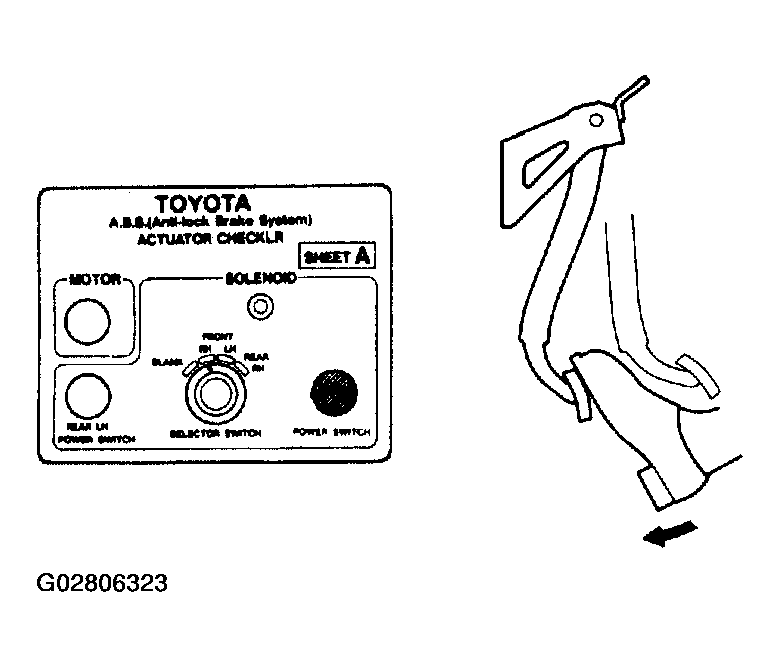

- Release the switch, and check that the pedal goes down.

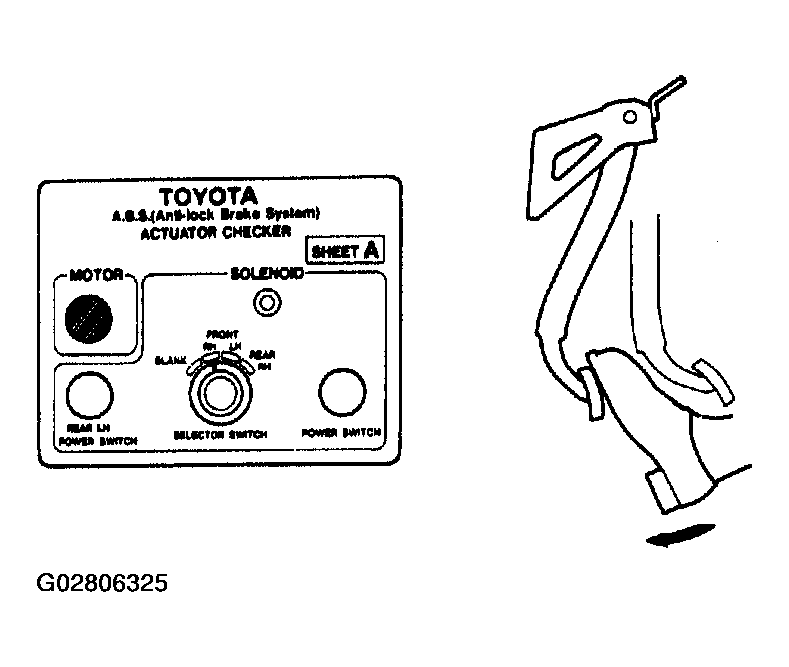

- Push and hold in the MOTOR switch for a few seconds, and check that the pedal returns.
- Release the brake pedal.
- Push and hold in the MOTOR switch for a few seconds.
- Depress the brake pedal and hold it for about 15 seconds. As you hold the pedal down, push the MOTOR switch for a few seconds. Check that the brake pedal does not pulsate.
- Release the brake pedal.
- Turn the selector switch to "FRONT LH" position.
- Repeat (c) to (j), checking the actuator operation similarly.
- Similarly, inspect "REAR RH" and "REAR LH" position.
HINT:

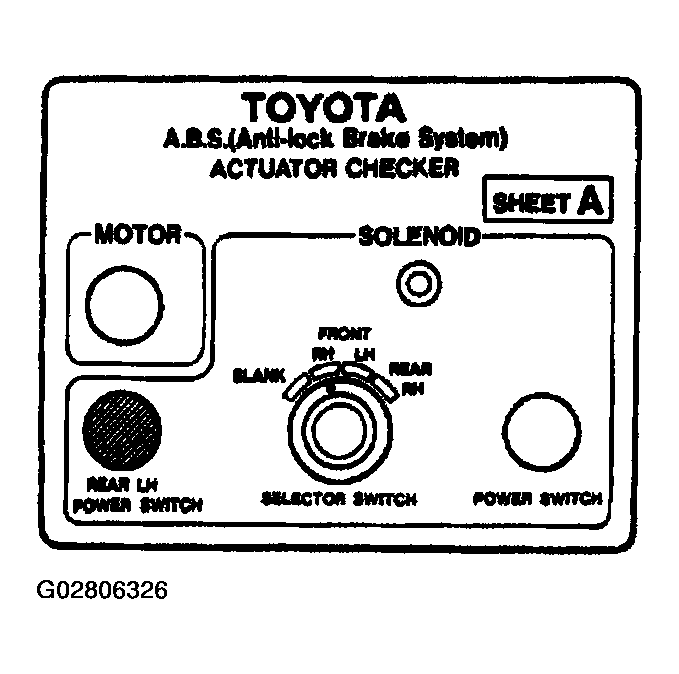

When inspecting "REAR LH" position, push the REAR LH switch instead of the POWER SWITCH, and you can inspect in any selector switch position.

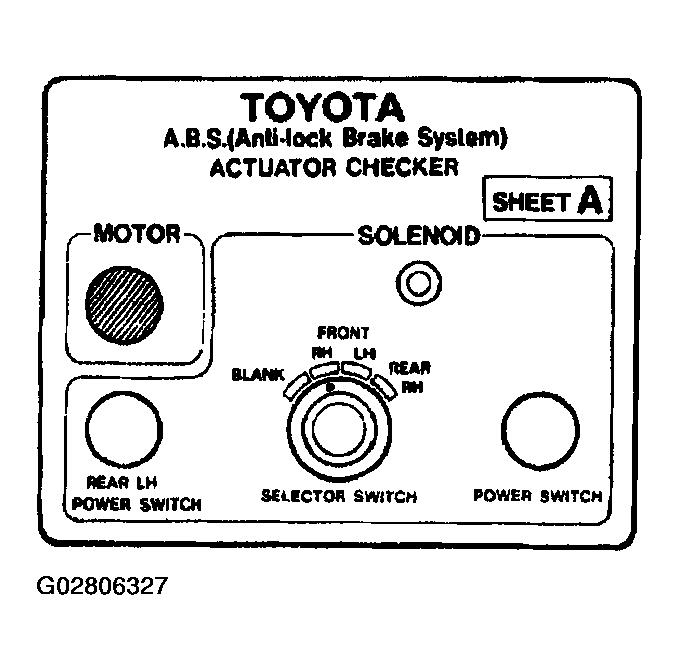

- Push and hold in the MOTOR switch for a few seconds.
- Stop the engine.
- Remove the "SHEET A" (SST) and disconnect the actuator checker (SST) and sub-wire harness (SST) from the actuator.
SST 09990-00150, 09990-00163, 09990-00250, 09990-00360, 09990-00450
- Connect the 2 connectors to the actuator.
- Clear the DTC (See PRE-CHECK
).
HINT:
Using the ABS actuator checker (SST), check the operation of the actuator. If the actuator does not operate, check the operation of sub-wire harness G according to the instructions on ABS & TRAC Solenoid Relay Circuit CIRCUIT DESCRIPTION and ABS & TRAC Motor Relay Circuit CIRCUIT DESCRIPTION . If the solenoid and/or pump motor relay are abnormal, replace the relay and inspect the actuator operation again.
- Inspect battery positive voltage.
