Toyota
>>
2001
>>
Camry CE, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs & Traction Control System -Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

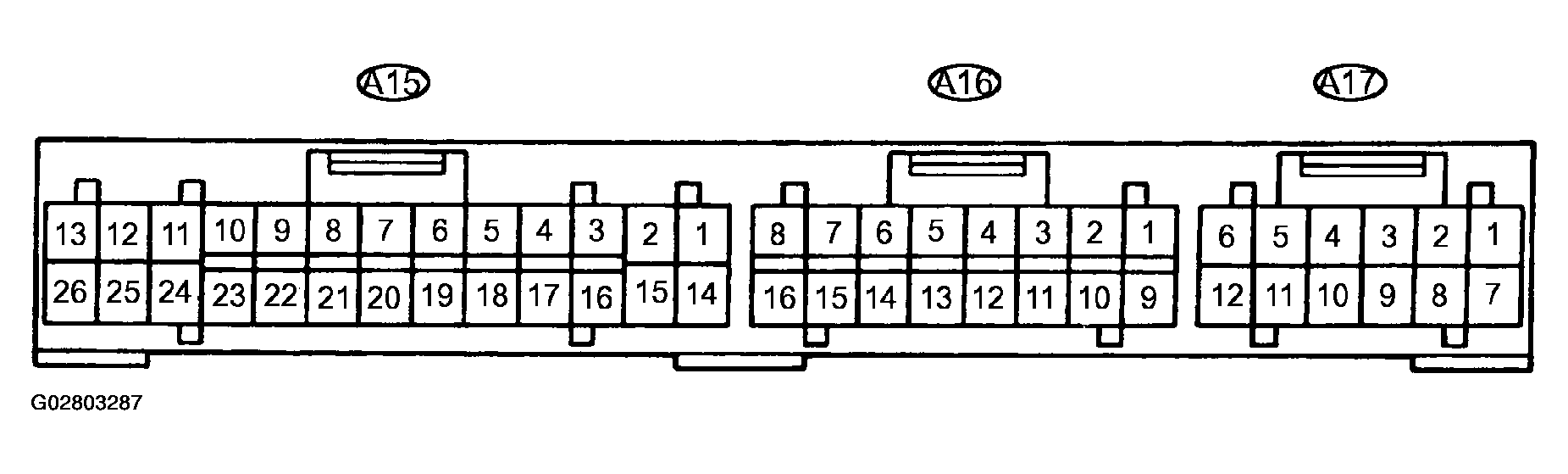

Fig 1: Identifying ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

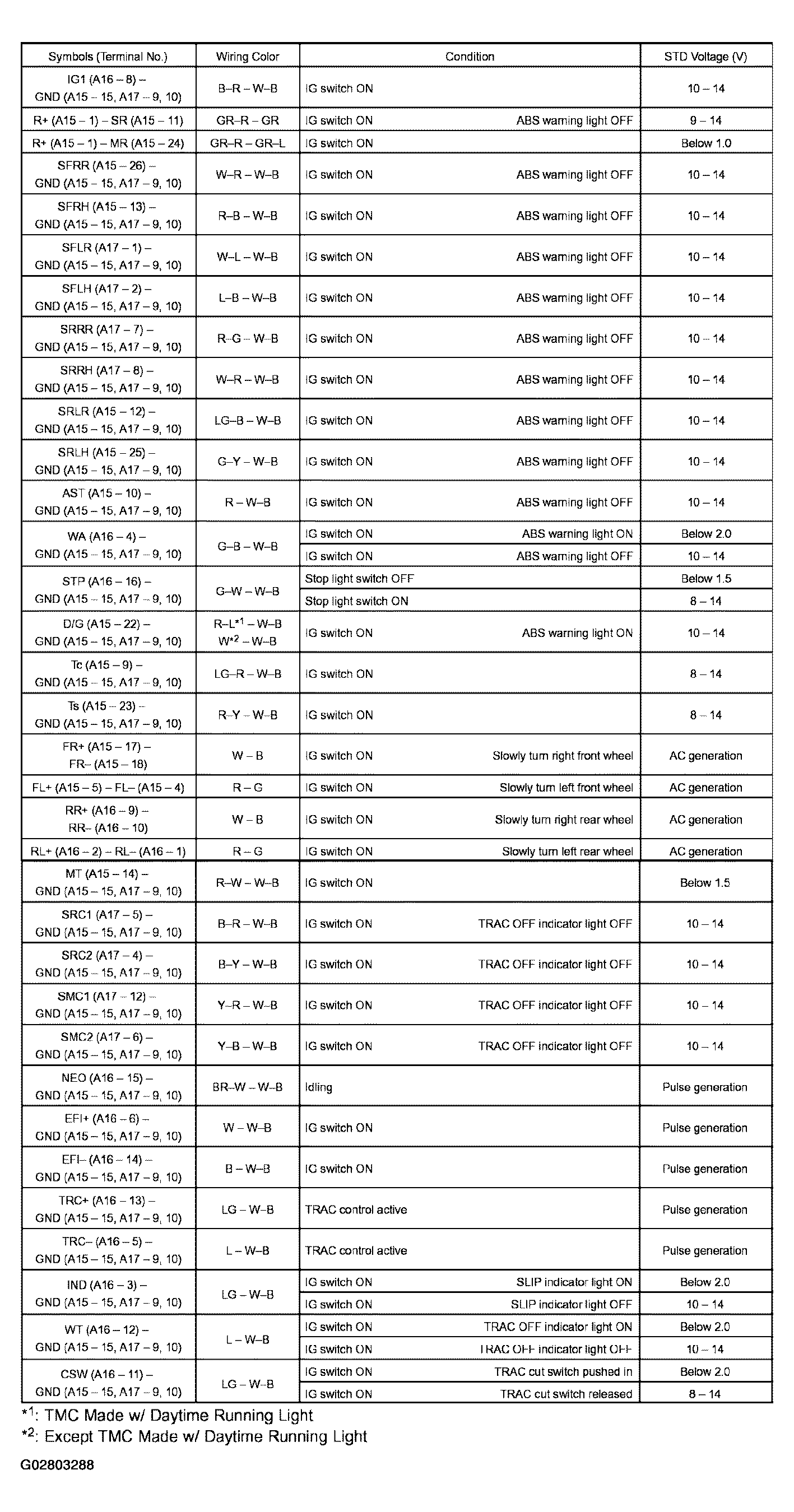

Fig 2: ECU Terminals Functions Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
