Fluid Temperature Sensor (Sequoia): Installation

Coat a NEW "O" ring with ATF and install it onto fluid temperature sensor. Install the fluid temperature sensor. Tighten to specification. Install the connector and install the oil cooler pipe clamps and bolts.

Fig 1: Locating Oil Cooler Pipe Clamps & Bolts (Tacoma & Sequoia)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

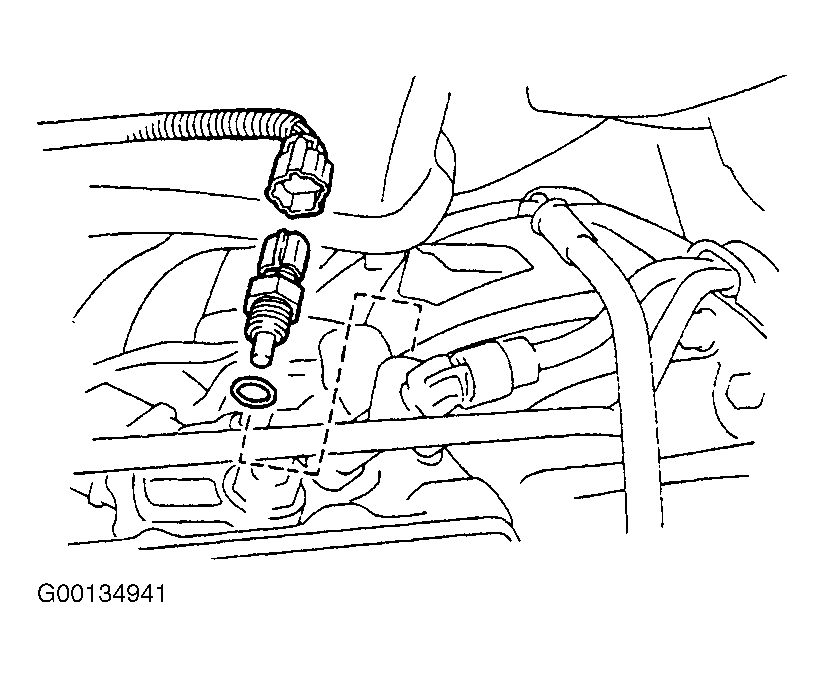

Fig 2: Removing & Installing ATF Fluid Temperature Sensor (Tacoma & Sequoia)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
