Fluid Temperature Sensor (Land Cruiser): Installation

Coat a NEW "O" ring with ATF and install on the fluid temperature sensor. Install the fluid temperature sensor. Tighten the sensor to specification. See TORQUE SPECIFICATIONS . Install the sensor connector and the No. 2 engine undercover.

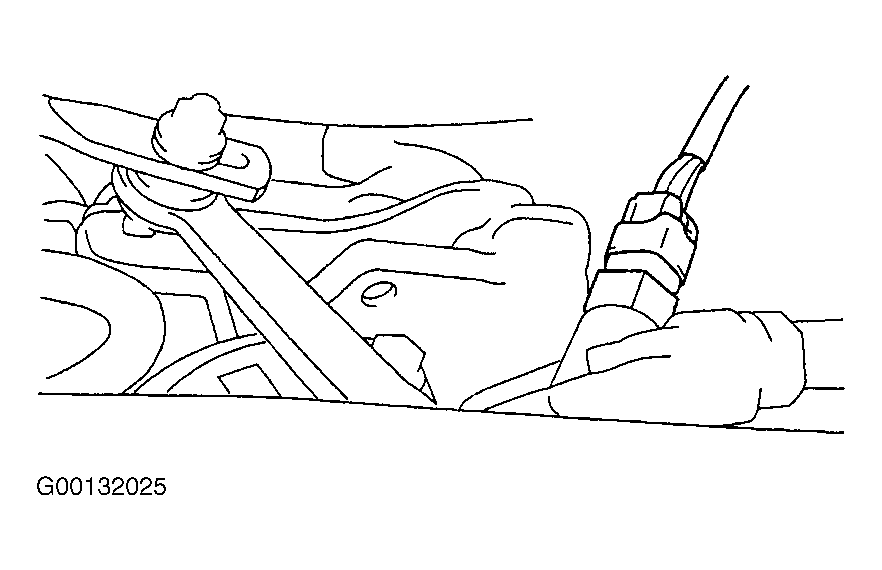

Fig 1: Removing & Installing Fluid Temperature Sensor (Land Cruiser)
G00132025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
