Cooling System (Mechanical): Radiator: Removal

NOTE:

At the time of installation, please refer to the following items.

  • Start the engine, and check for coolant and A/T fluid leaks.
  • Check the A/T fluid level (See CHECKING FLUID LEVELS ).
  1. Remove Battery And Battery Tray
  2. Remove Engine Under Cover
  3. Drain Engine Coolant
  4. Disconnect No. 3 Engine Room Relay Block From Radiator
  5. Disconnect No. 1 Cooling Fan Connector
  6. Disconnect Wire Clamps From No. 1 Fan Shroud
  7. Disconnect No. 2 Cooling Fan Connector
  8. Disconnect No. 1 ECT Switch Wire Connector
  9. Disconnect Wire Clamps From No. 2 Fan Shroud
  10. Disconnect Upper Radiator Hose From Radiator
  11. Disconnect Lower Radiator Hose From Radiator
  12. Disconnect A/T Oil Cooler Hoses From Radiator
  13. Remove Radiator And Cooling Fans Assembly
    1. Remove the 2 bolts and 2 upper supports.

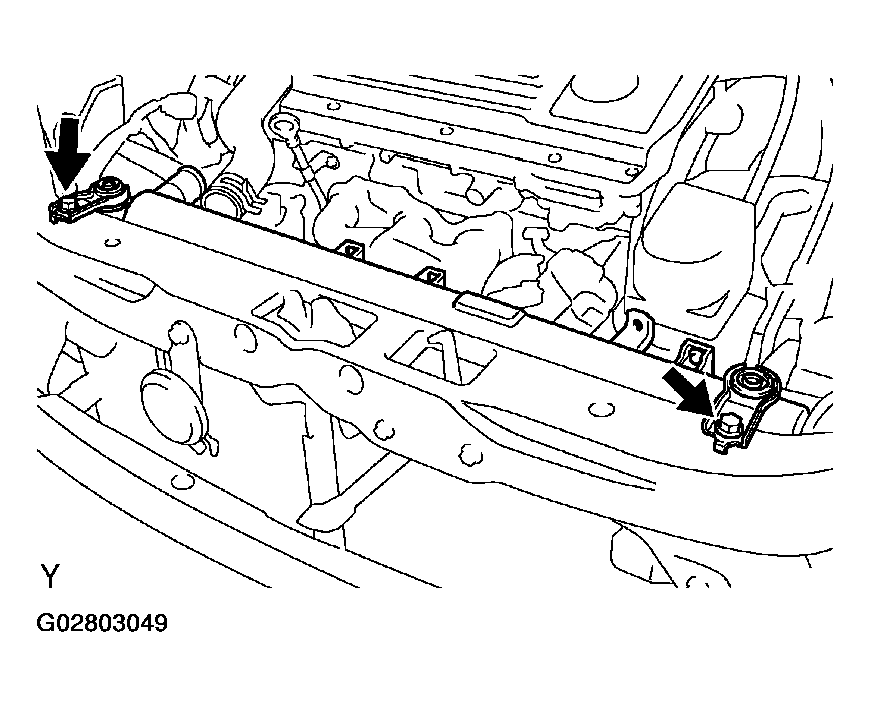

      Fig 1: Locating Bolts For Removal
      G02803049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12.8 N.m (130 kgf.cm, 9 ft.lbf)

    2. Lift out the radiator, and remove the radiator and cooling fans assembly.
    3. Remove the 2 lower supports.
  14. Remove No. 1 ECT Switch
  15. Remove No. 1 Cooling Fan From Radiator

    Remove the 2 bolts and cooling fan.

    1. Torque: 5.0 N.m (50 kgf.cm, 44 in..lbf)
  16. Remove No. 2 Cooling Fan From Radiator

    Remove the 2 bolts and cooling fan.

    1. Torque: 5.0 N.m (50 kgf.cm, 44 in..lbf)
