Cooling System (Mechanical): Radiator: Components

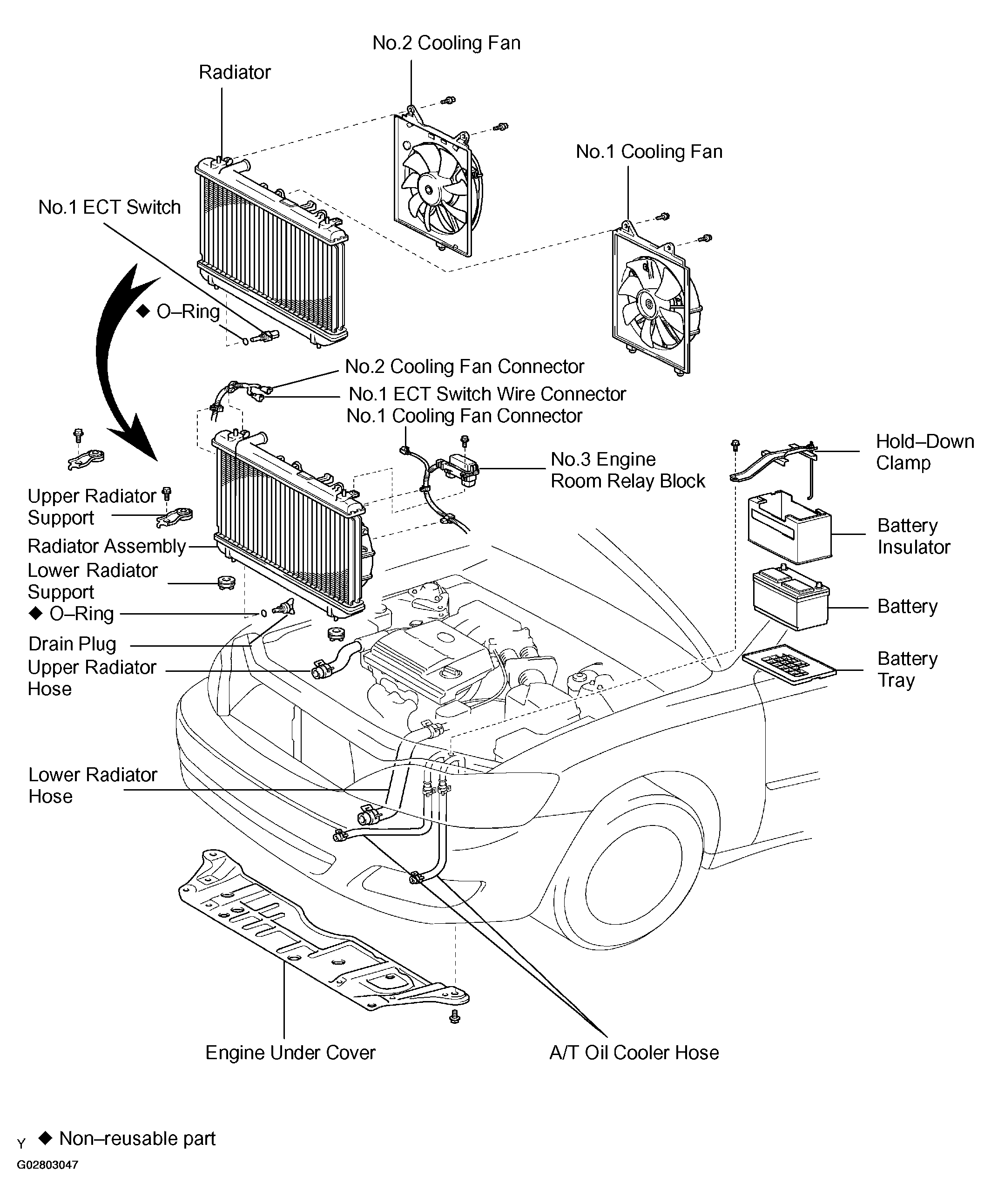

Fig 1: Identifying Components For Radiator Removal
G02803047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

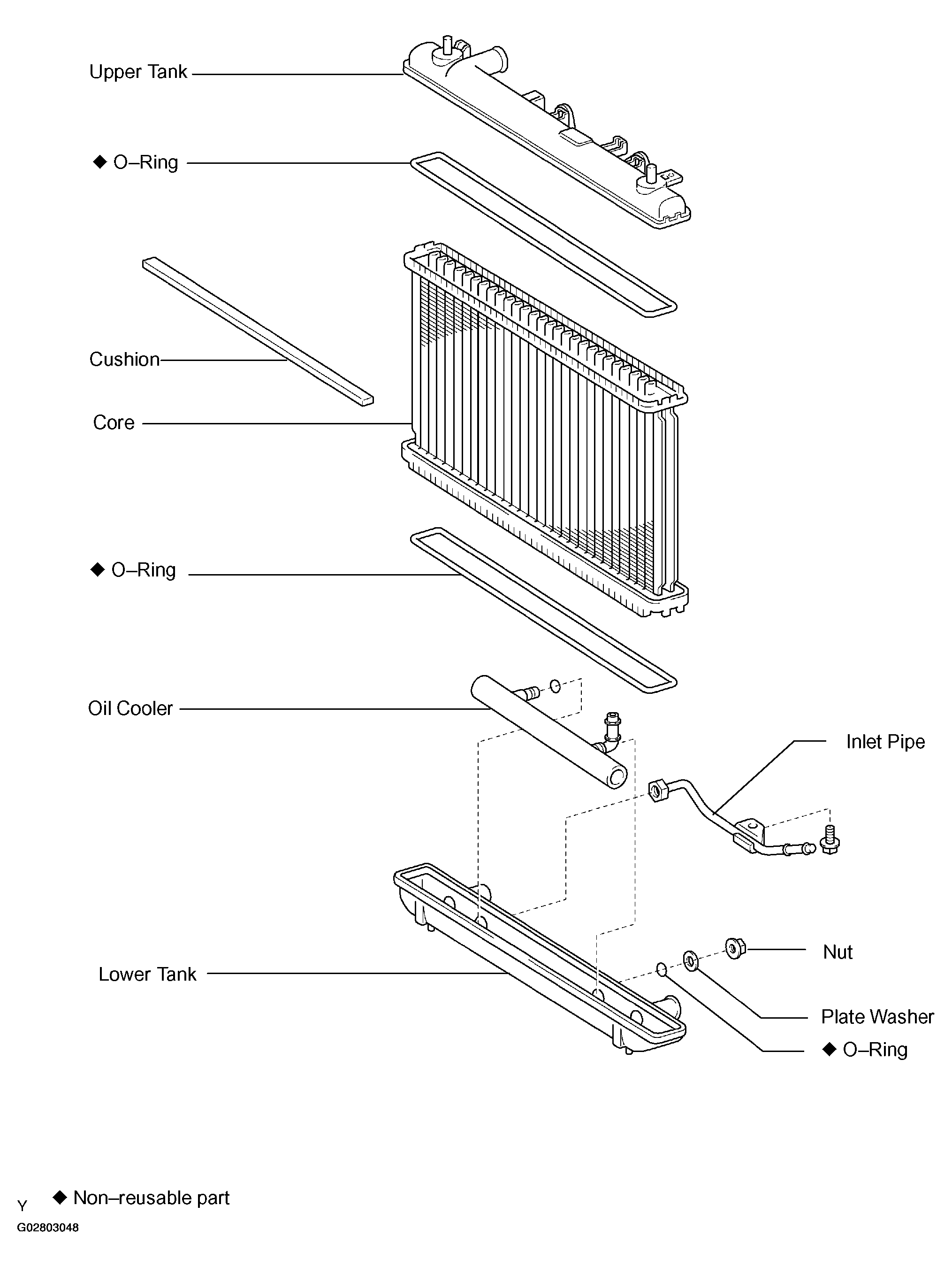

Fig 2: Exploded View Of Radiator
G02803048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
