Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1.

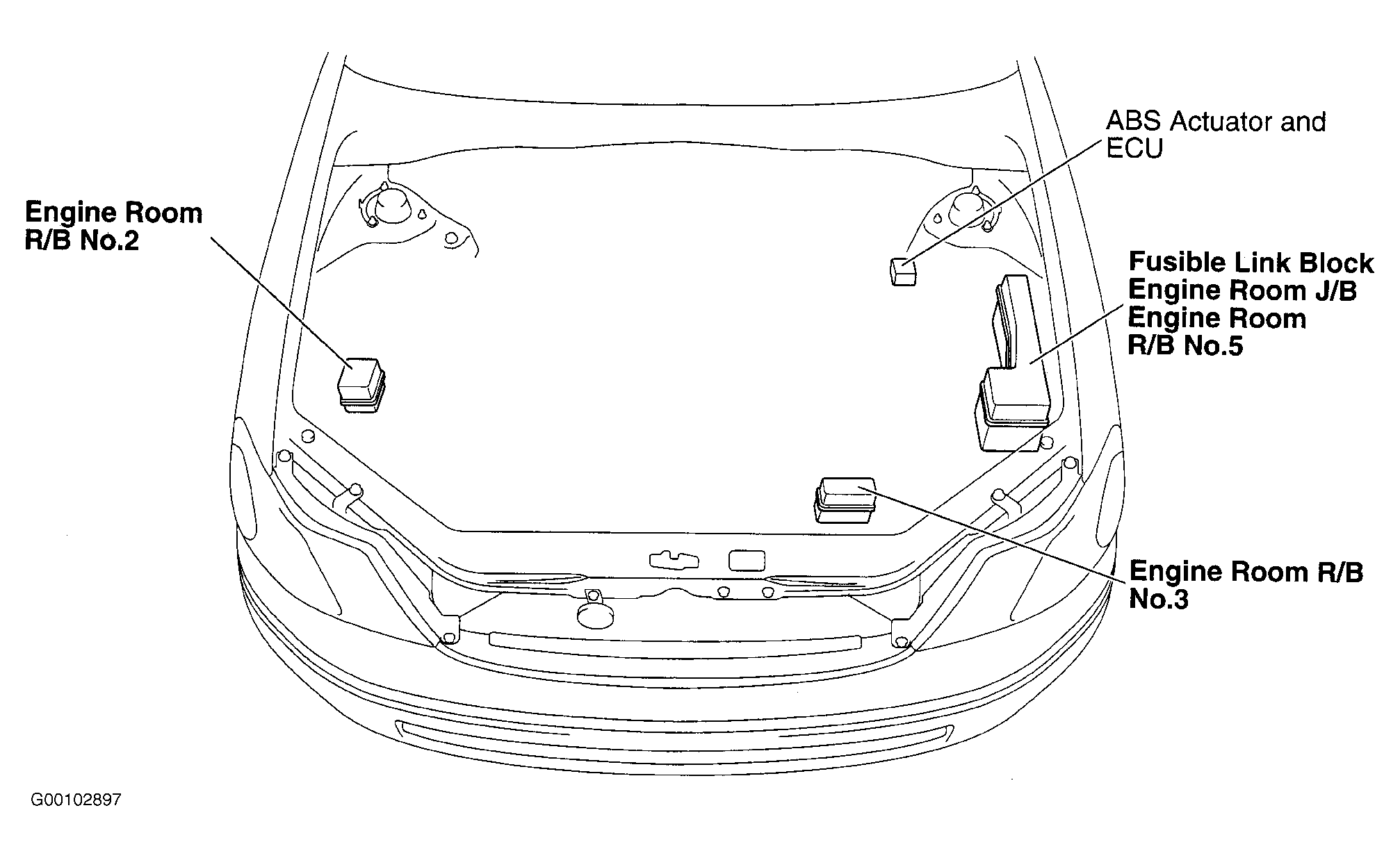

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

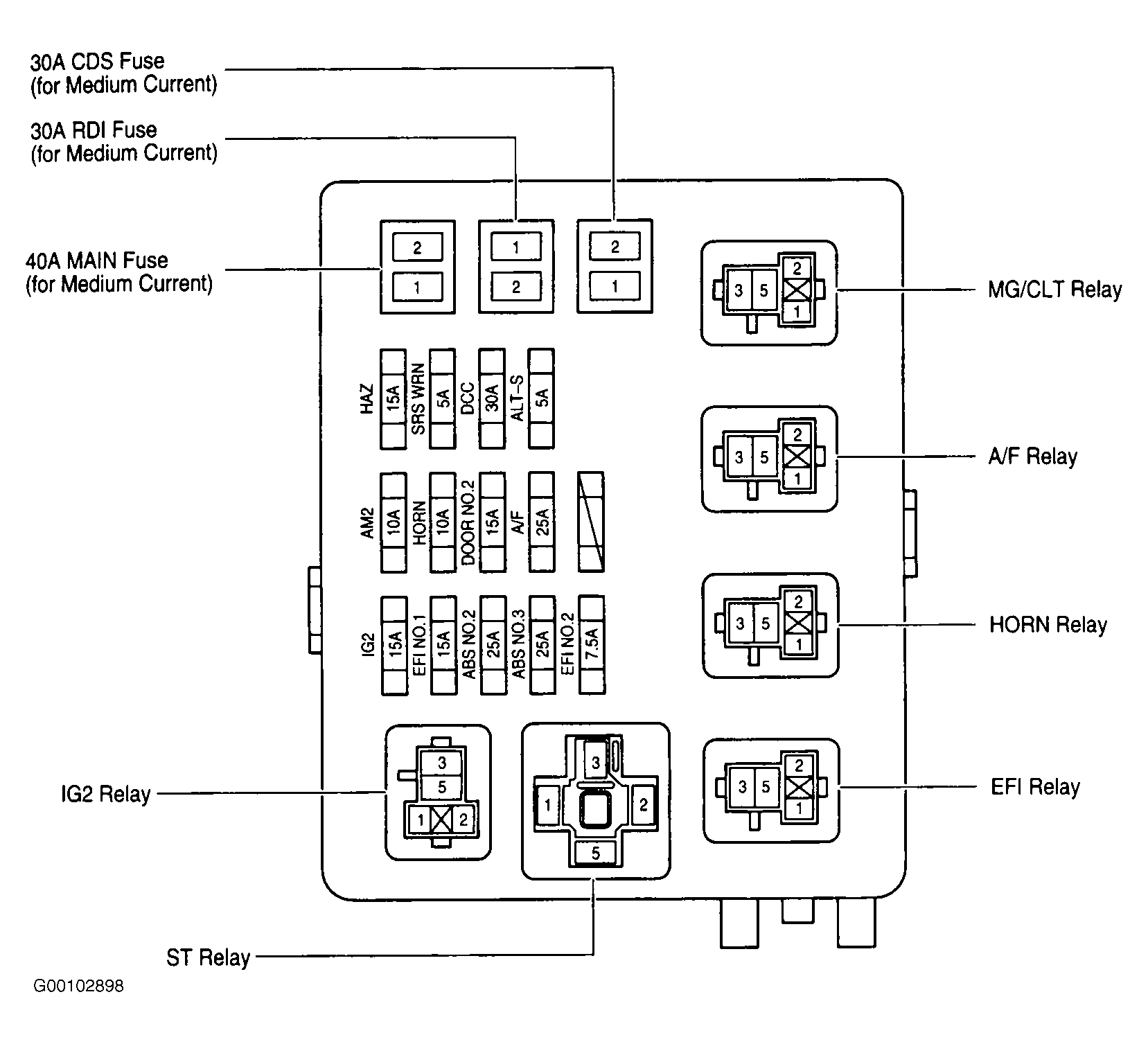

Fig 2: Identifying Engine Room J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

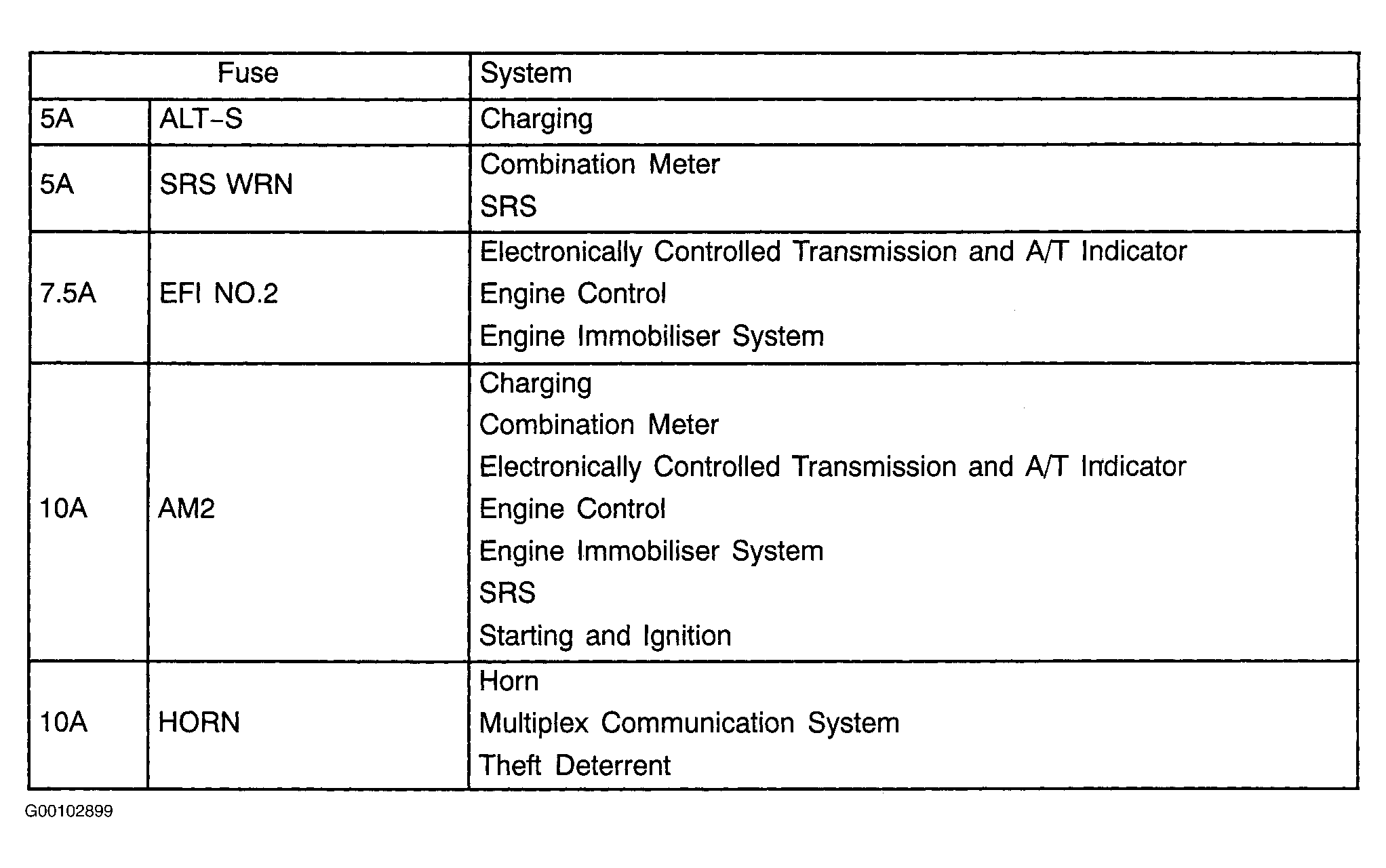

Fig 3: Engine Room J/B Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

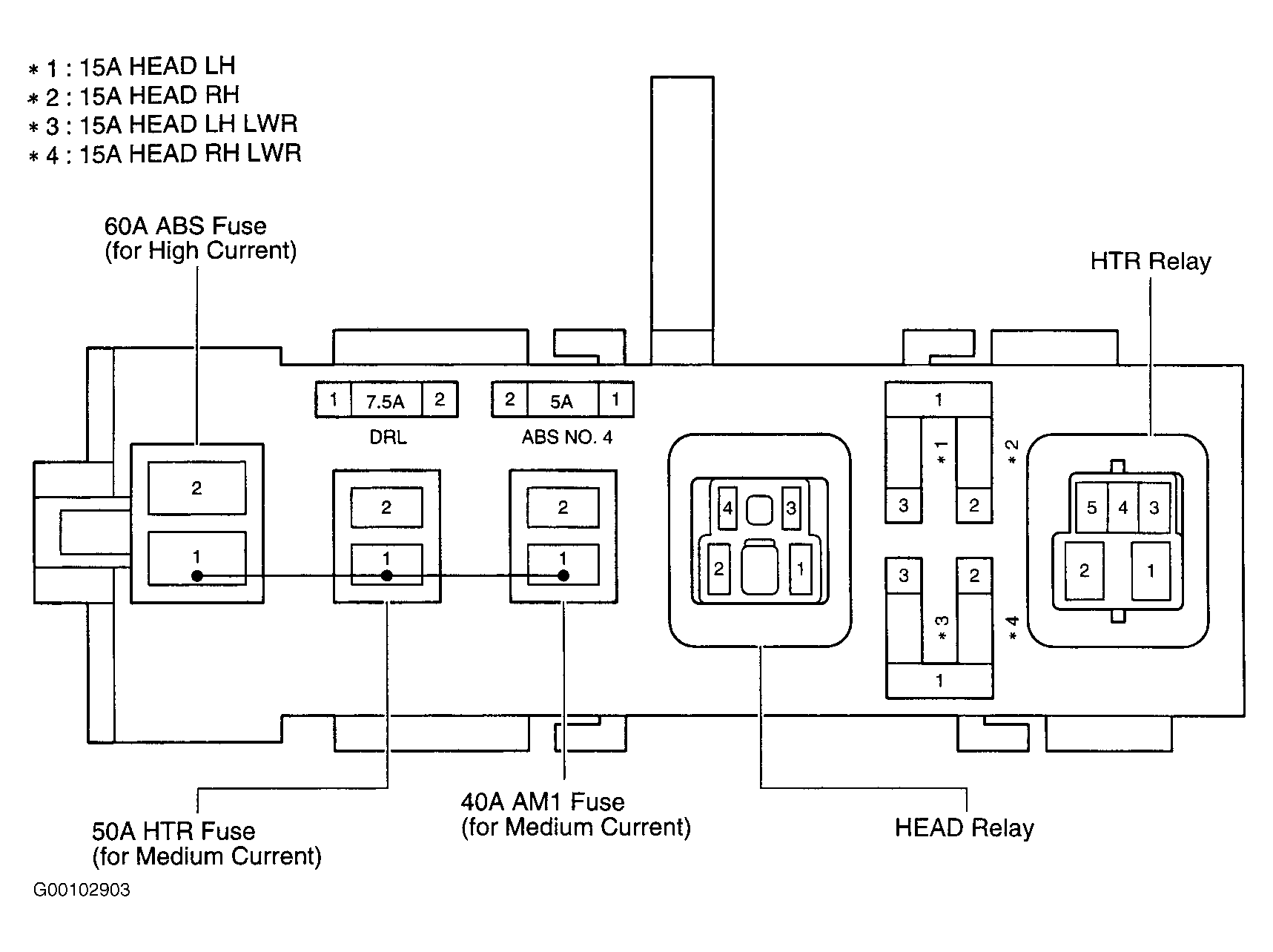

Fig 4: Identifying Engine Room R/B No. 2 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

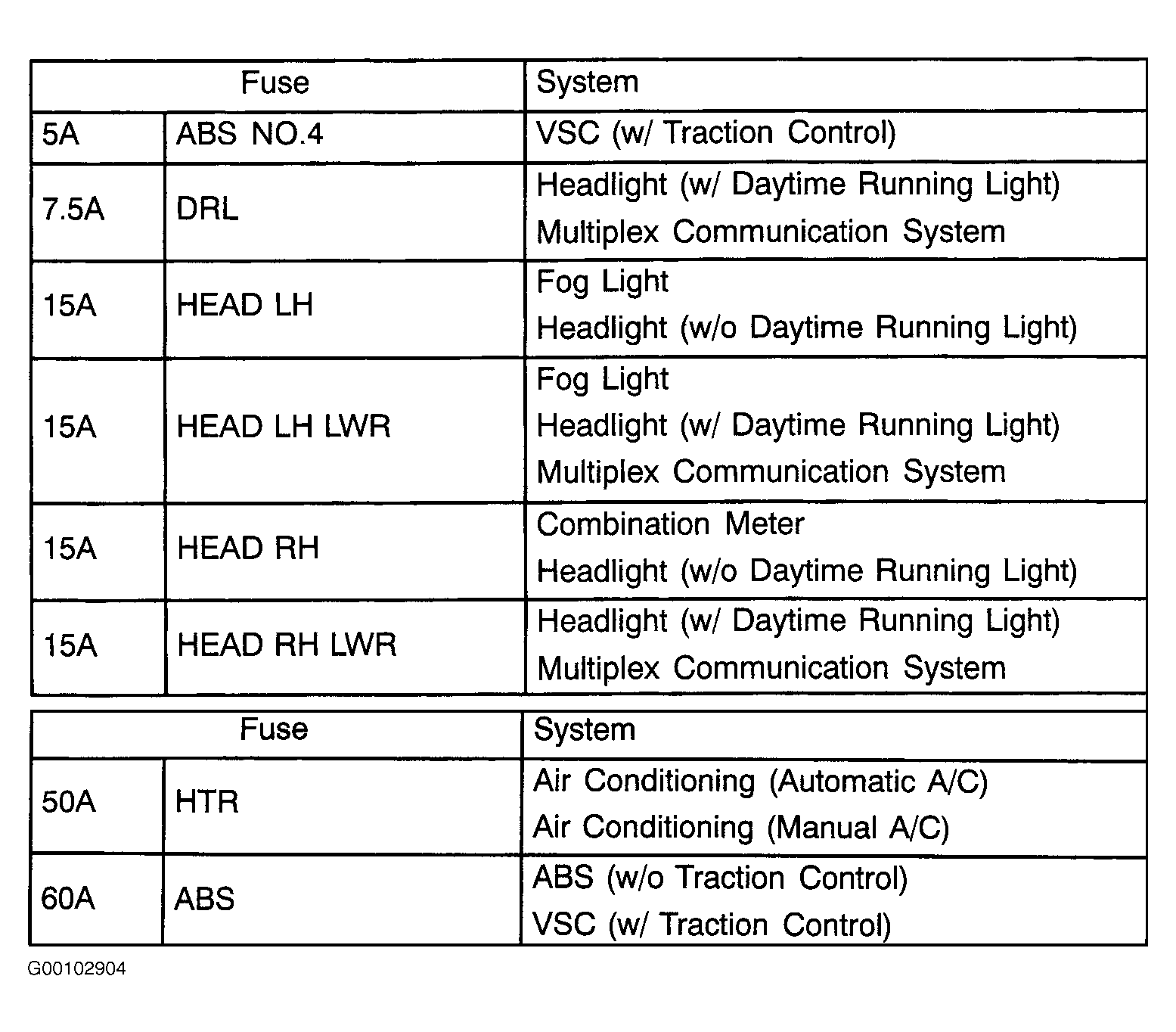

Fig 5: Engine Room R/B No. 2 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

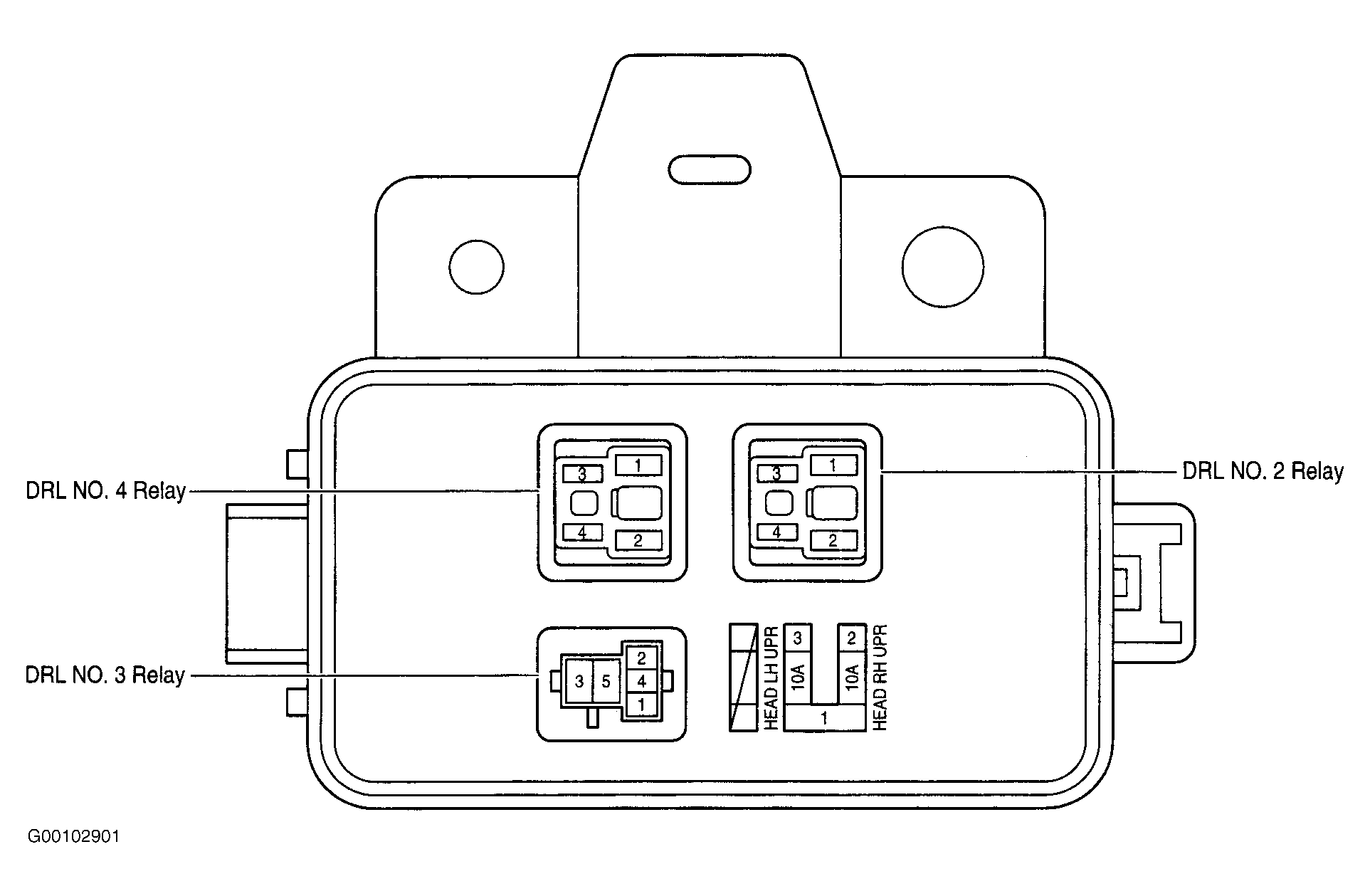

Fig 6: Identifying Engine Room R/B No. 5 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

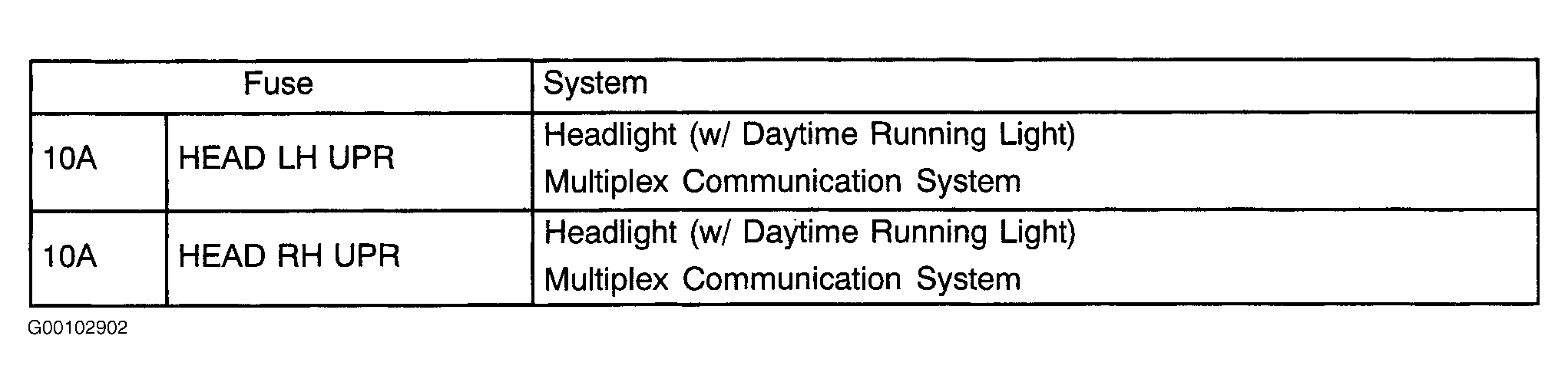

Fig 7: Engine Room R/B No. 5 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

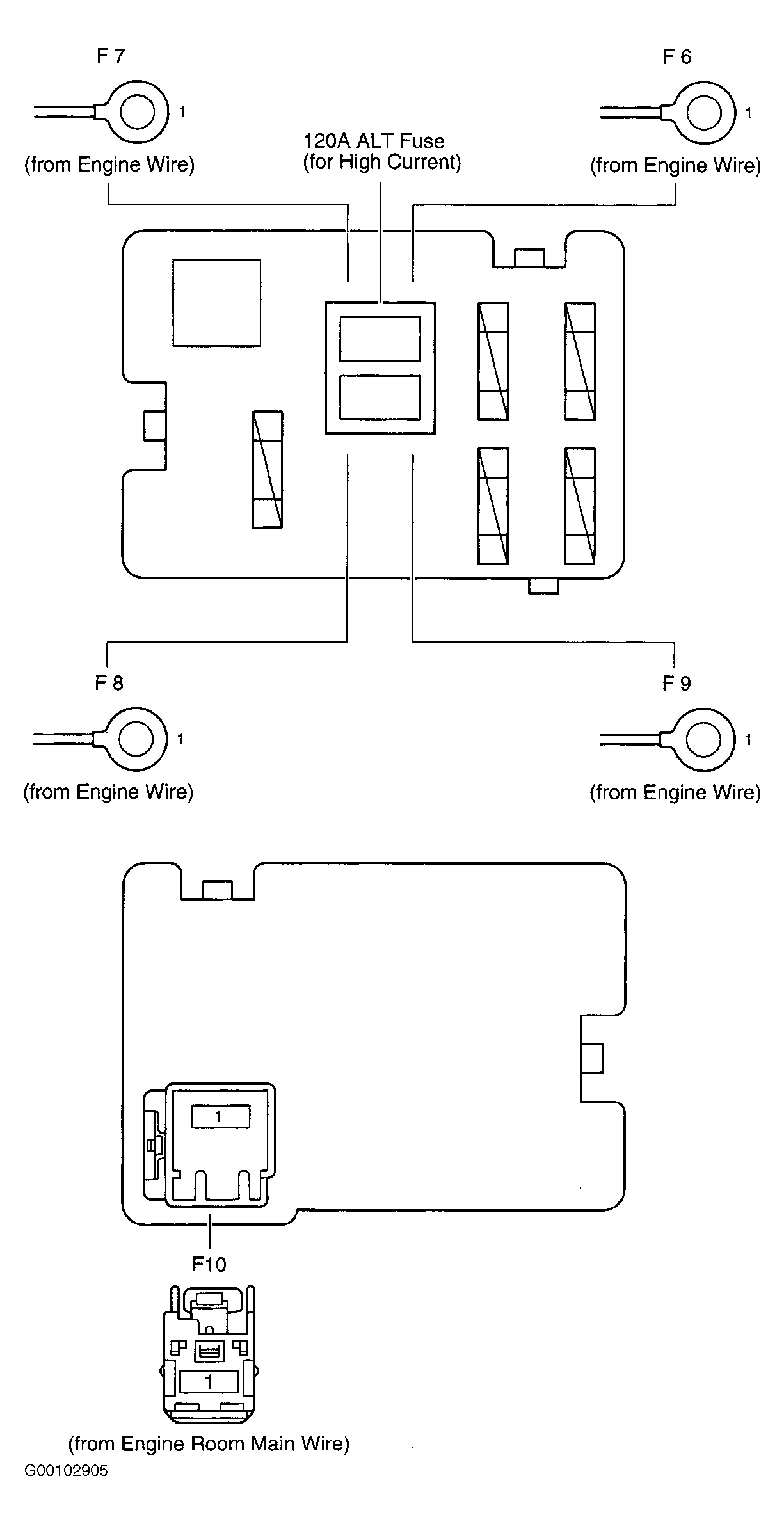

Fig 8: Identifying Fusible Link Block Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

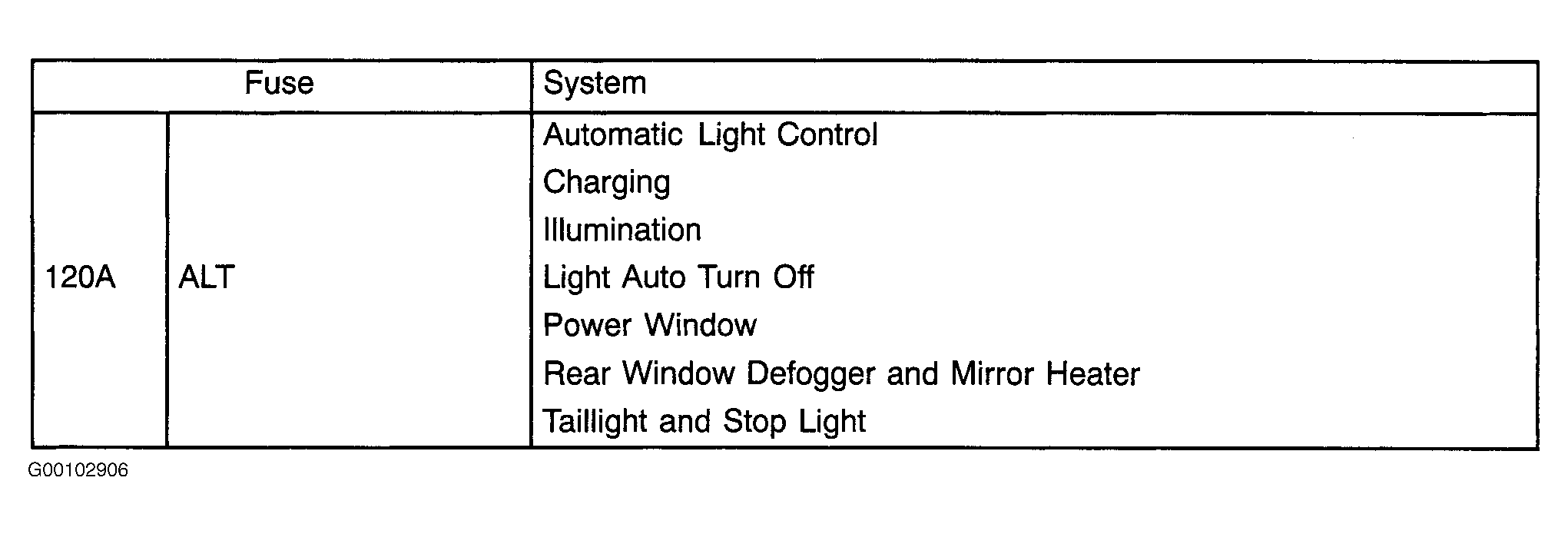

Fig 9: Fusible Link Block Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
