Driver Side J/B

NOTE: Driver side J/B is located under the driver's side of the instrument panel. See Fig 1 or Fig 2 .

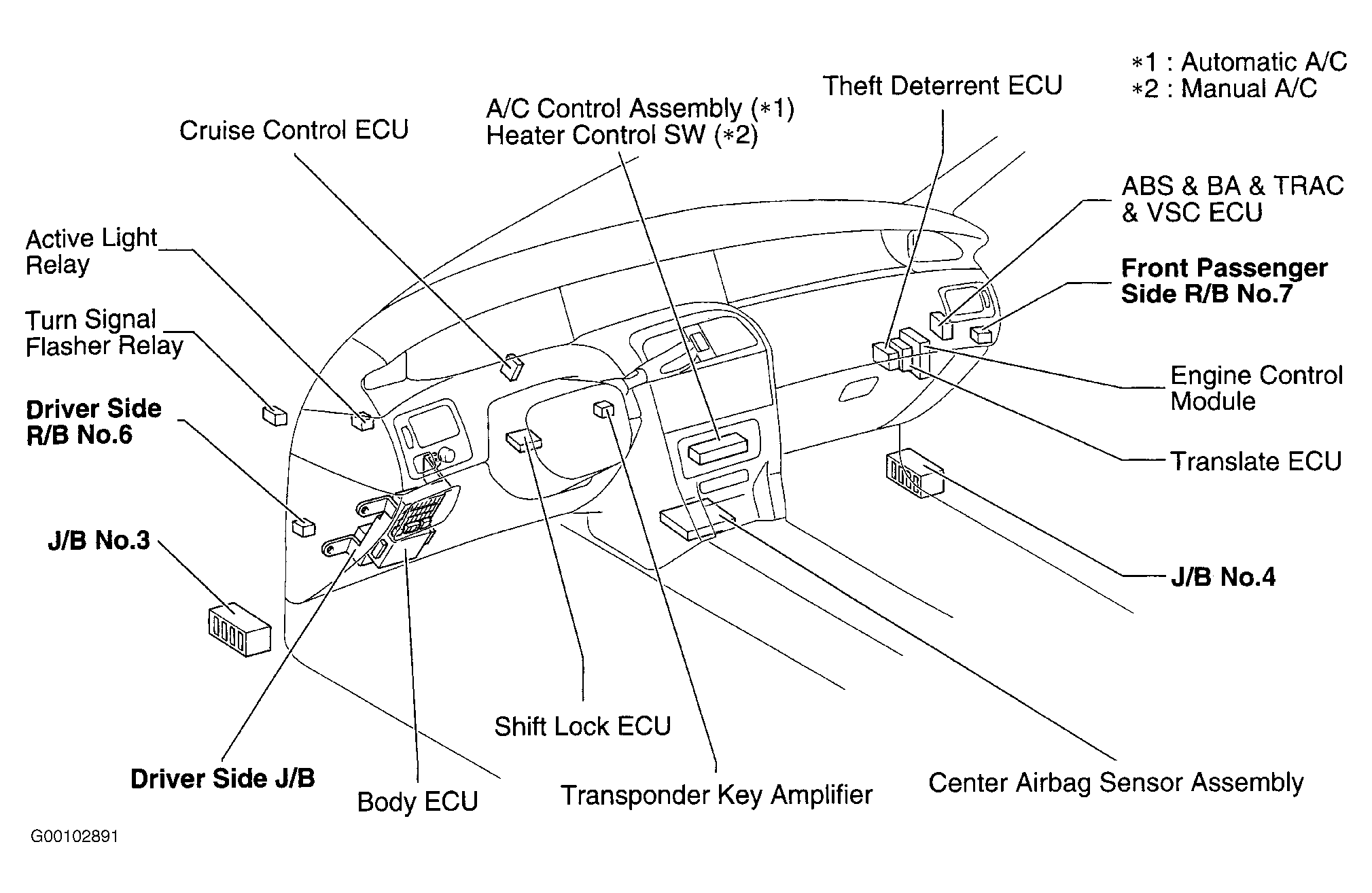

Fig 1: Locating Instrument Panel Electrical Components (Column Shift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

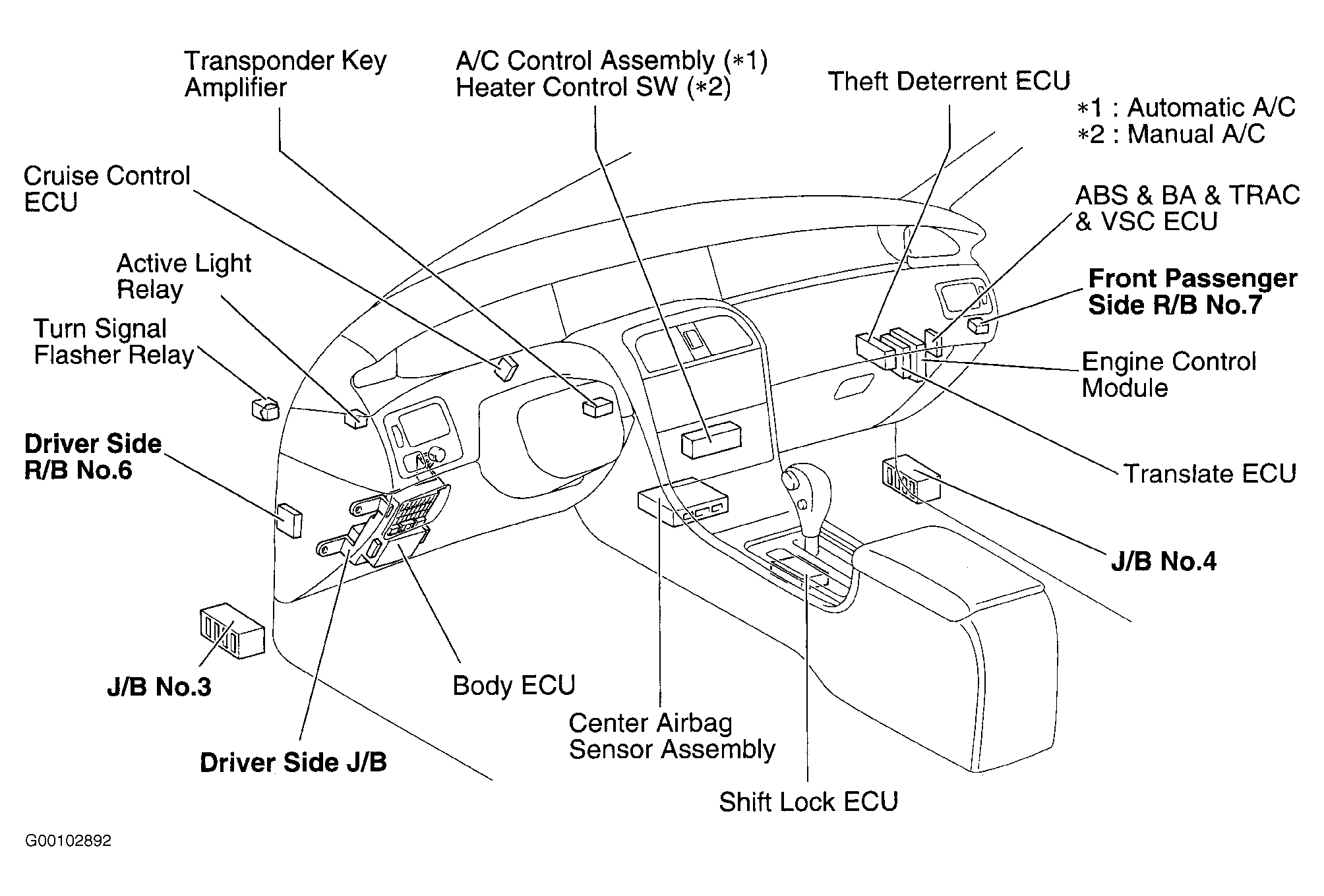

Fig 2: Locating Instrument Panel Electrical Components (Floor Shift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

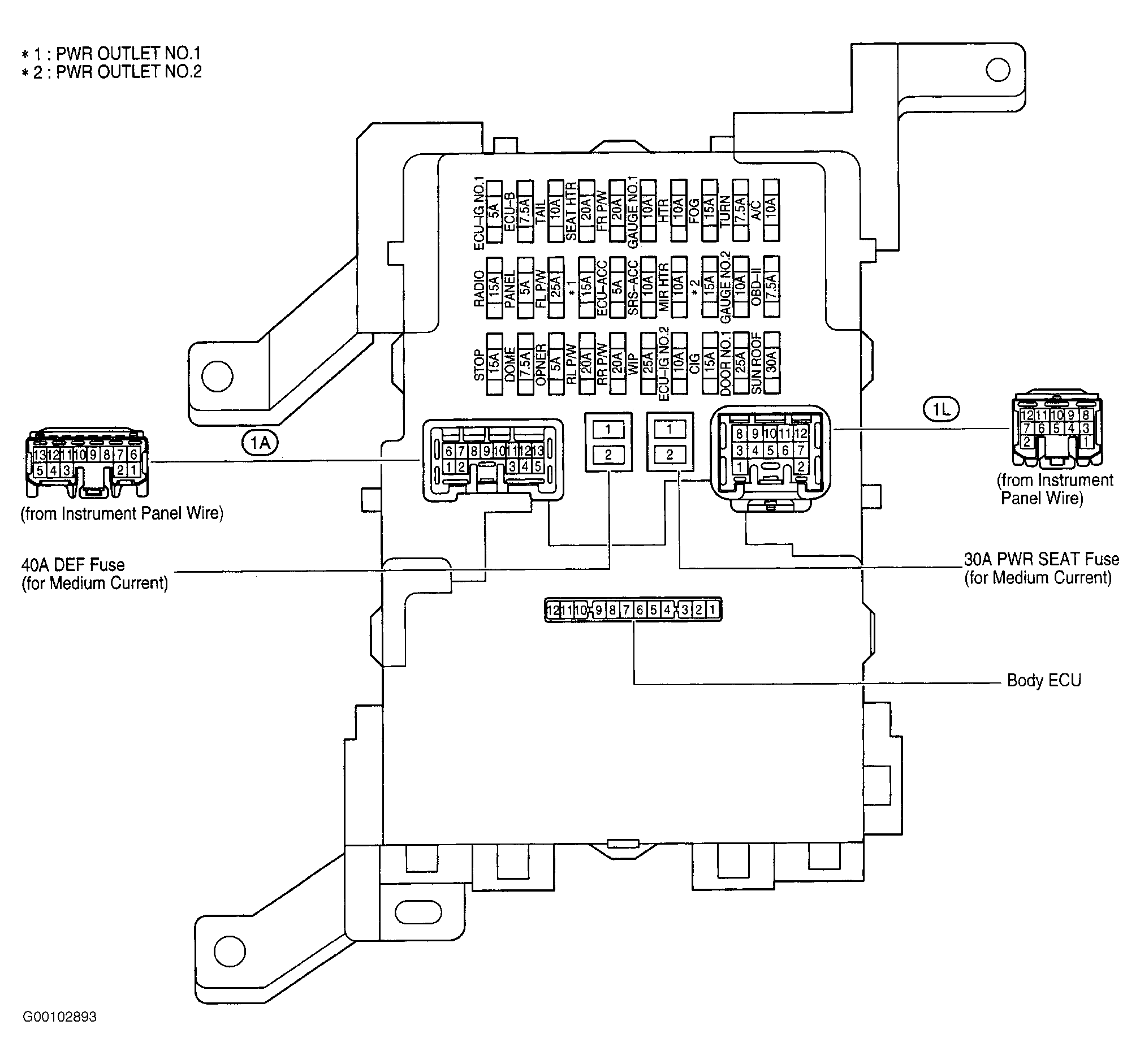

Fig 3: Identifying Driver Side J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

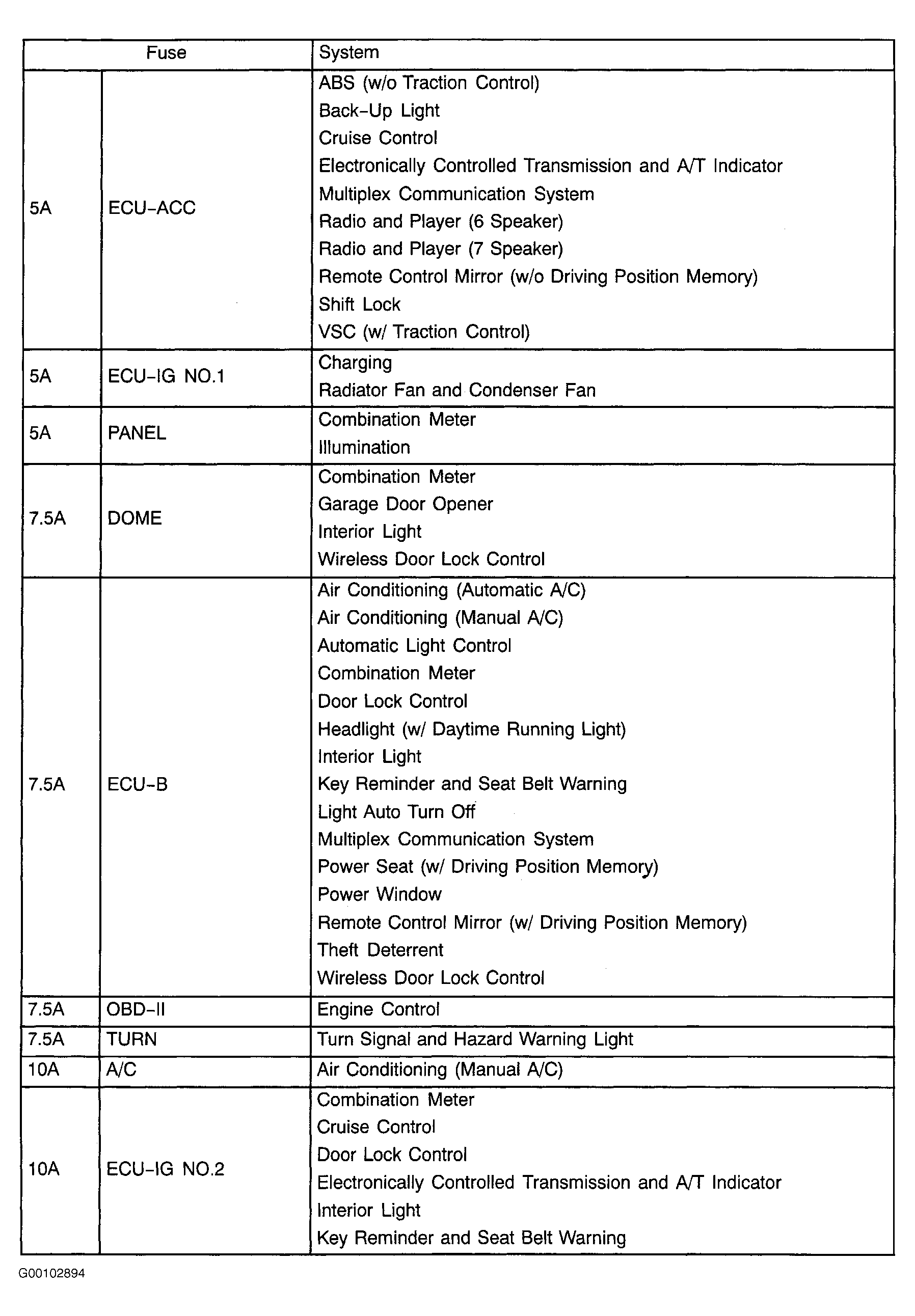

Fig 4: Driver Side J/B Legend (1 Of 3)

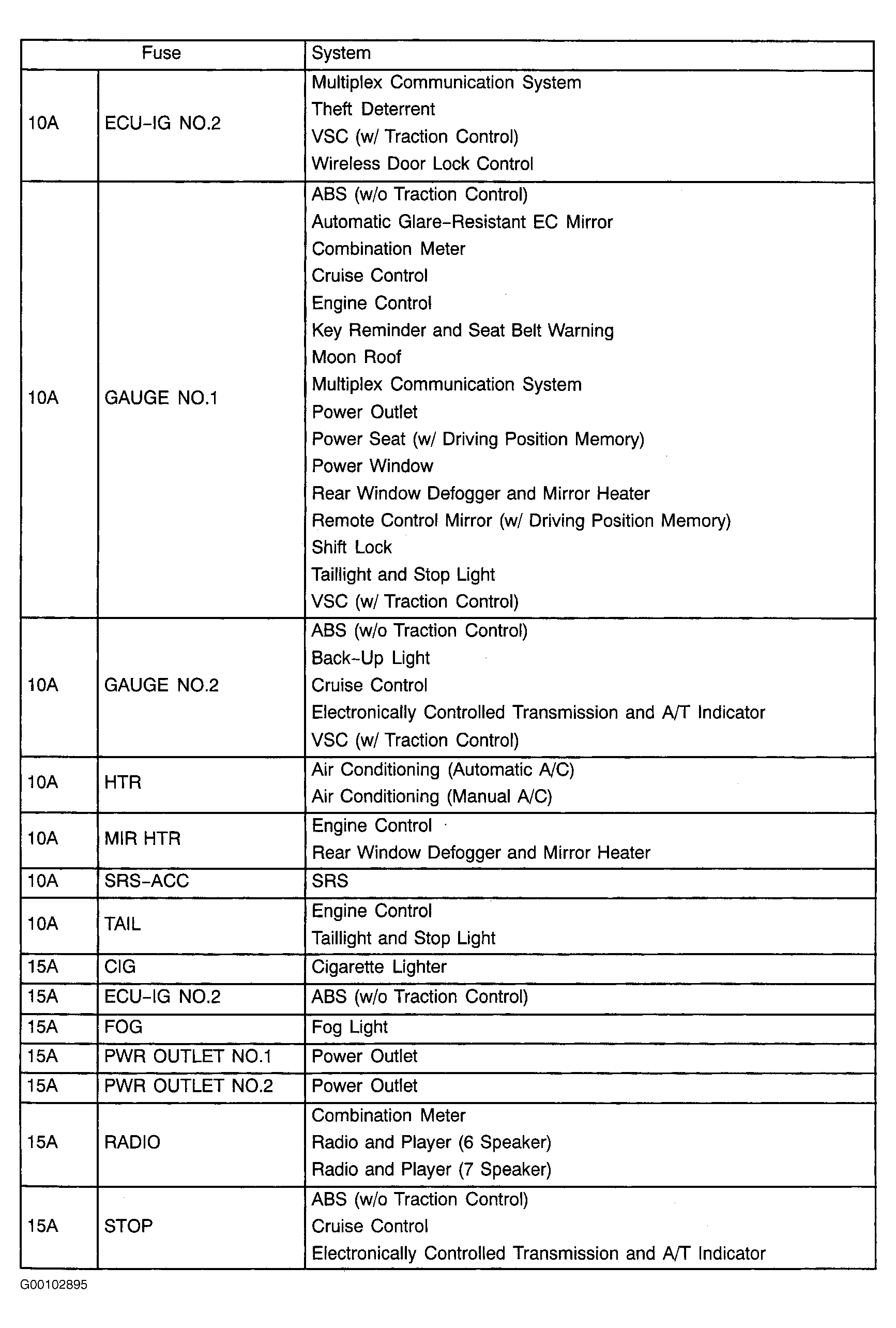

Fig 5: Driver Side J/B Legend (2 Of 3)

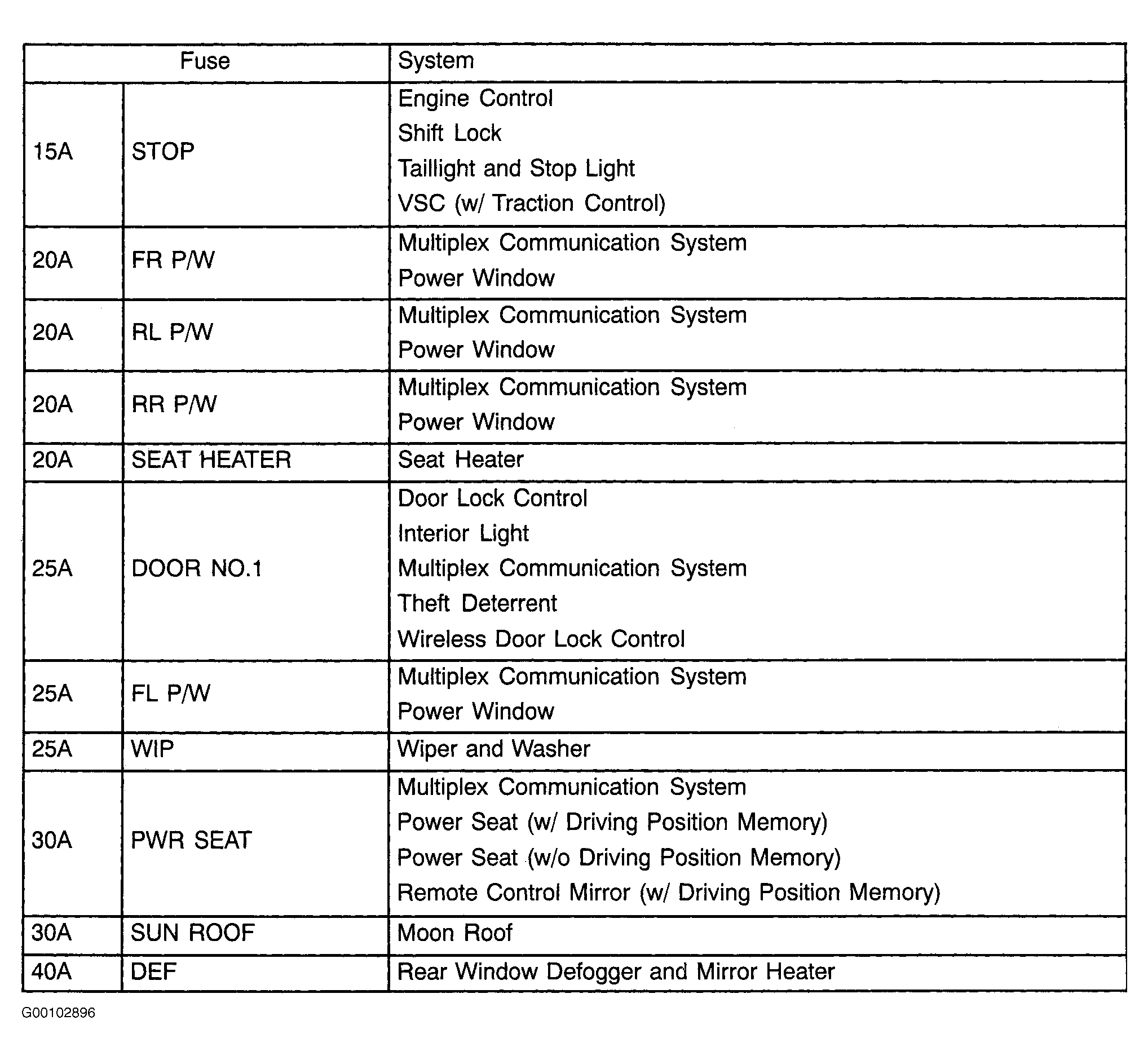

Fig 6: Driver Side J/B Legend (3 Of 3)
