Axle Shaft Length Specifications

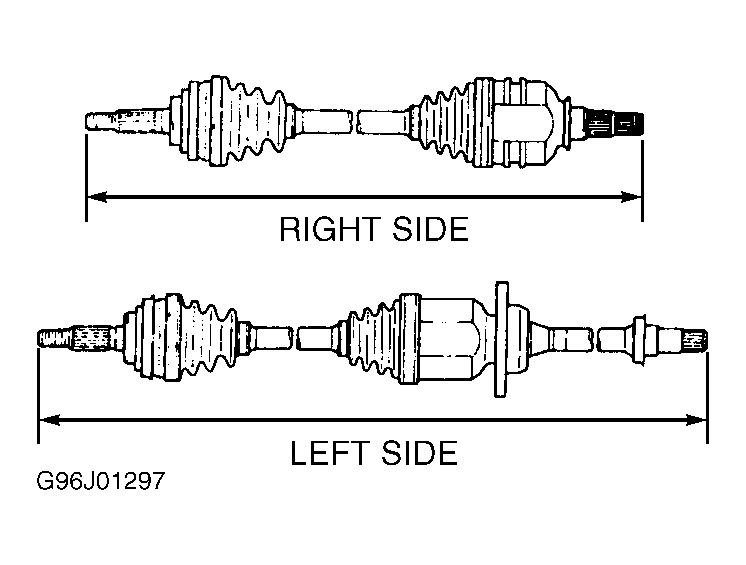

AXLE SHAFT LENGTH SPECIFICATIONS
| Application |
Length - In. (mm) |
| Avalon |
| Left Side |
22.99-23.15 (584.0-588.0) |
| Right Side |
34.63-34.79 (879.6-883.6) |
| Camry & Camry Solara |
| 5S-FE (4-Cylinder) |
| Left Side |
23.91-24.06 (607.2-611.2) |
| Right Side |
34.07-34.23 (865.3-869.3) |
| 1MZ-FE (V6) |
| Left Side |
| Automatic Transaxle |
22.9-23.15 (584-588) |
| Manual Transaxle |
23.60-23.76 (599.5-603.5) |
| Right Side |
| Automatic Transaxle |
34.63-34.79 (879.6-883.6) |
| Manual Transaxle |
34.24-34.39 (869.6-873.6) |
| Celica |
| Automatic Transaxle |
| Left Side |
22.08-22.48 (560.9-570.9) |
| Right Side |
33.31-33.70 (846-856) |
| Manual Transaxle |
| Left Side |
22.00-22.39 (558.7-568.7) |
| Right Side |
33.09-33.48 (840.5-850.5) |
| Corolla |
| Left Side |
21.07-21.46 (535.2-545.2) |
| Right Side |
33.56-33.95 (852.4-862.4) |
| ECHO |
| Left Side |
22.41-22.81 (569.3-579.3) |
| Right Side |
31.82-32.21 (808.3-818.3) |
| Prius |
| Left Side |
22.63-23.03 (574.9-584.9) |
| Right Side |
32.76-33.14 (831.9-841.9) |
| Sienna |
| Left Side |
22.99-23.15 (584.0-588.0) |
| Right Side |
34.63-34.79 (879.6-883.6) |
