Terminals Of Ecu
Terminals Of Ecu

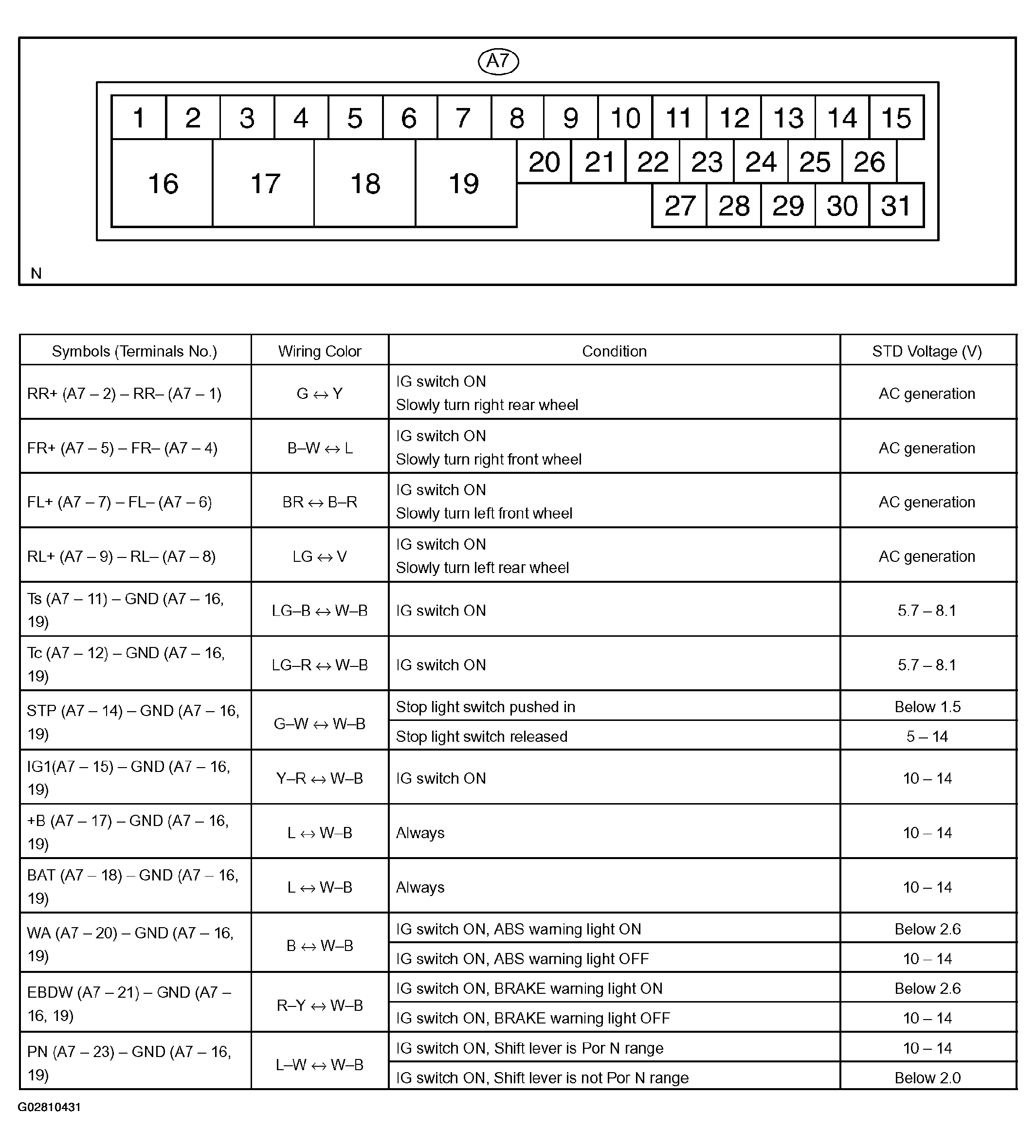

Fig 1: Identifying ABS ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
