Problem Symptoms Table

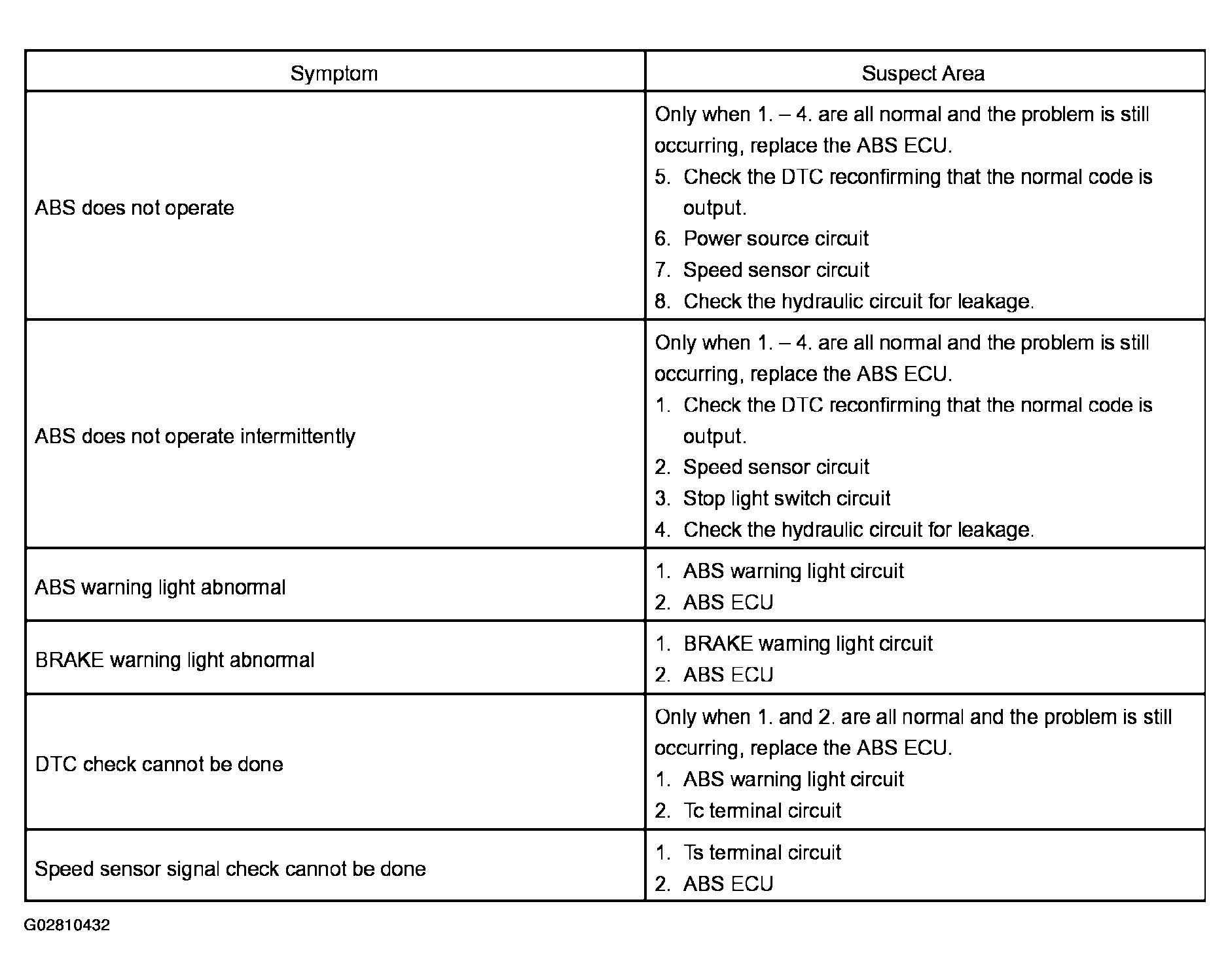

If a normal code is displayed during DTC check but a problem still occurs, check the circuits corresponding to each problem symptom in the order given in Fig 1 below and proceed to the relevant troubleshooting page.
NOTE:
When replacing ABS ECU, sensor or etc., turn the IG switch OFF.
