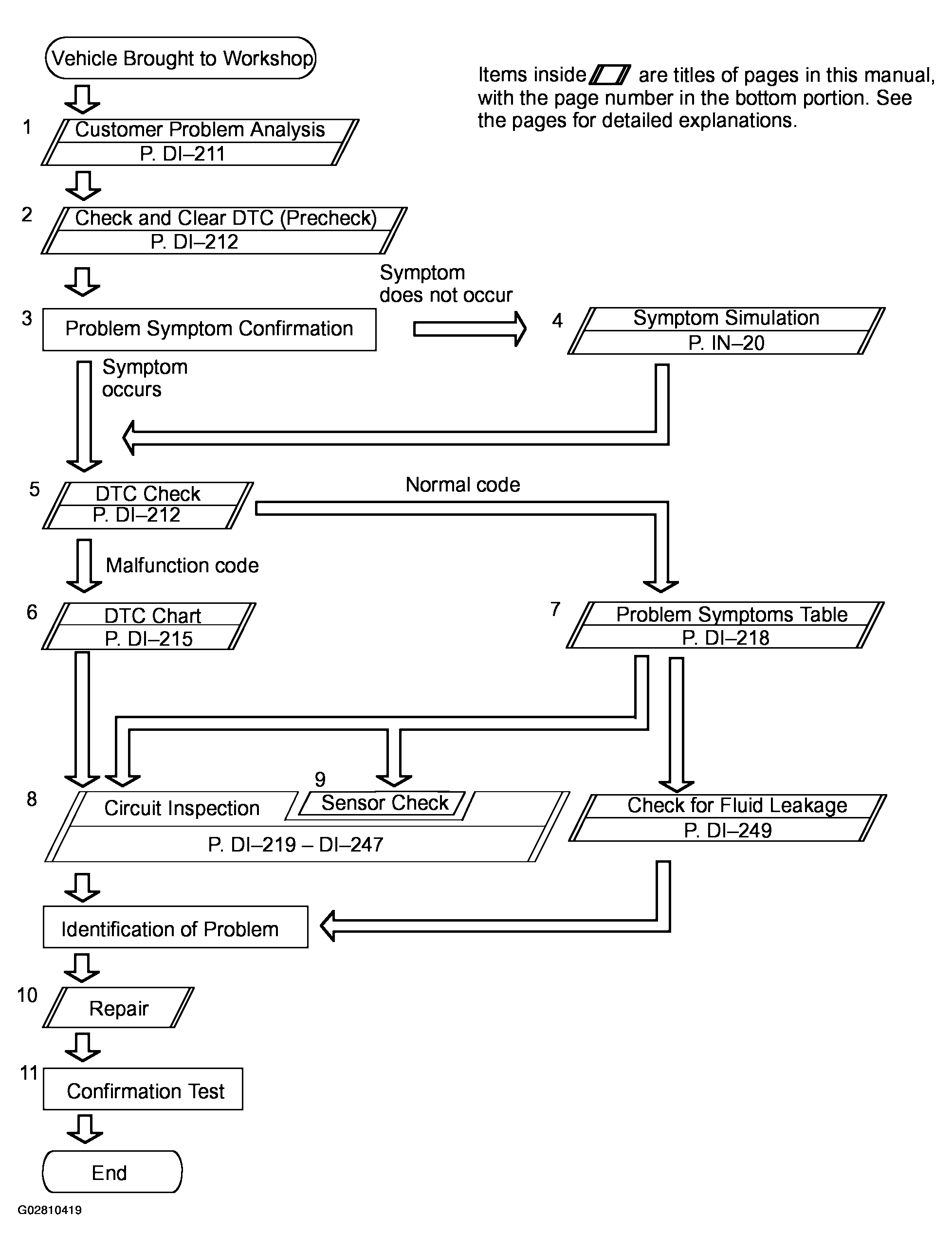

How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure on the following pages.
Fail safe function:
When a failure occurs in the ABS system, the ABS warning light is lit and the ABS operation is prohibited. In addition to this, when the failure which disables the EBD operation occurs, the brake warning light is lit as well and EBD operation is prohibited.
