Check For Fluid Leakage

Check for fluid leakage from actuator or hydraulic lines.

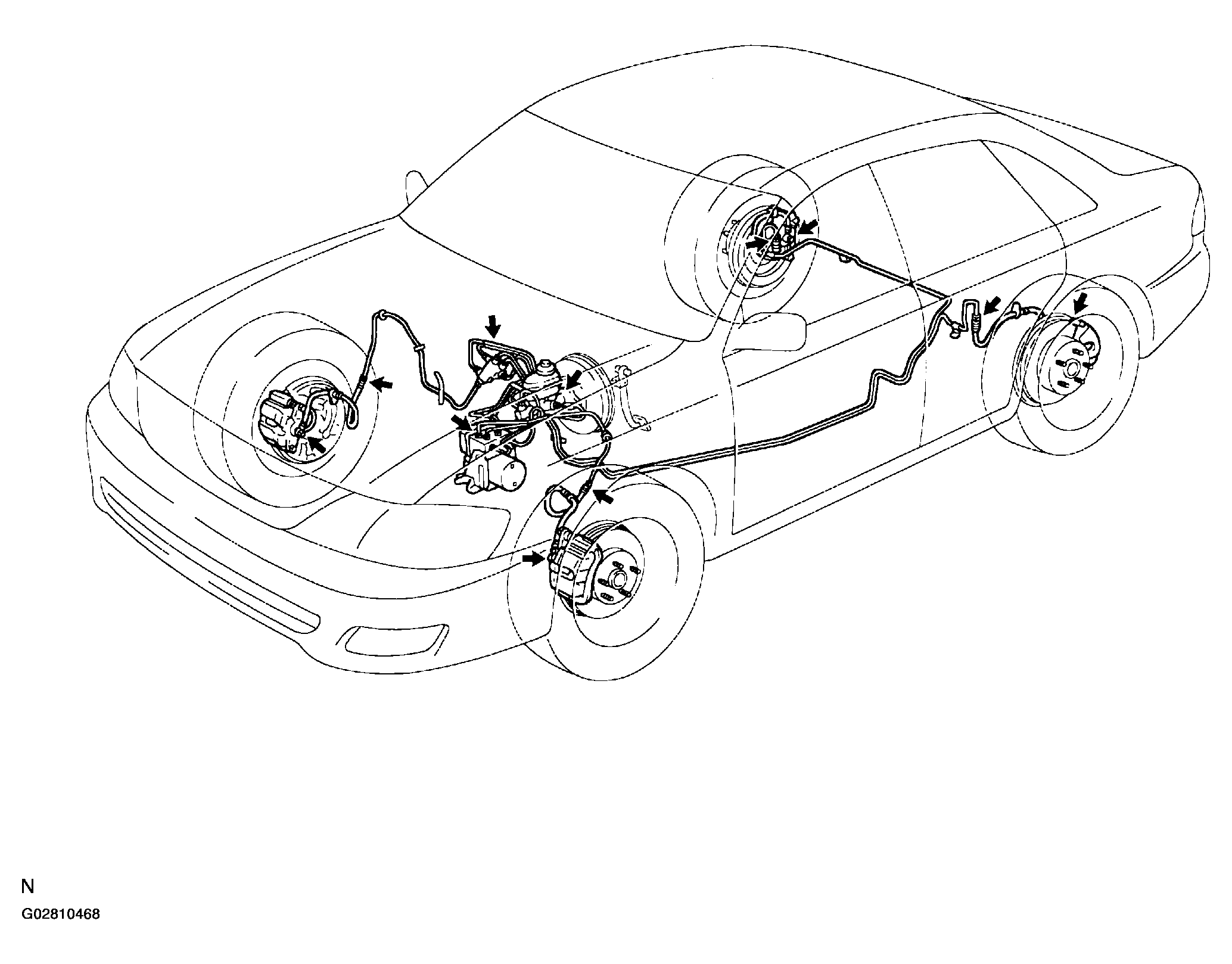

Fig 1: Identifying Fluid Leakage Points

G02810468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
