Abs PRECHARGE Pump: Removal

Remove Air Cleaner Case With Air Cleaner Hose
Remove Master Cylinder (See MASTER CYLINDER )
Disconnect Precharge Pump Connector
Remove Precharge Pump Assembly

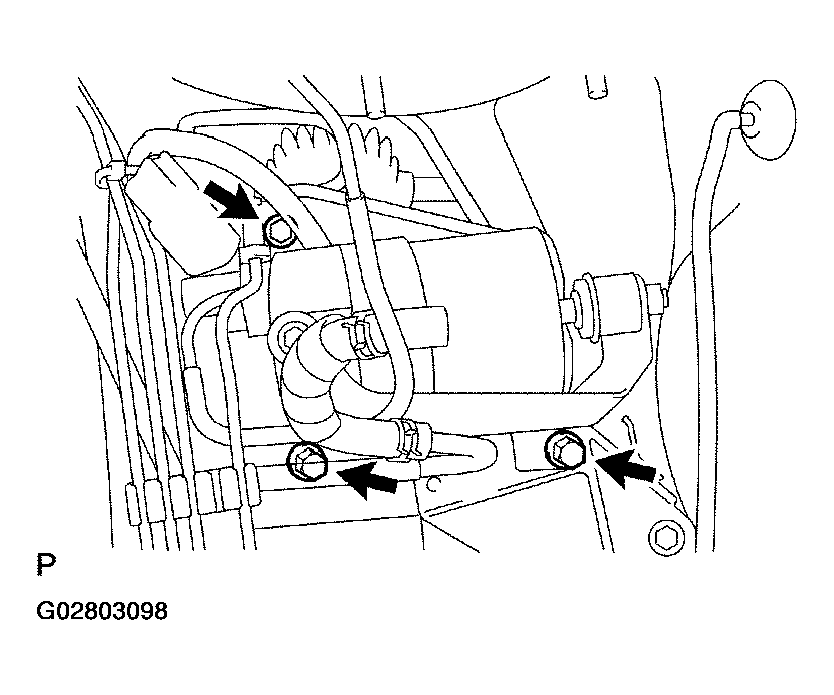

Fig 1: Removing Precharge Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 bolts and precharge pump assembly.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
2. Using SST, disconnect the 2 brake lines from the precharge pump.
  SST 09751-36011

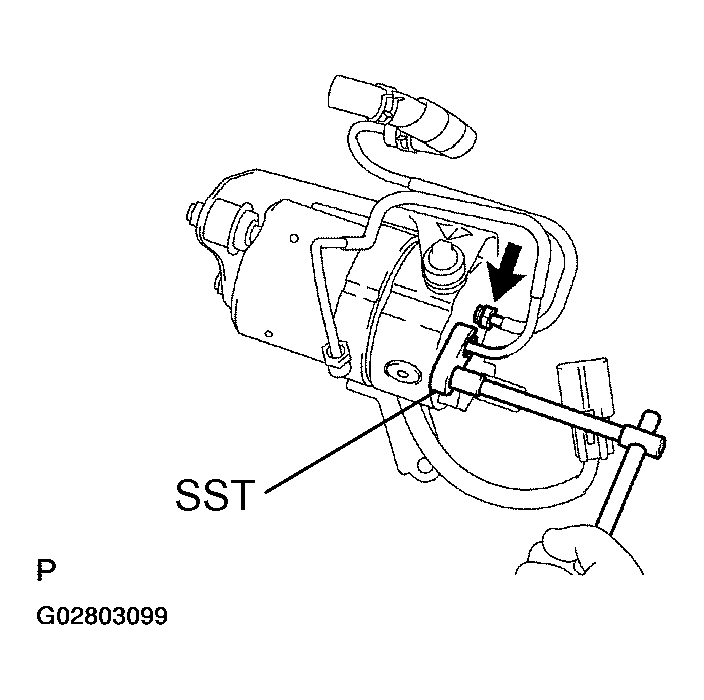

  Fig 2: Using SST To Disconnect Brake Lines From Precharge Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:
  1. 10 mm nut: 15 N.m (155 kgf.cm, 11 ft.lbf)
  2. 12 mm nut: 20 N.m (200 kgf.cm, 15 ft.lbf)
Remove Precharge Pump

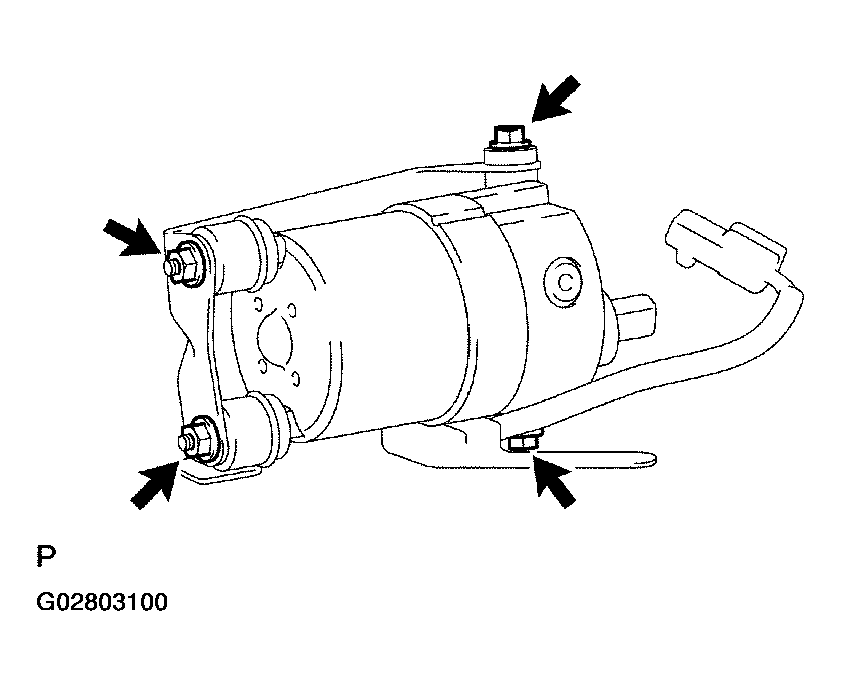

1. Remove the 2 nuts, 2 bolts and precharge pump from the pump bracket.

  Fig 3: Removing Precharge Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:
  1. Nut: 13 N.m (130 kgf.cm, 9 ft.lbf)
  2. Bolt: 8.0 N.m (82 kgf.cm, 71 in..lbf)
2. Remove the 2 holders, 2 collars, 2 washers and 4 cushions.
Remove Master Cylinder Pressure Sensor

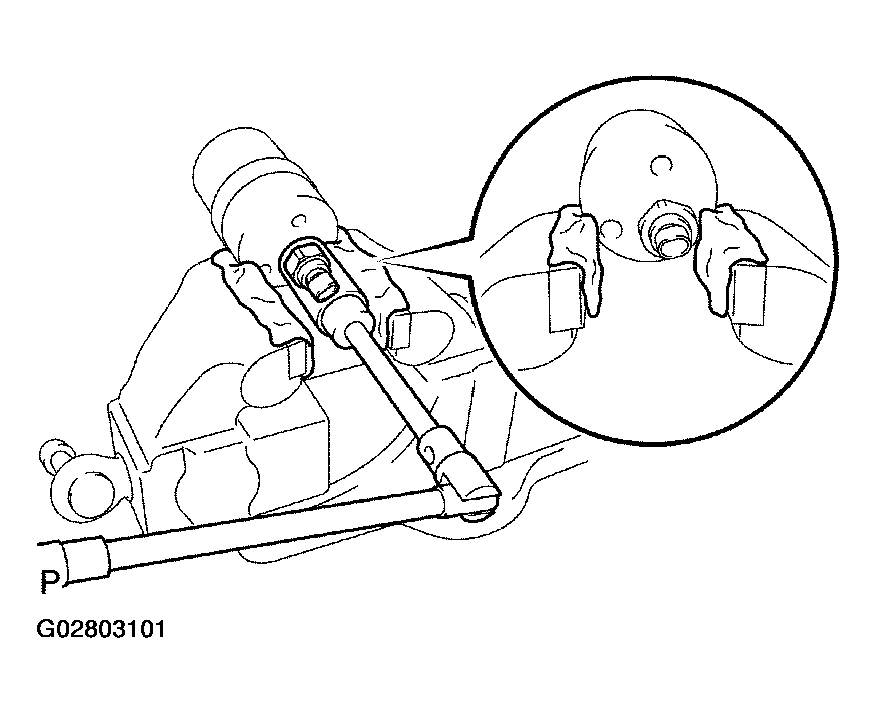

1. Place the precharge pump in a vise with a cloth shown in Fig 4.

  Fig 4: Removing Master Cylinder Pressure Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using 30 mm deeper socket wrench, and remove the master cylinder pressure sensor, O-ring and spacer.
  Torque: 81 N.m (830 kgf.cm, 60 ft.lbf)
