Abs PRECHARGE Pump: Components

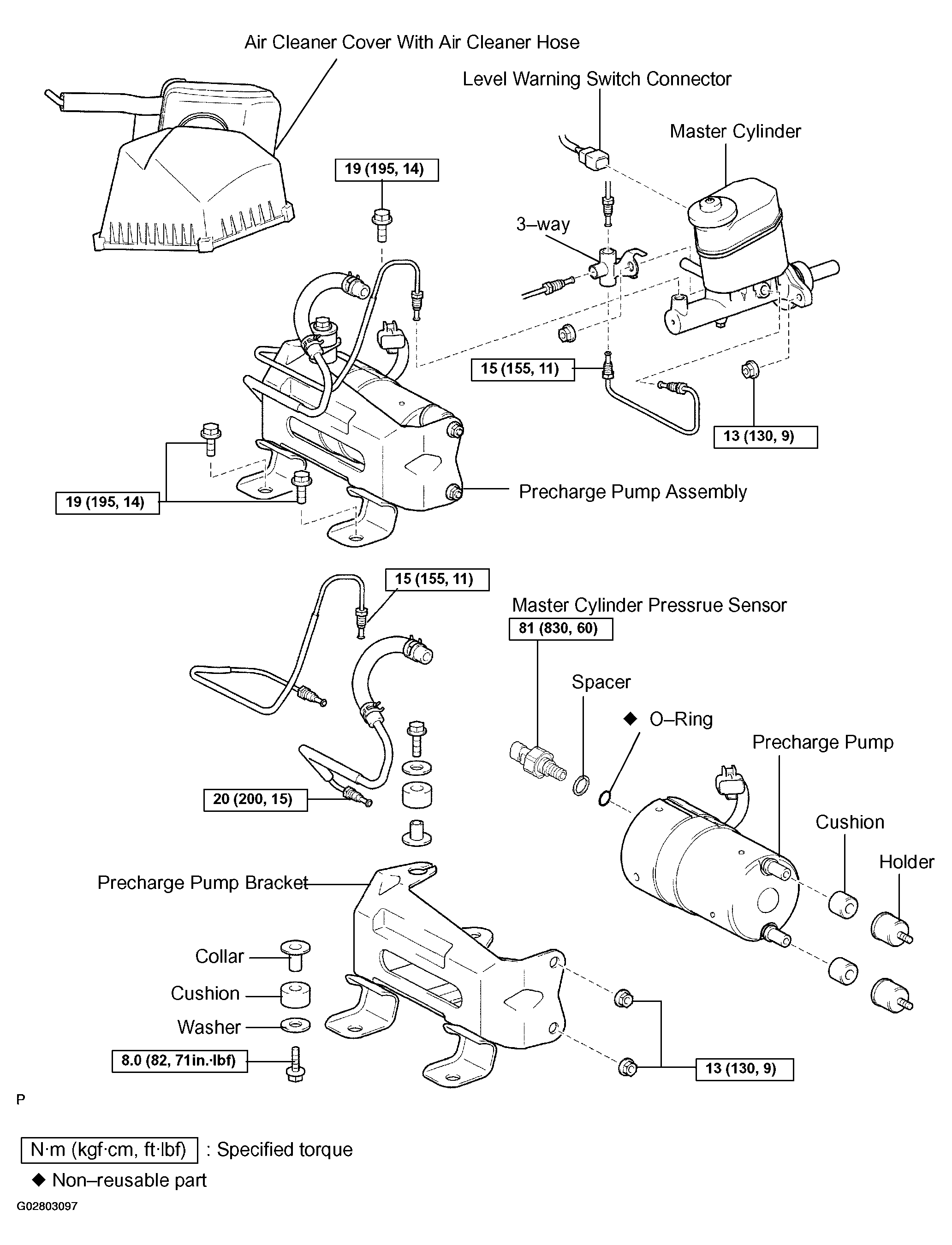

Fig 1: Exploded View And Torque Specifications Of Precharge Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
