Abs Actuator: Removal

Remove Air Cleaner Assembly
Disconnect Connector
Pull out the release bar, and disconnect the connector.

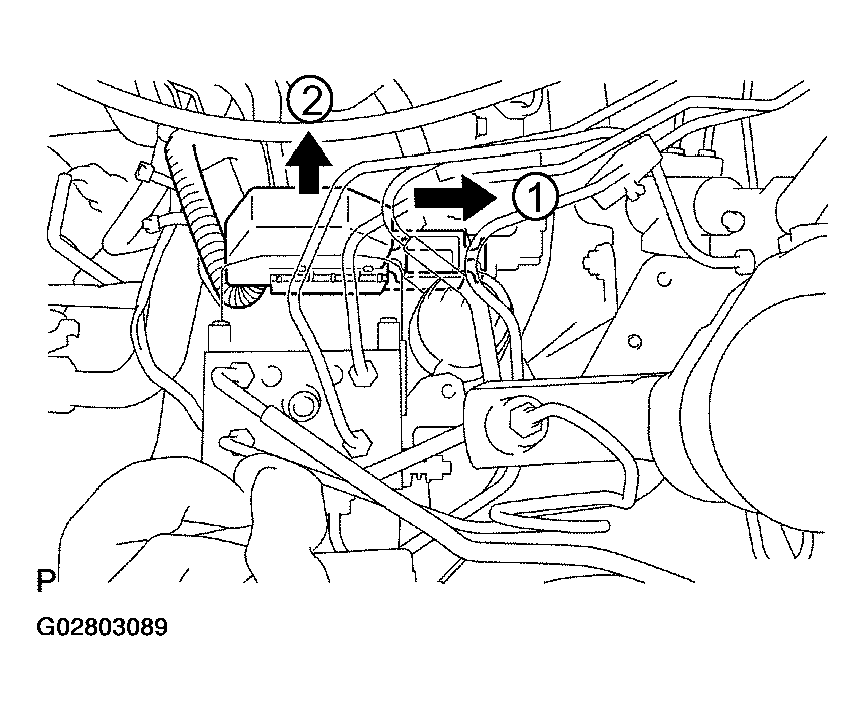

Fig 1: Disconnecting ABS Actuator Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect Brake Lines
Using SST, disconnect the 6 brake lines from the ABS actuator.
1. SST 09023-00100

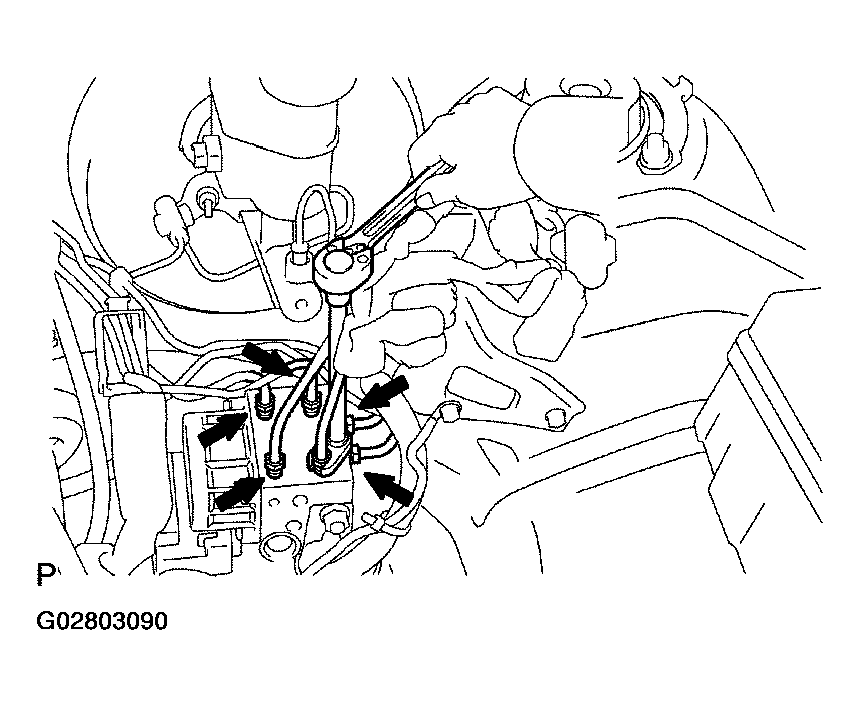

  Fig 2: Disconnecting Brake Lines
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
Remove ABS Actuator Assembly
Remove the 3 bolts and ABS actuator assembly.

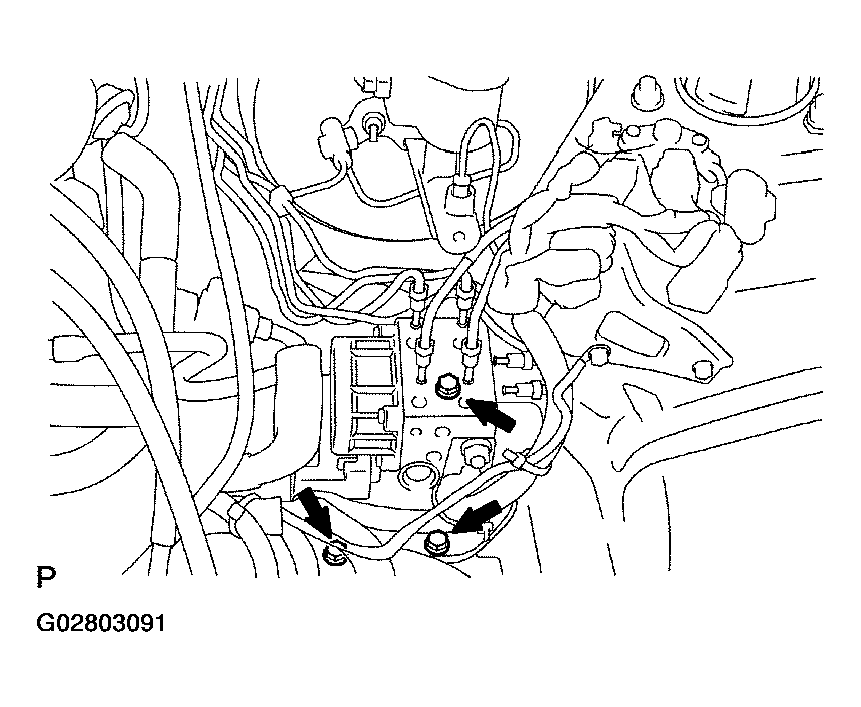

Fig 3: Removing ABS Actuator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
Remove ABS Actuator
1. Remove the 2 nuts and ABS actuator.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
2. Remove the 2 holders and 3 cushions from the ABS actuator.
