Description & Operation: Highlander

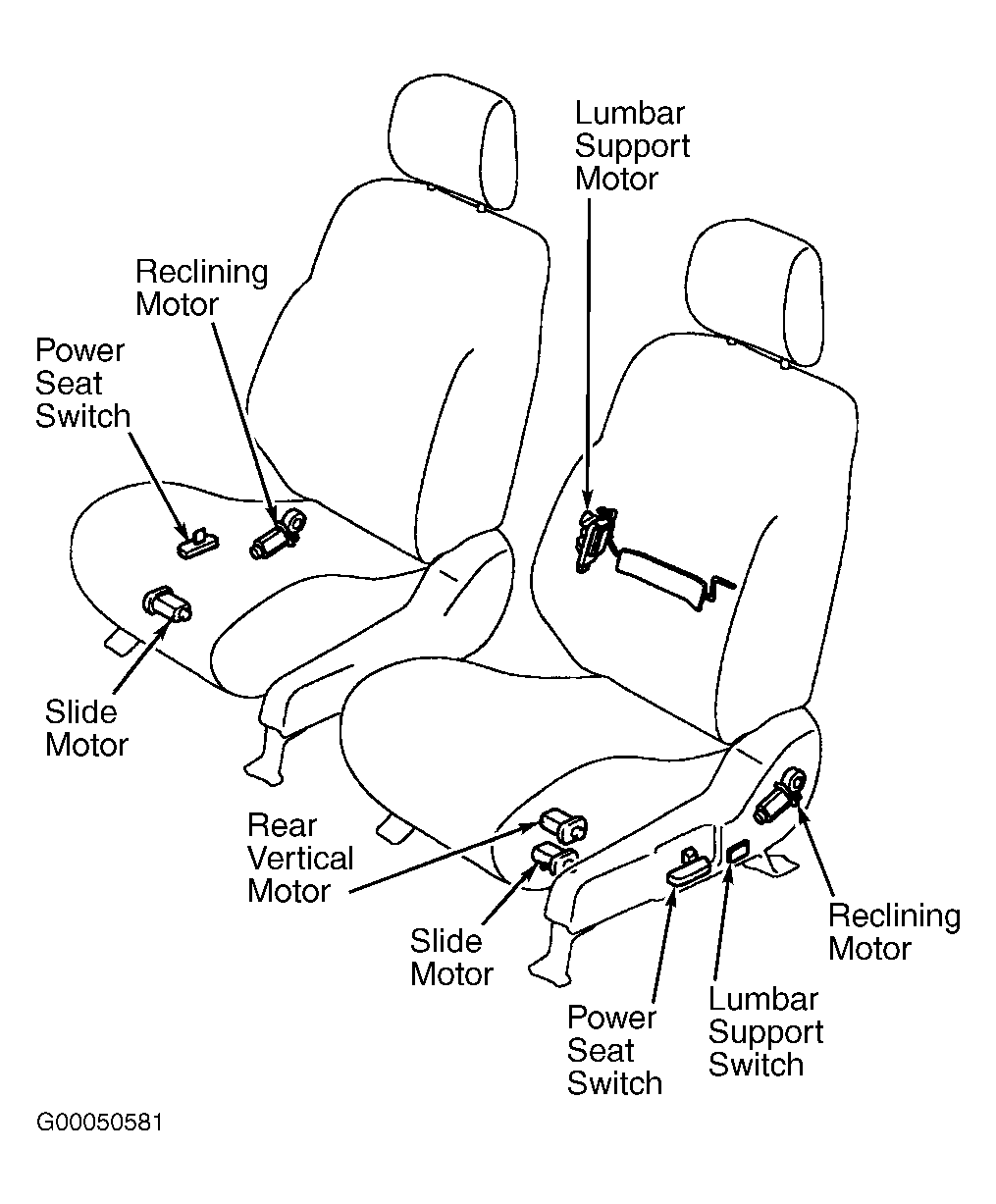

Driver's seat slides forward and backward, front tilts up and down, rear tilts up and down, and seat back reclines forward and backward. Driver's seat is also equipped with an adjustable lumbar (lower back) support. See Figure. Power seat switch controls power and ground circuits of power seat motors. Power (30-amp) fuse in instrument panel junction block protects circuit.

Some models are equipped with optional heated front seats. Heating elements are located in seat cushion and seat back.
