Wiring Diagrams

NOTE: For additional information, also see BODY CONTROL SYSTEMS - AVALON and DATA LINK CONNECTORS articles.

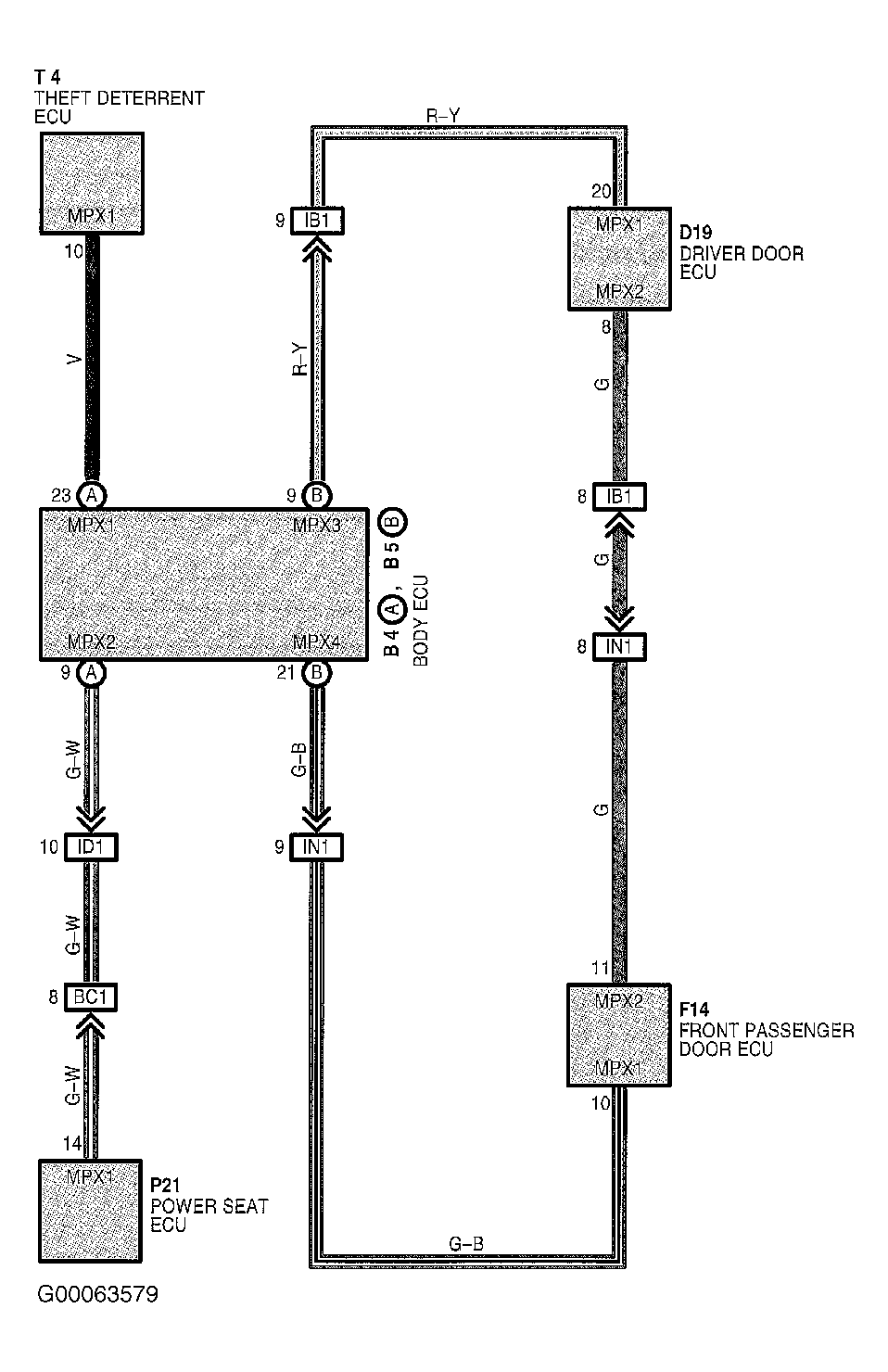

Fig 1: Multiplex Wiring Schematic - Overall View (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

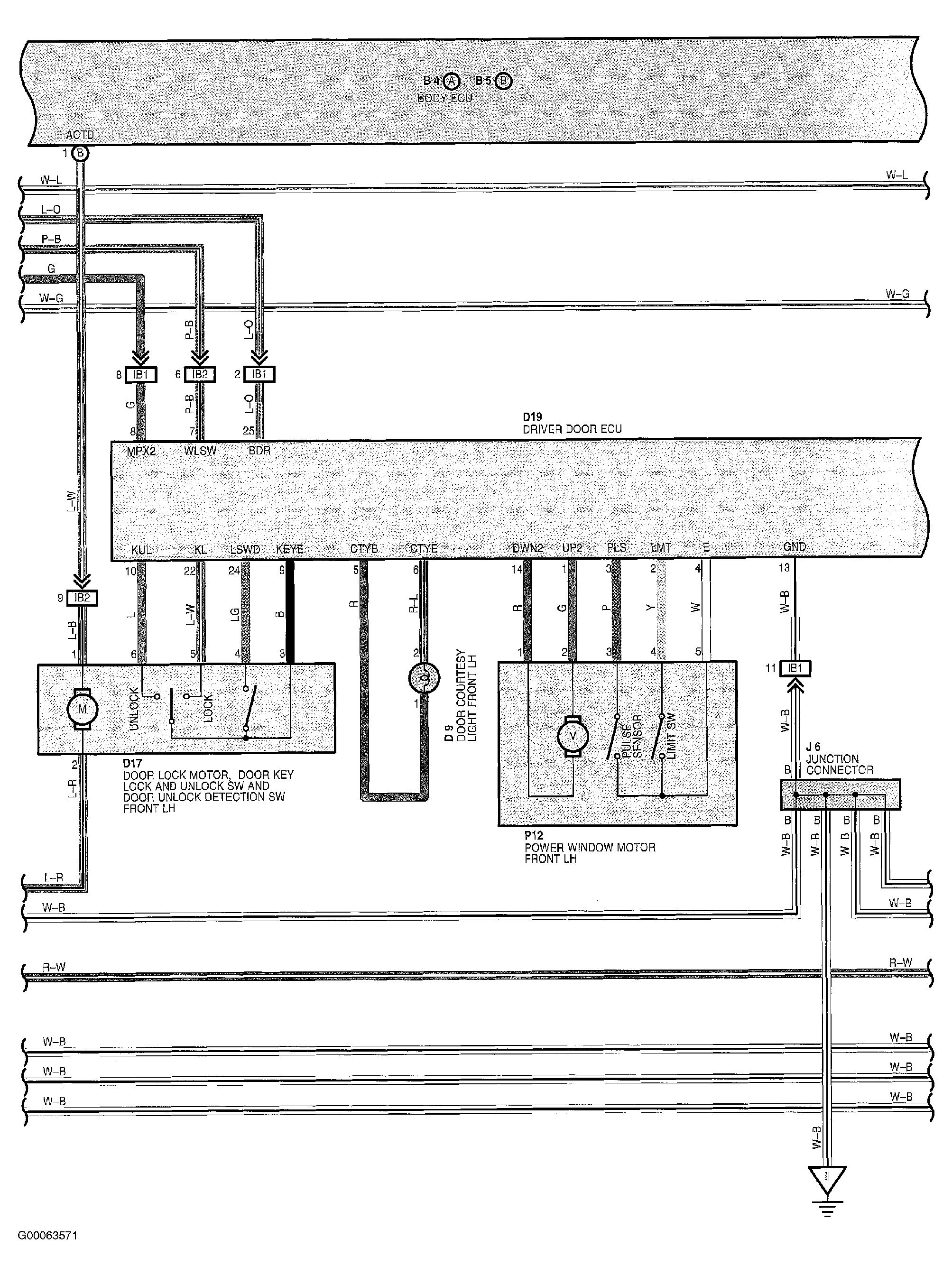

Fig 2: Multiplex Wiring Schematic - Detailed View (Avalon 1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

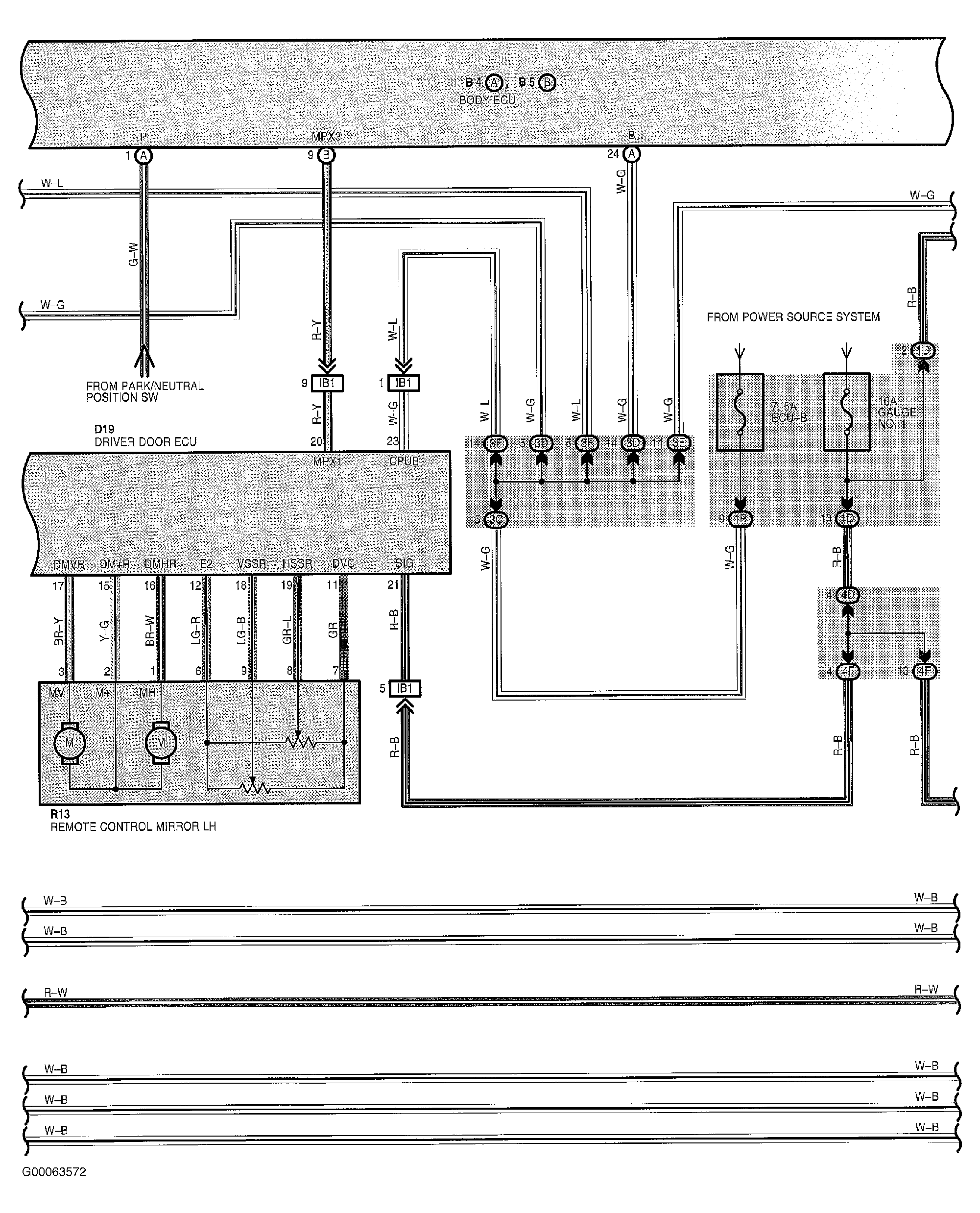

Fig 3: Multiplex Wiring Schematic - Detailed View (Avalon 2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

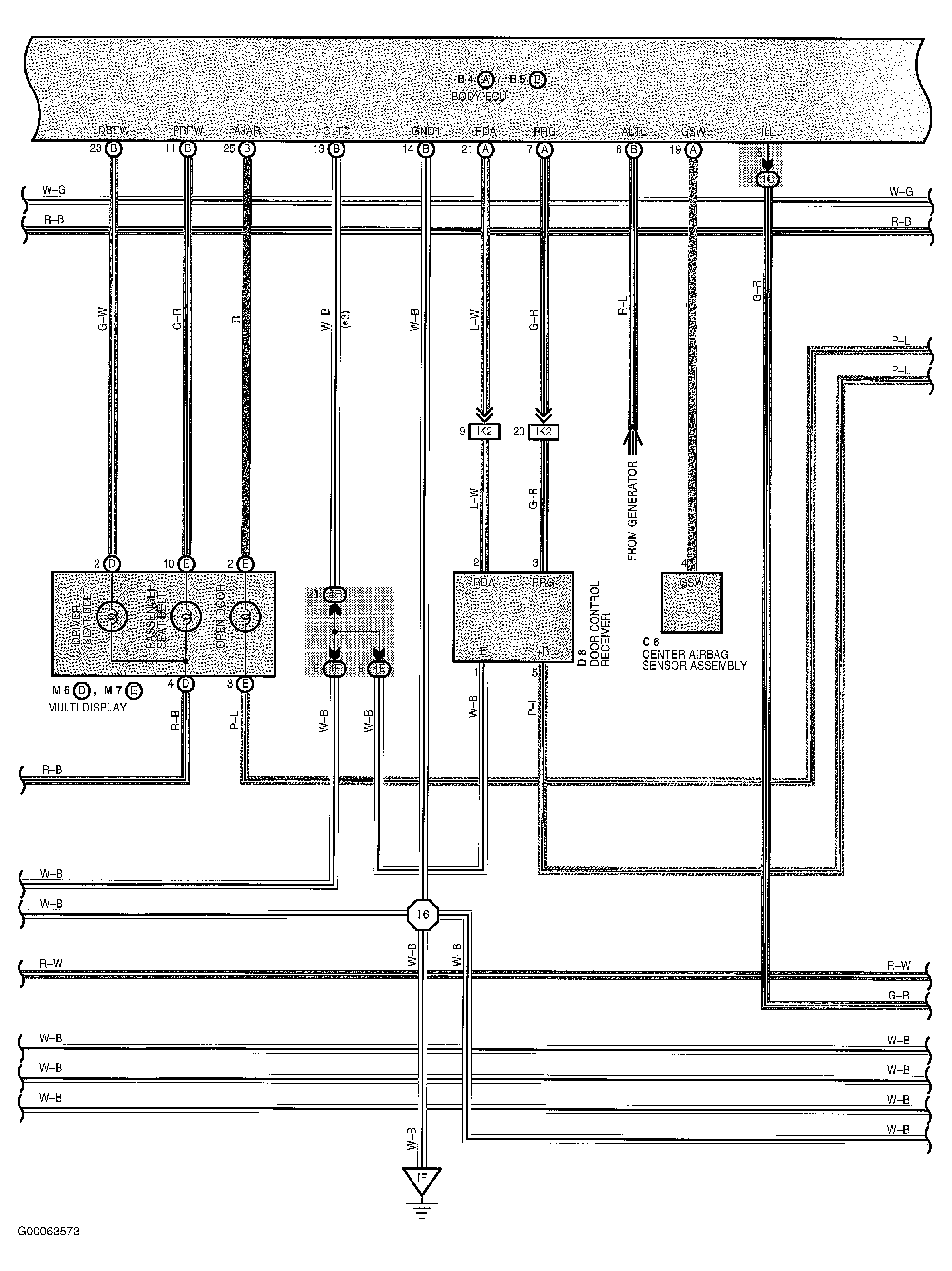

Fig 4: Multiplex Wiring Schematic - Detailed View (Avalon 3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

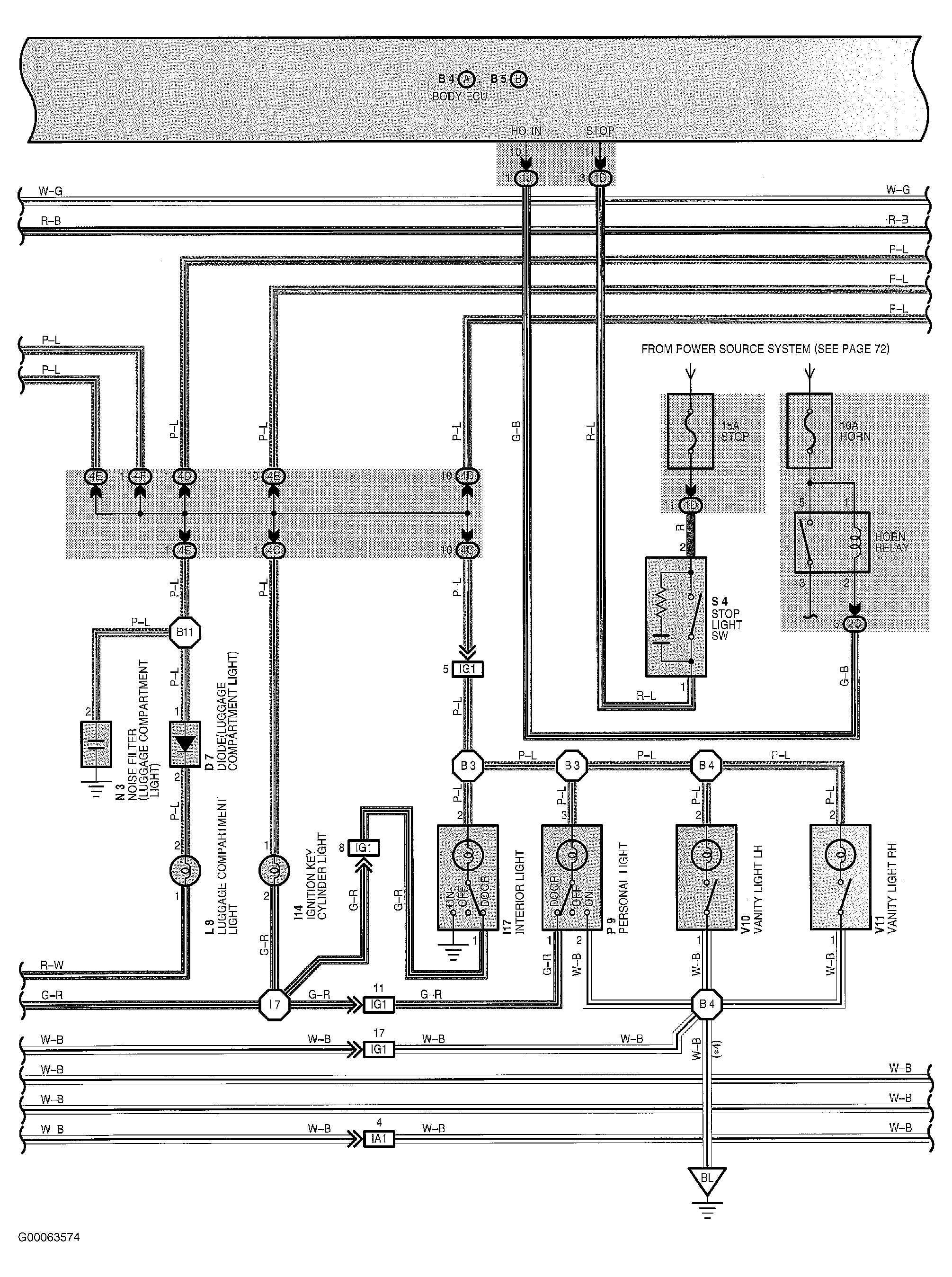

Fig 5: Multiplex Wiring Schematic - Detailed View (Avalon 4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

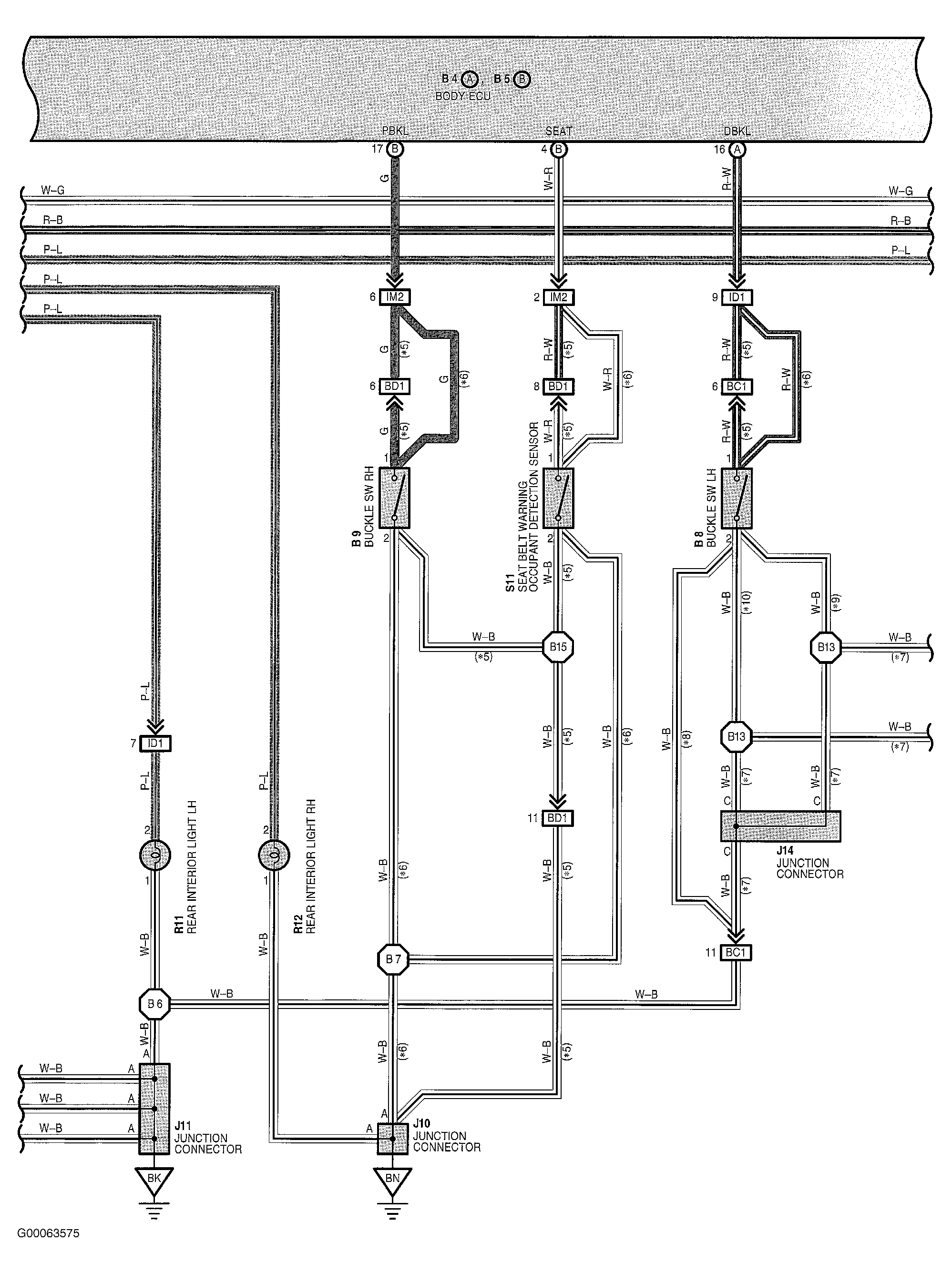

Fig 6: Multiplex Wiring Schematic - Detailed View (Avalon 5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

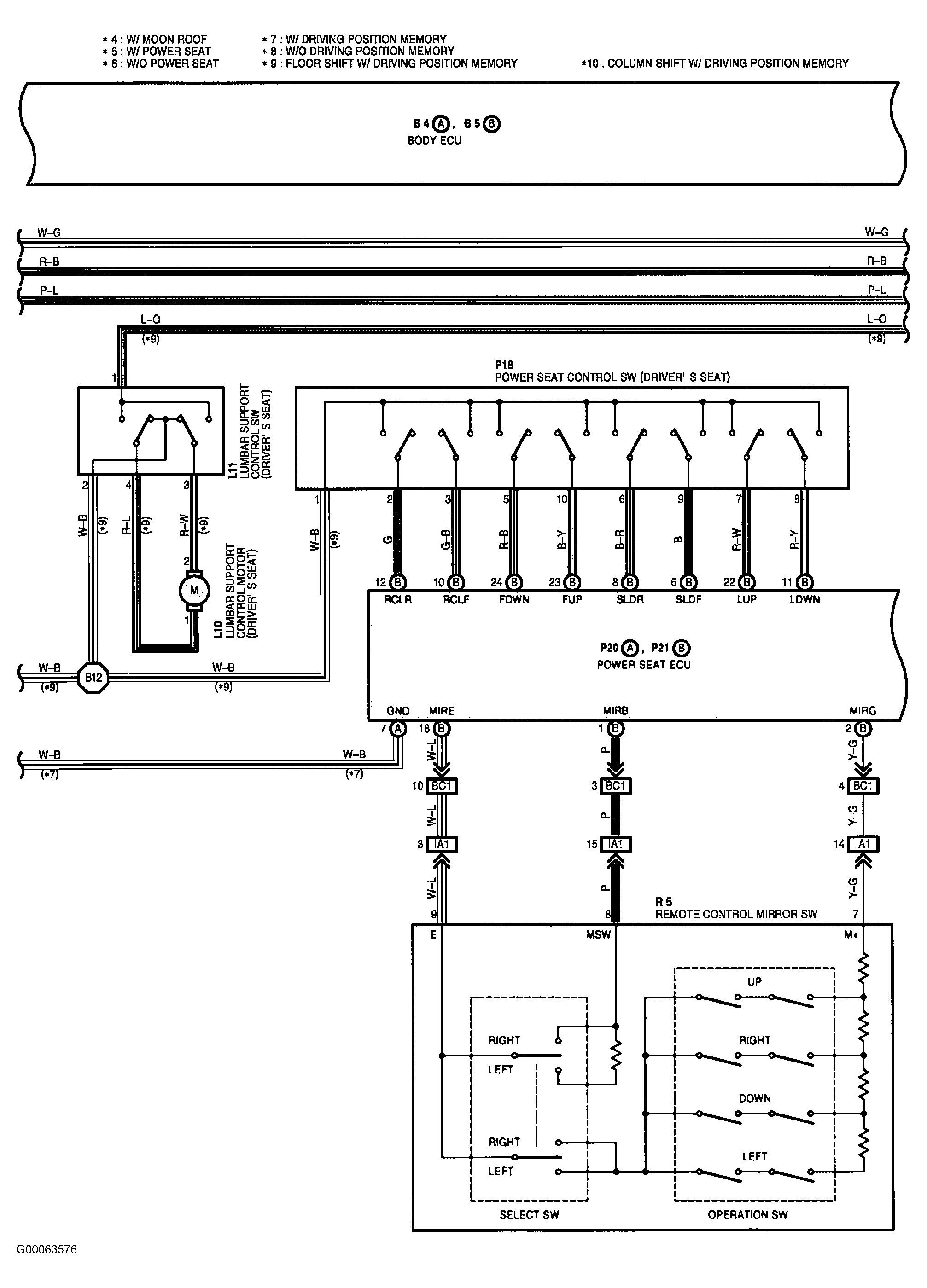

Fig 7: Multiplex Wiring Schematic - Detailed View (Avalon 6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

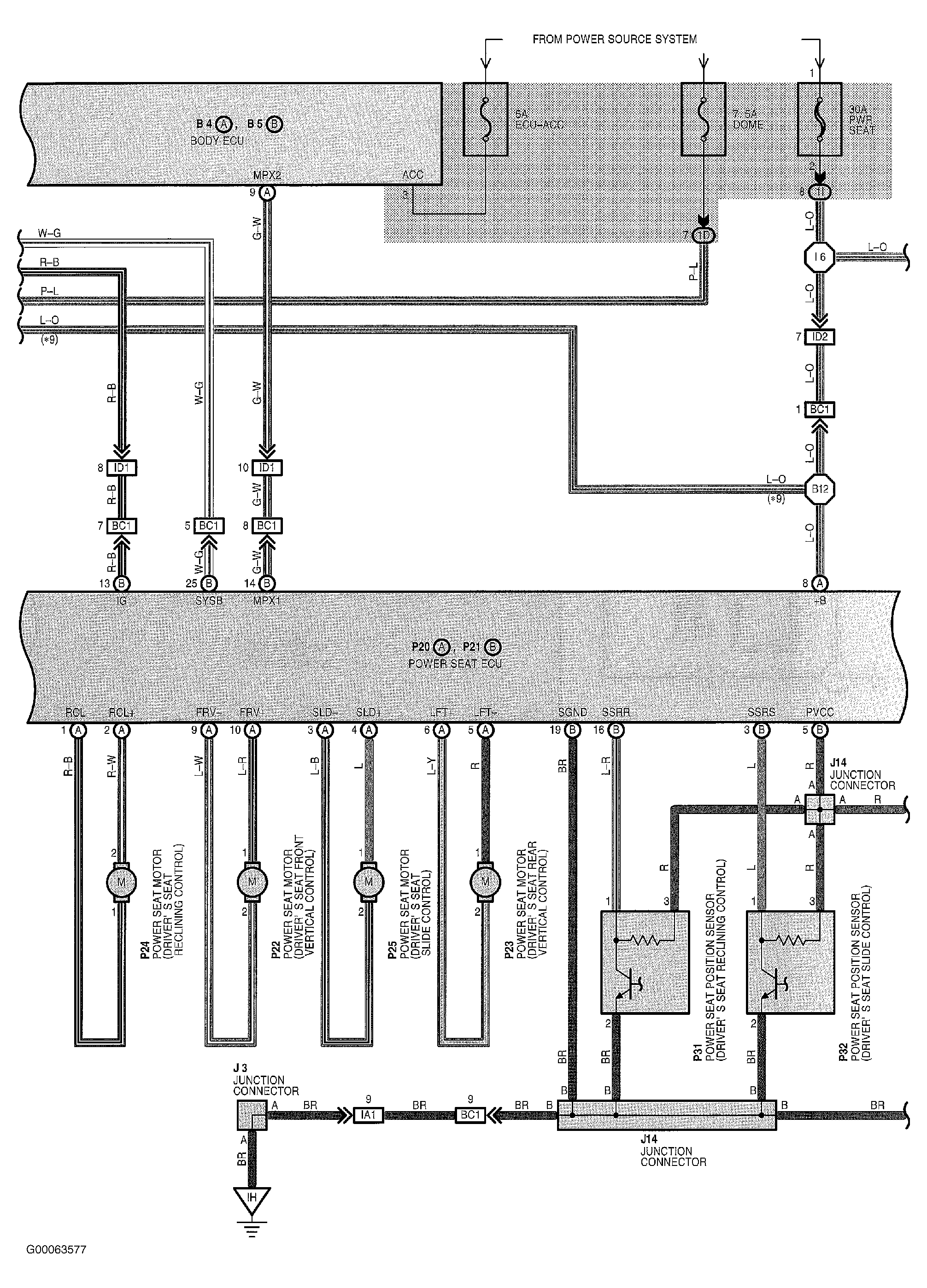

Fig 8: Multiplex Wiring Schematic - Detailed View (Avalon 7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

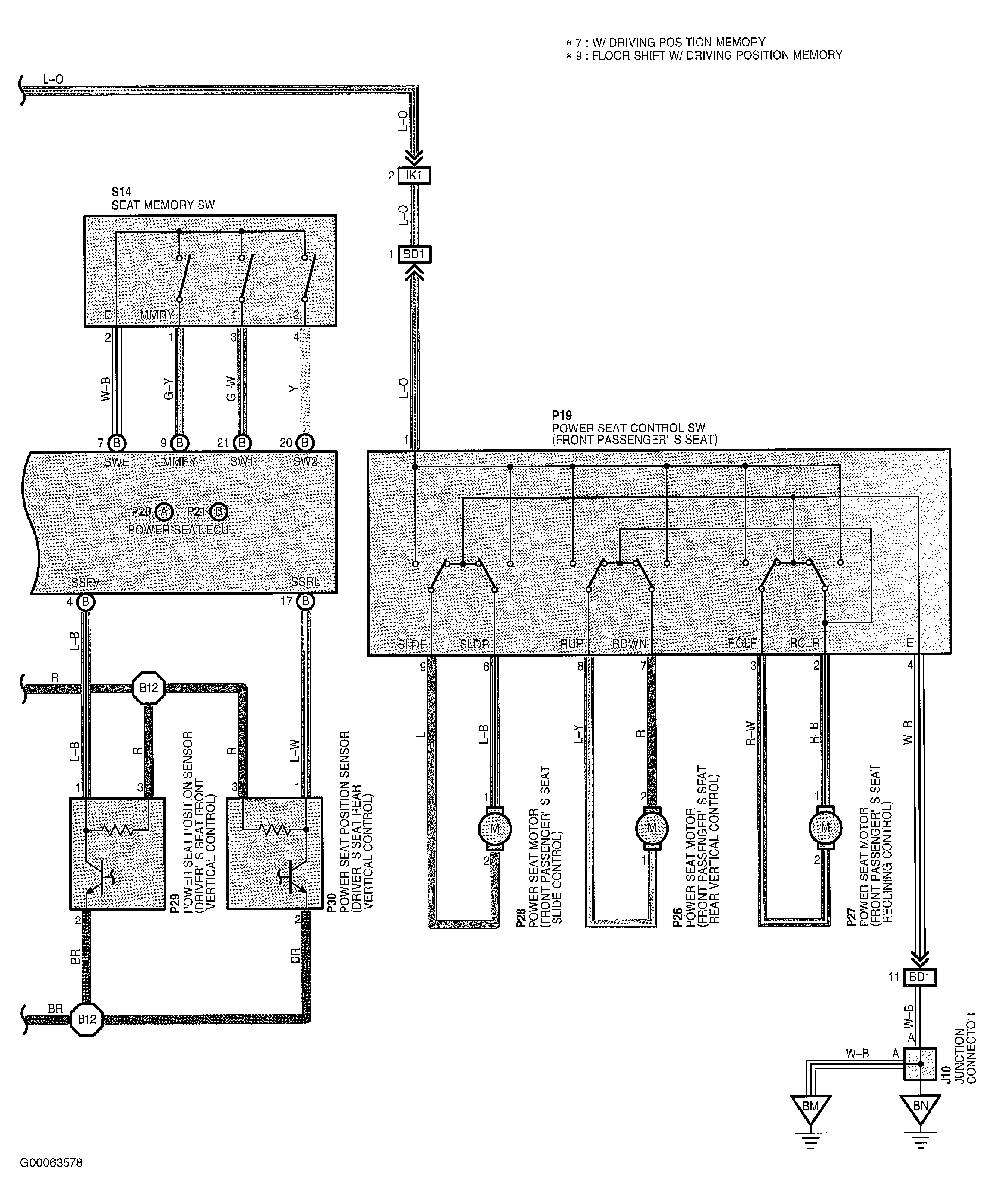

Fig 9: Multiplex Wiring Schematic - Detailed View (Avalon 8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Multiplex Wiring Schematic - Detailed View (Avalon 9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

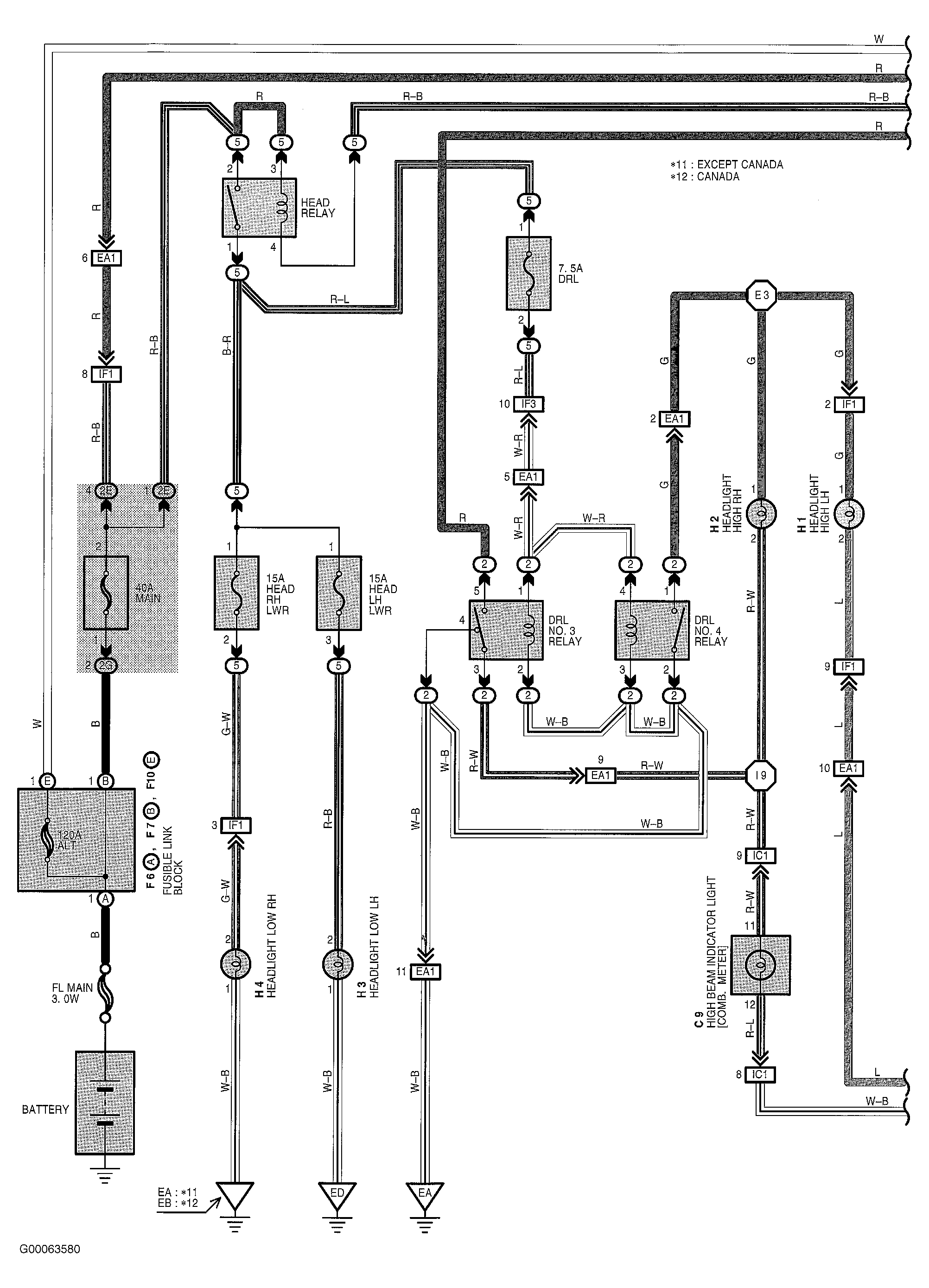

Fig 11: Multiplex Wiring Schematic - Detailed View (Avalon 10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

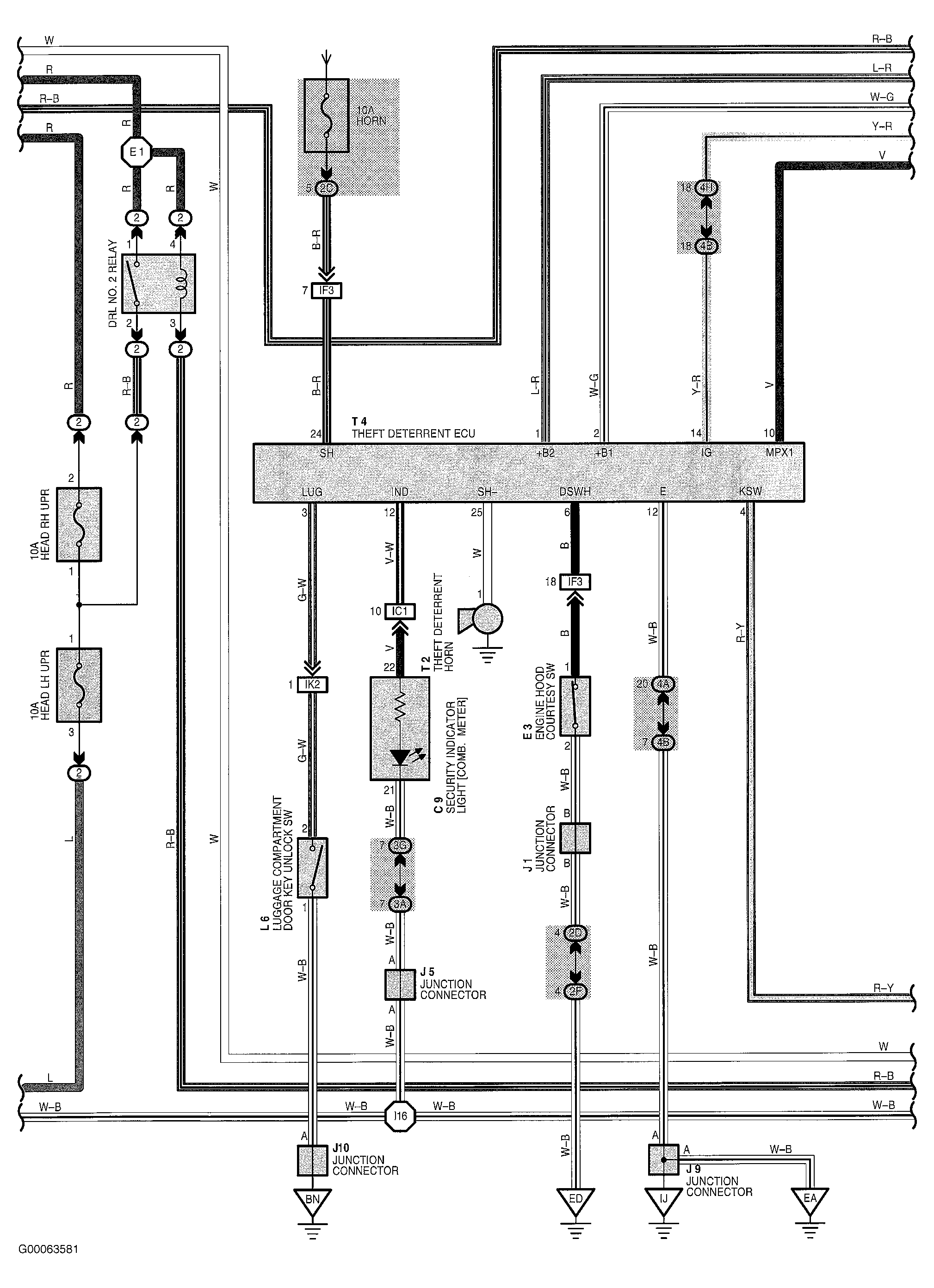

Fig 12: Multiplex Wiring Schematic - Detailed View (Avalon 11 Of 16)

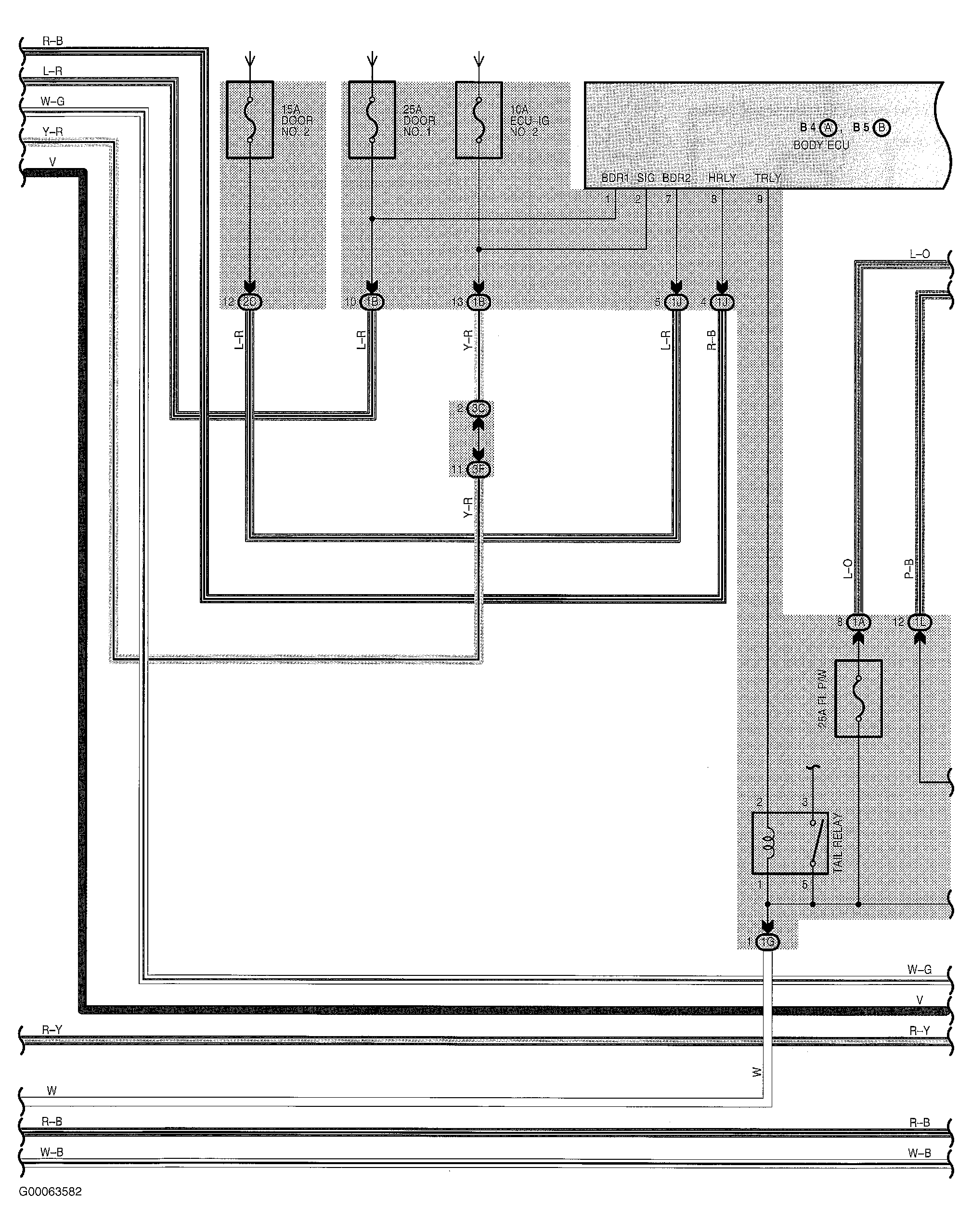

Fig 13: Multiplex Wiring Schematic - Detailed View (Avalon 12 Of 16)

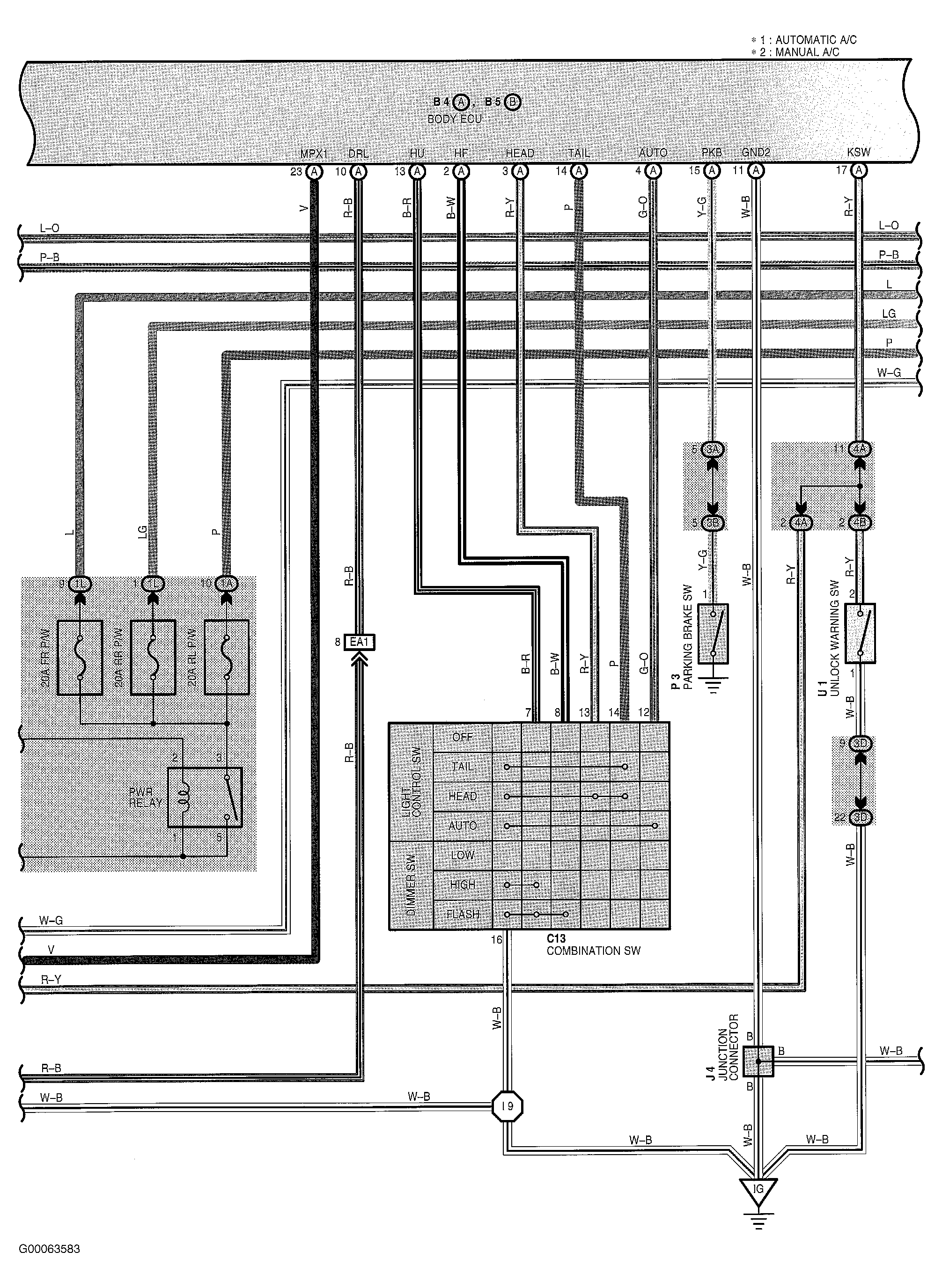

Fig 14: Multiplex Wiring Schematic - Detailed View (Avalon 13 Of 16)

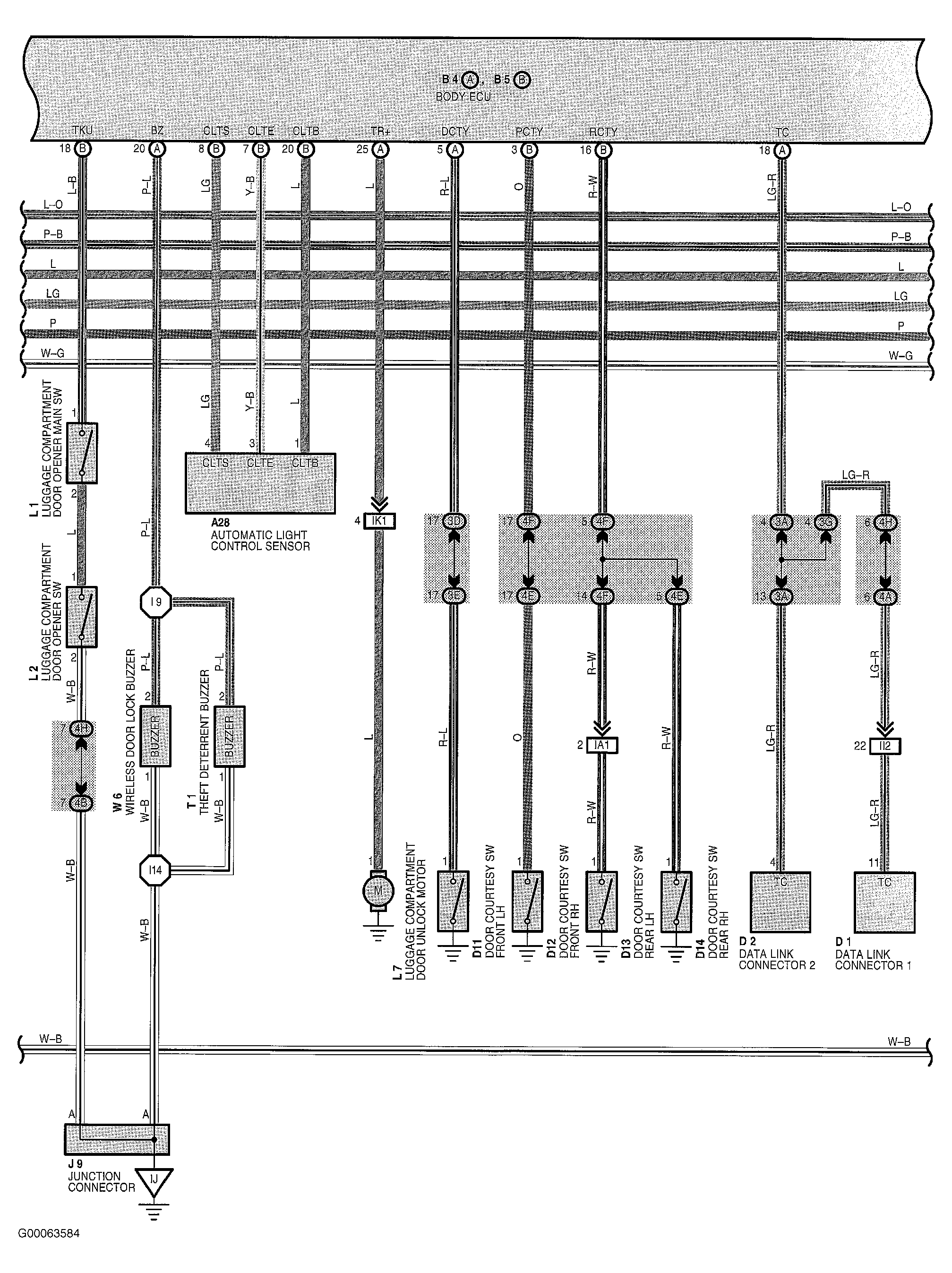

Fig 15: Multiplex Wiring Schematic - Detailed View (Avalon 14 Of 16)

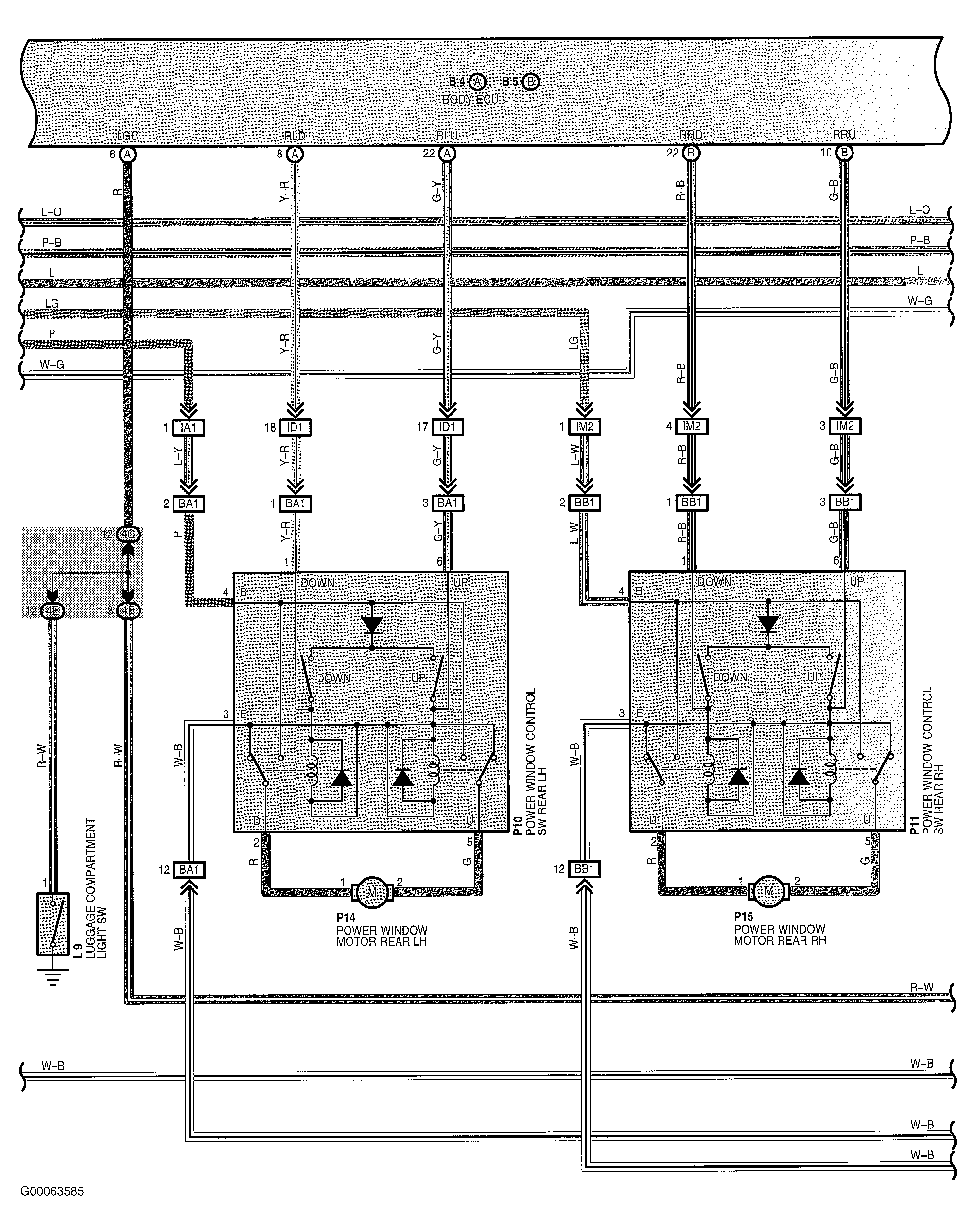

Fig 16: Multiplex Wiring Schematic - Detailed View (Avalon 15 Of 16)

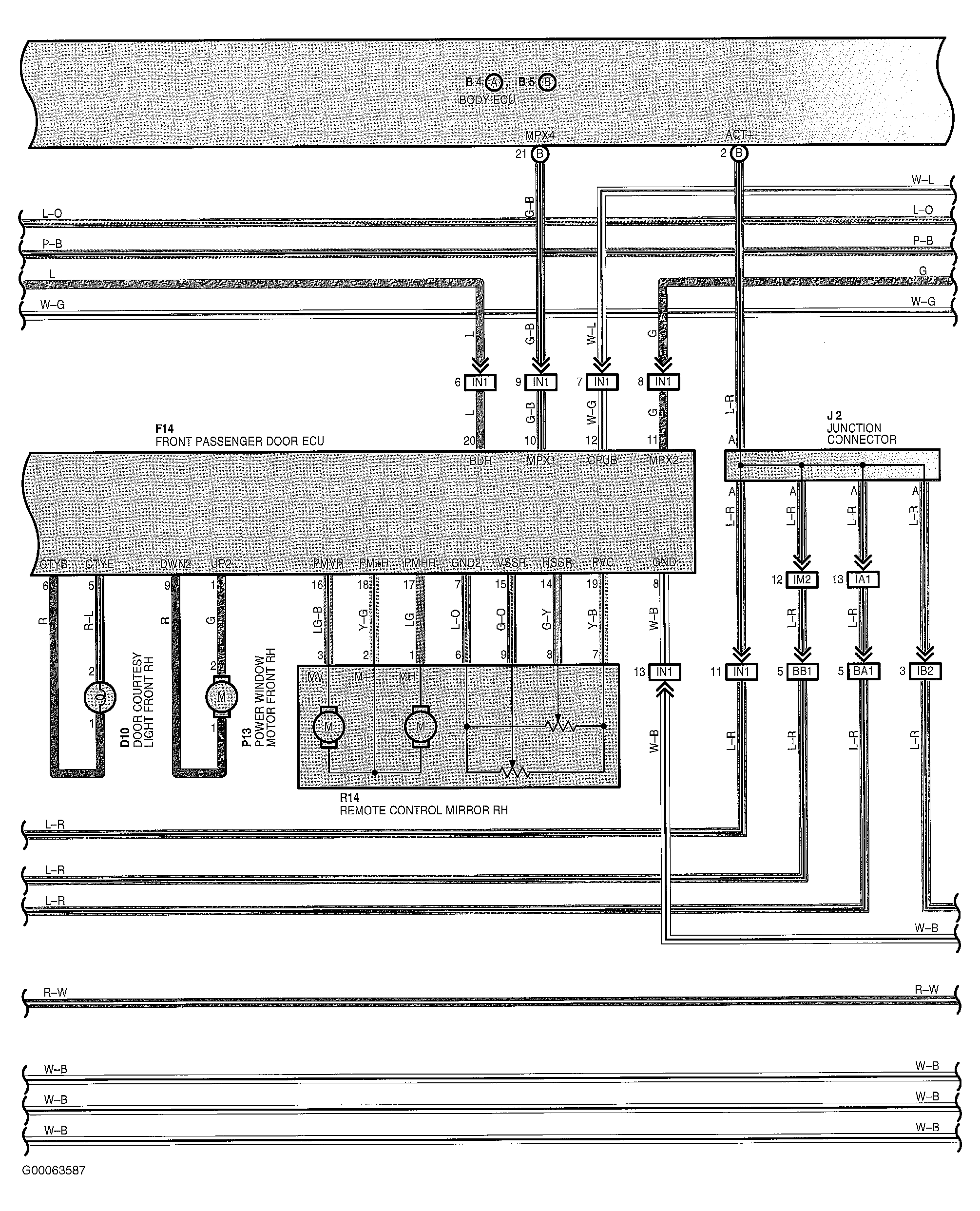

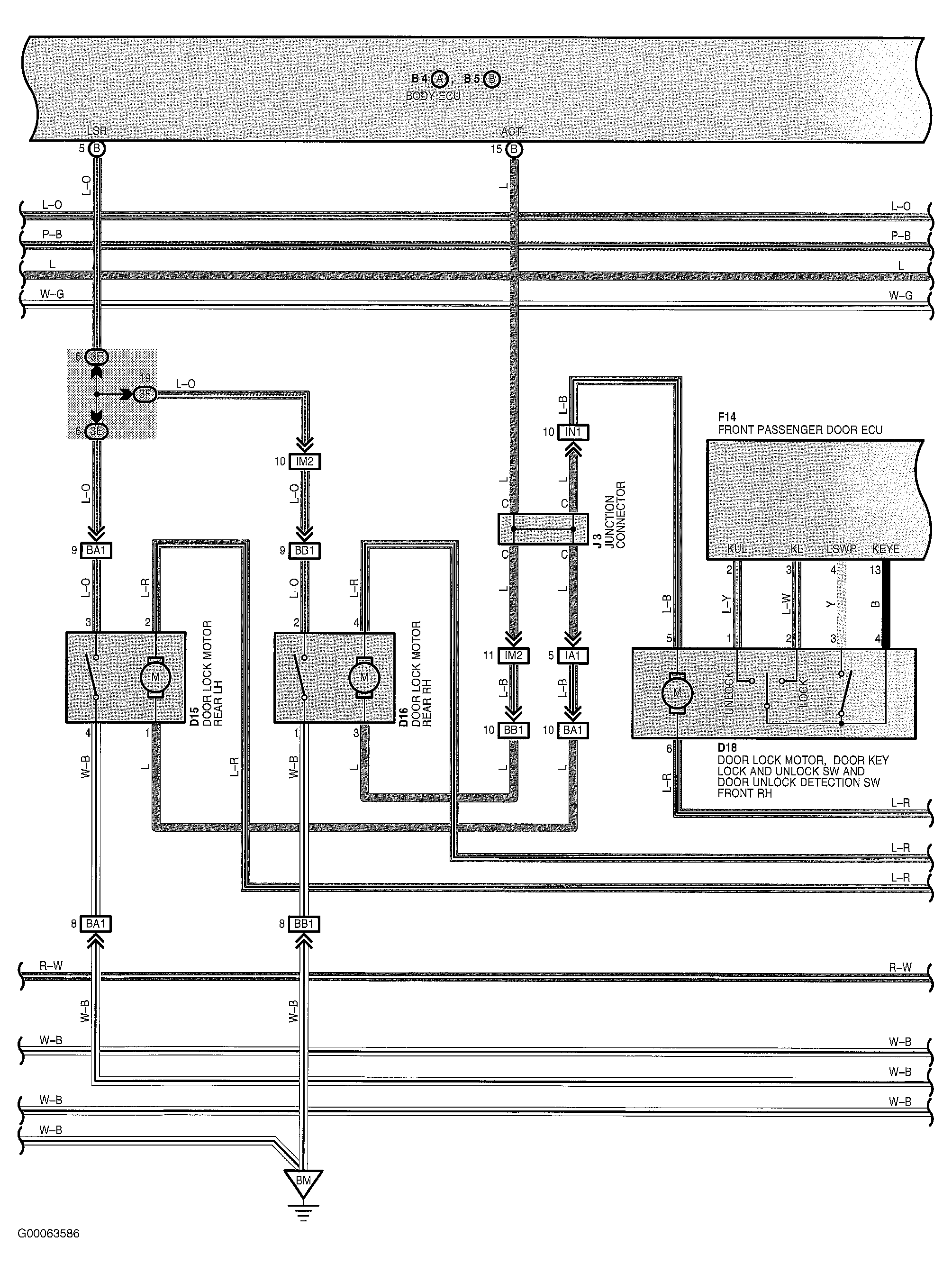

Fig 17: Multiplex Wiring Schematic - Detailed View (Avalon 16 Of 16)
