Section 347 (Engine Cooling System): Radiator: Removal

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Drain Engine Coolant . See step 1 under REPLACEMENT.
Remove Tool Box And Luggage Compartment Trim Box Cover
Remove Radiator Assembly
1. Remove the 2 bolts, 2 nuts and 2 spear wheel carrier extensions.

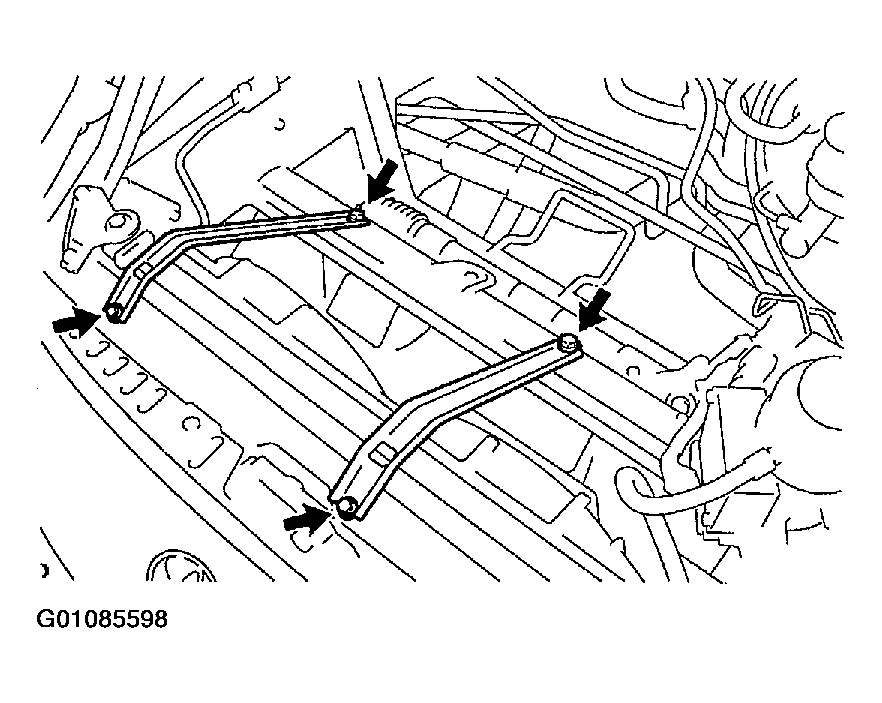

  Fig 1: Locating Radiator Assembly Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 electric cooling fan connectors.
3. Disconnect the 2 radiator hoses.

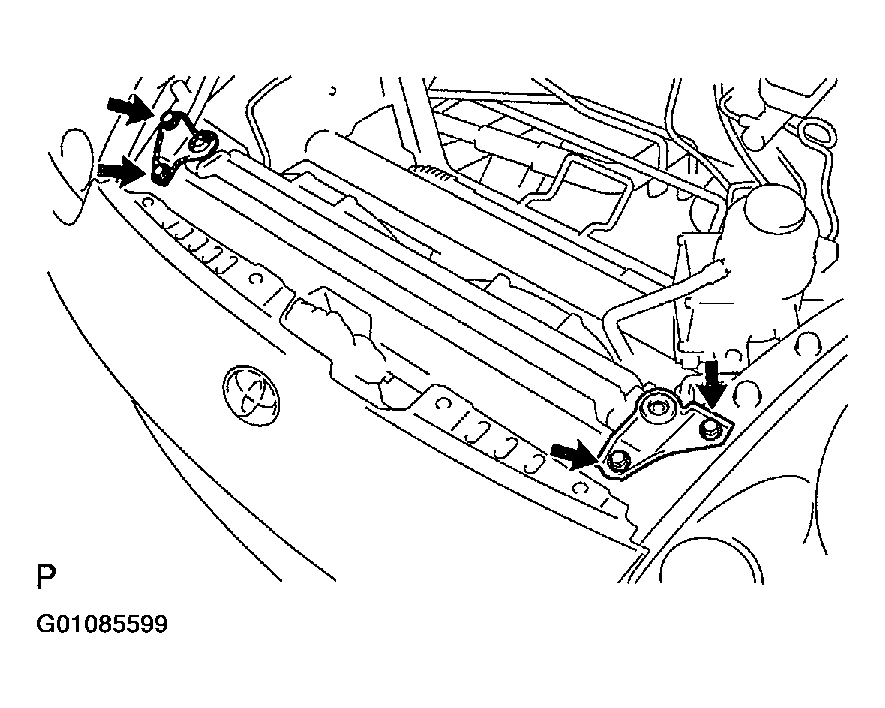

  Fig 2: Locating Bolts & Radiator Upper Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 4 bolts and 2 radiator upper supports.
5. Remove the 2 radiator lower support bushings.
Remove Electric Cooling Fan From Radiator
Remove the 2 bolts and electric cooling fan assembly.
