Window Limit Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

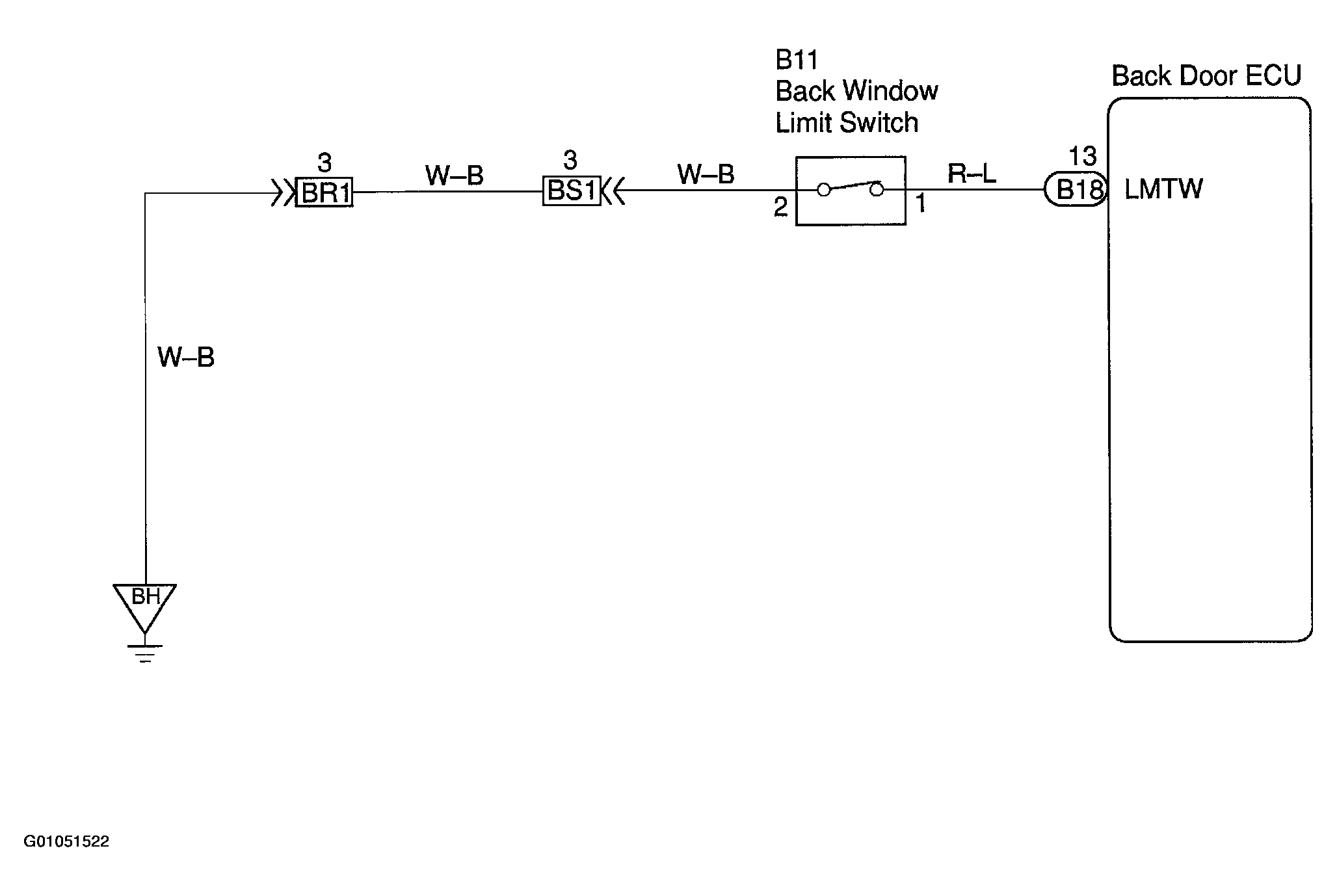

Fig 1: Window Limit Switch Circuit Wiring Diagram
G01051522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
