Component Locations

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional cruise control system component locations, see illustration. See Fig 1. For connectors, grounding points, splices and other electrical components, see ELECTRICAL COMPONENT LOCATOR article in ELECTRICAL.

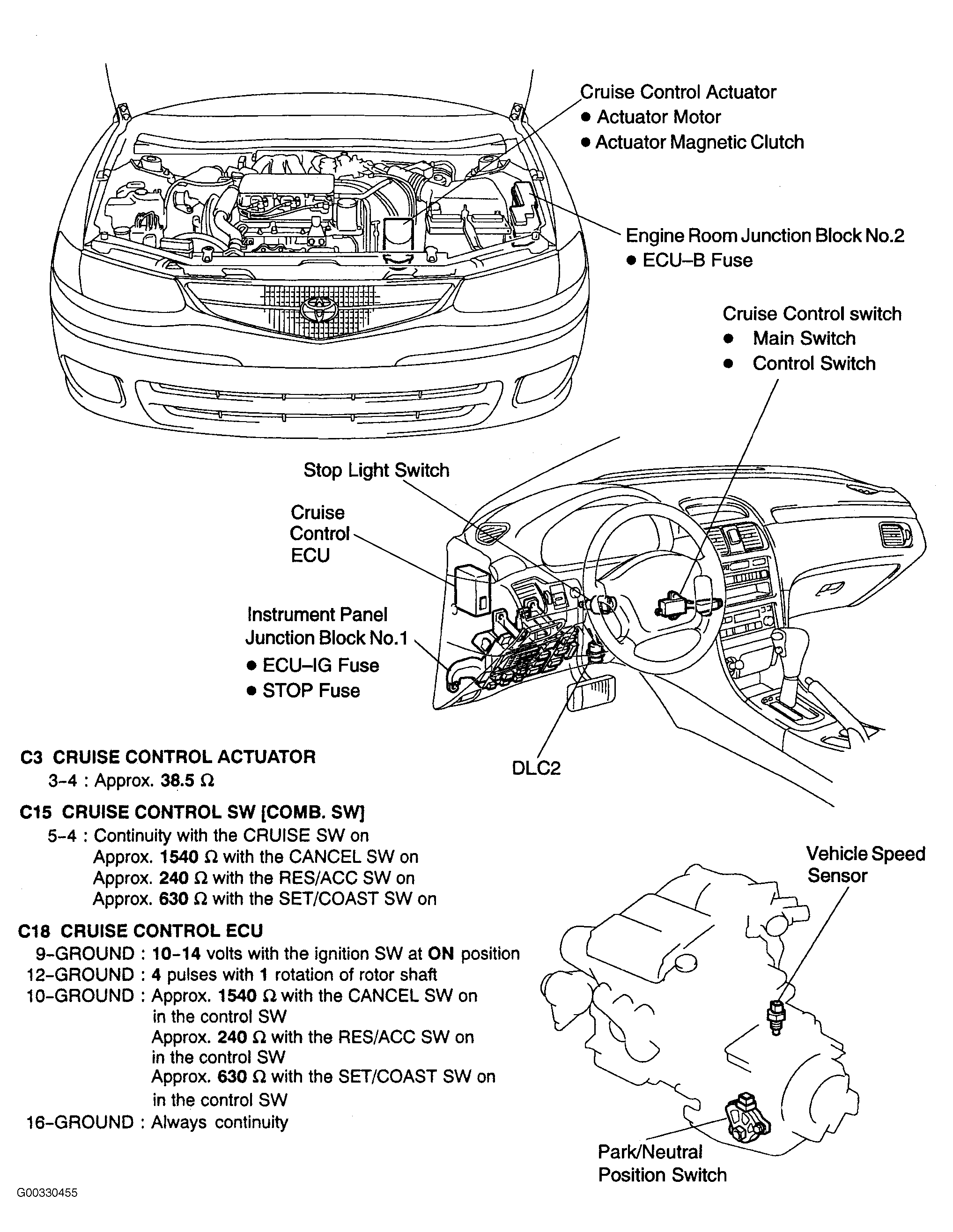

Fig 1: Locating Cruise Control Components, Terminal Voltages & Resistance Values
