Cooling System (Mechanical): Radiator: Installation

  1. Install Radiator

    Install the radiator with 4 bolts.

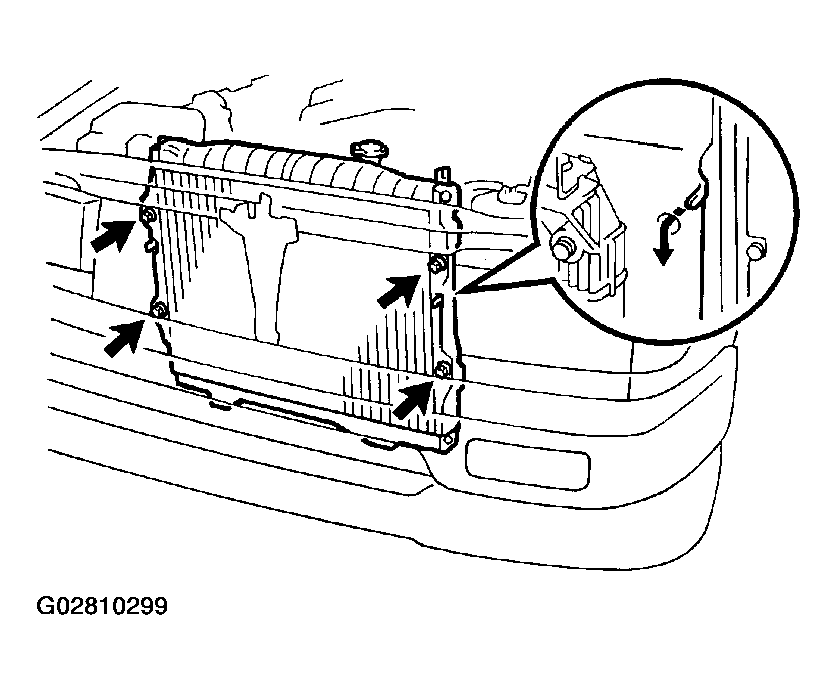

    Fig 1: Installing Radiator With Bolts
    G02810299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 12 N.m (120 kgf.cm, 8.7 ft.lbf)

    NOTE: Insert the tabs of the radiator support through the radiator service holes.
  2. A/T:

    Connect Oil Cooler Hoses

  3. Install Radiator No.2 Fan Shroud
  4. Connect Lower Radiator Hose
  5. Connect Radiator Reservoir Hose
  6. Connect Upper Radiator Hose
  7. Install Radiator Grille

    Install the radiator grille with 7 clips.

  8. Fill With Engine Coolant
  9. Start Engine And Check For Coolant Leaks
