Cooling System (Mechanical): Radiator: Components

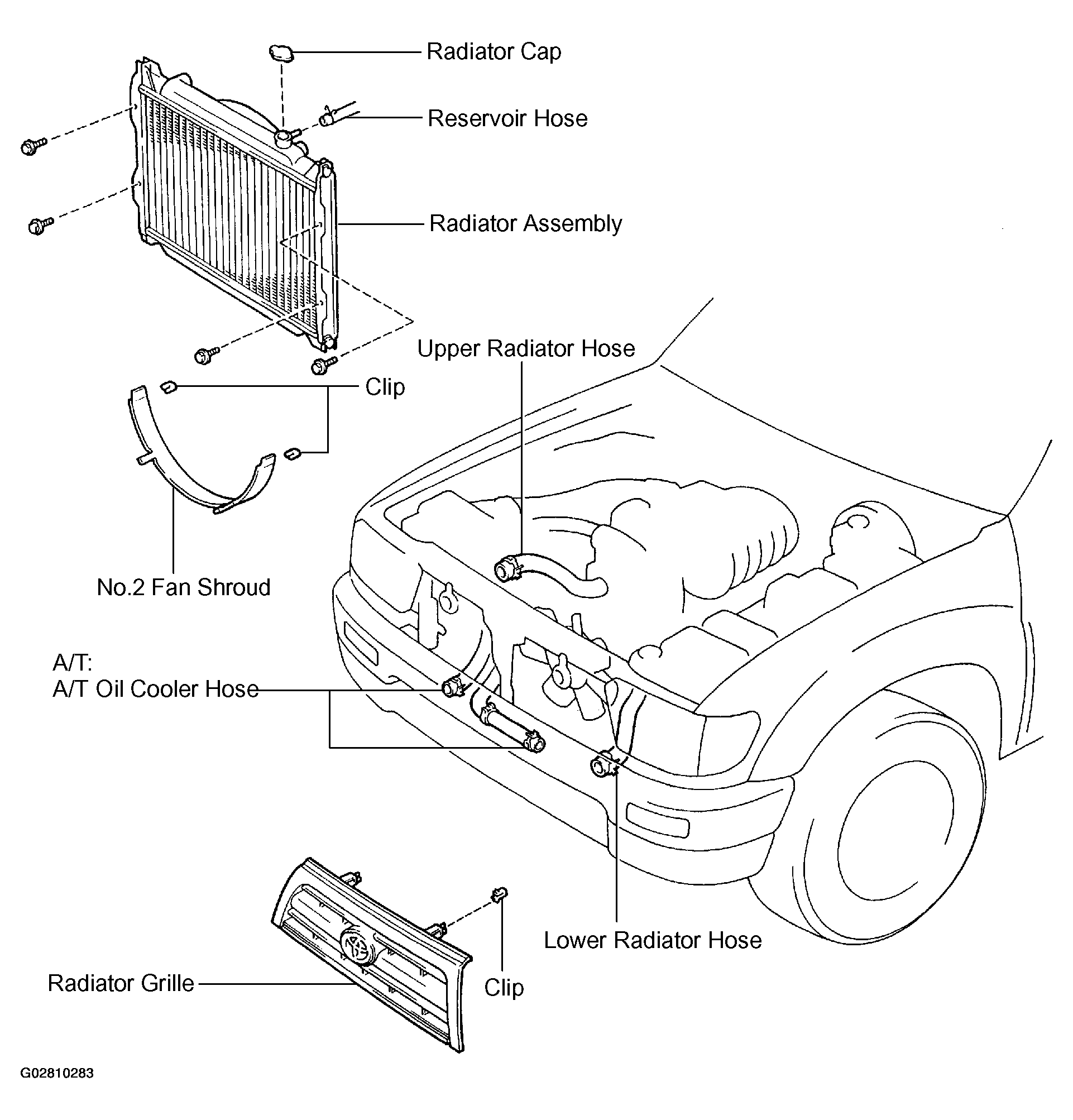

Fig 1: Identifying Components For Radiator Removal
G02810283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

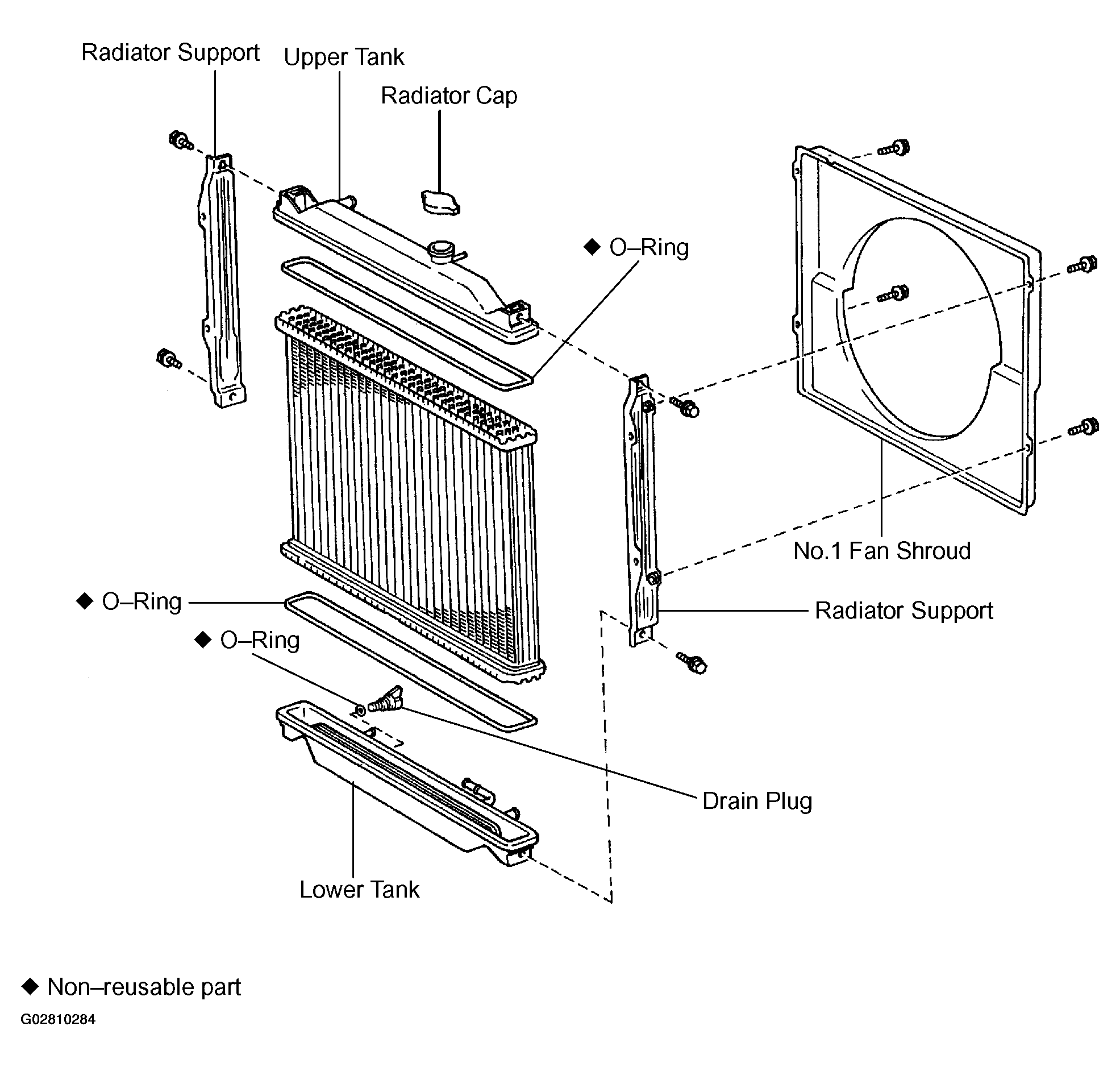

Fig 2: Exploded View Of Radiator Components
G02810284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
