Description & Operation: CAMRY

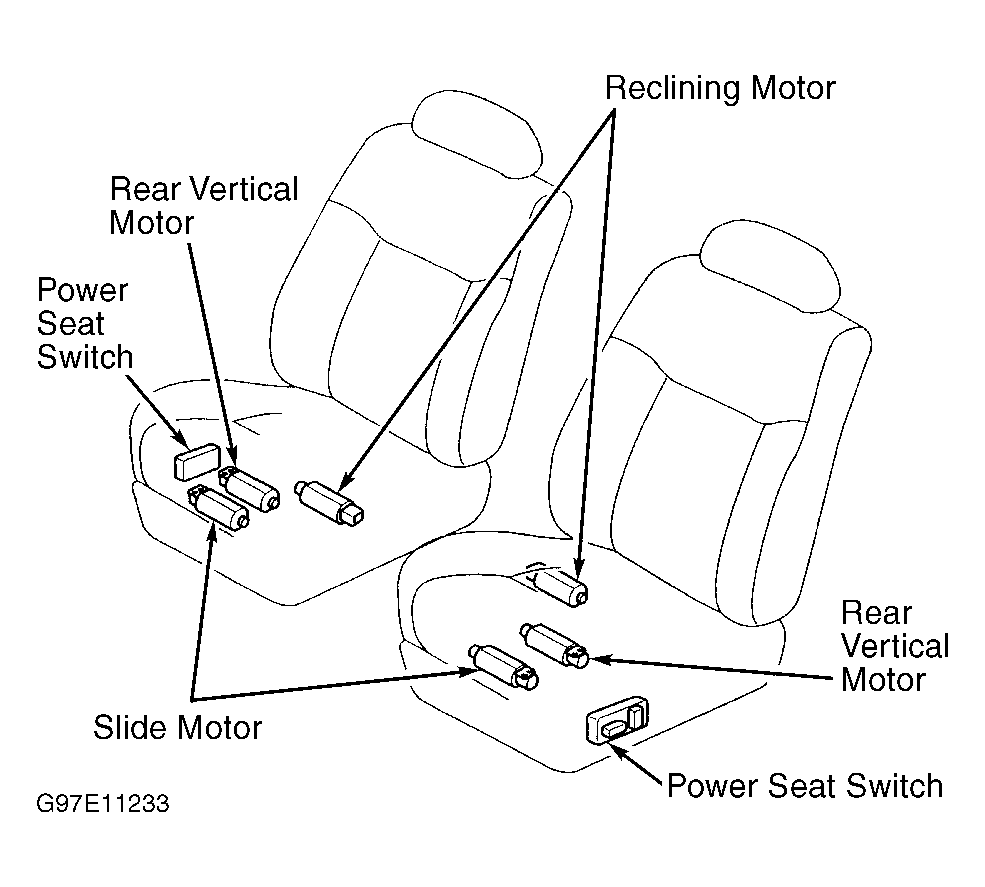

Both front seats slide forward and backward, raises and lowers, and seat backs recline forward and backward. See Figure. Power seat switch controls power and ground circuits of power seat motors. Power seat (30-amp) fuse in instrument panel junction block protects circuit.

Some models are equipped with optional heated front seats. Heating elements are located in seat cushion and seat back.
