Diagnostic Tests: Notes
NOTE:

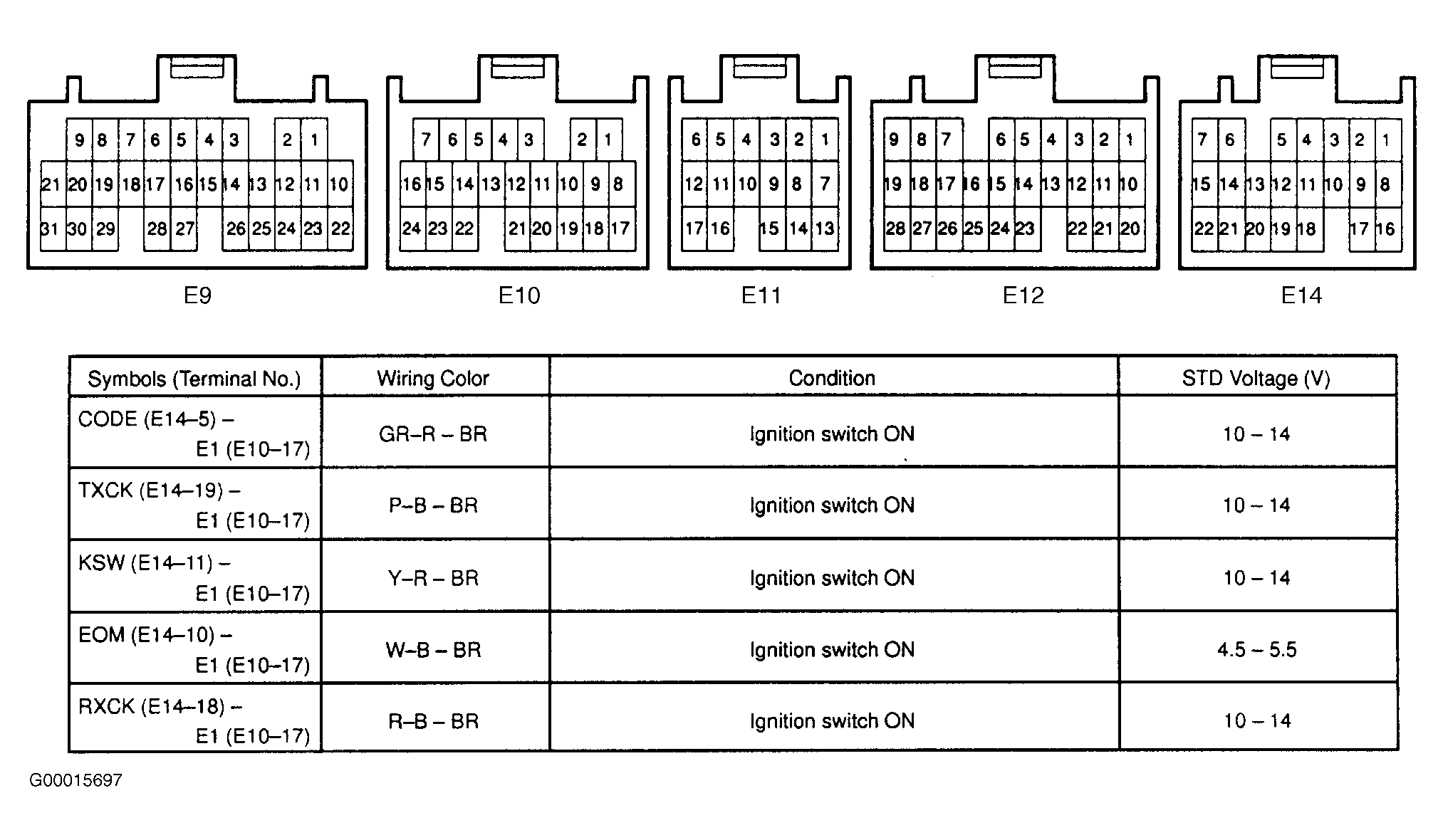

When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) electrical connector terminals which are referenced to in testing procedure. For ECM electrical connector terminal identification, see Figure.
