Back Door Control Switch Circuit: Wiring Diagram

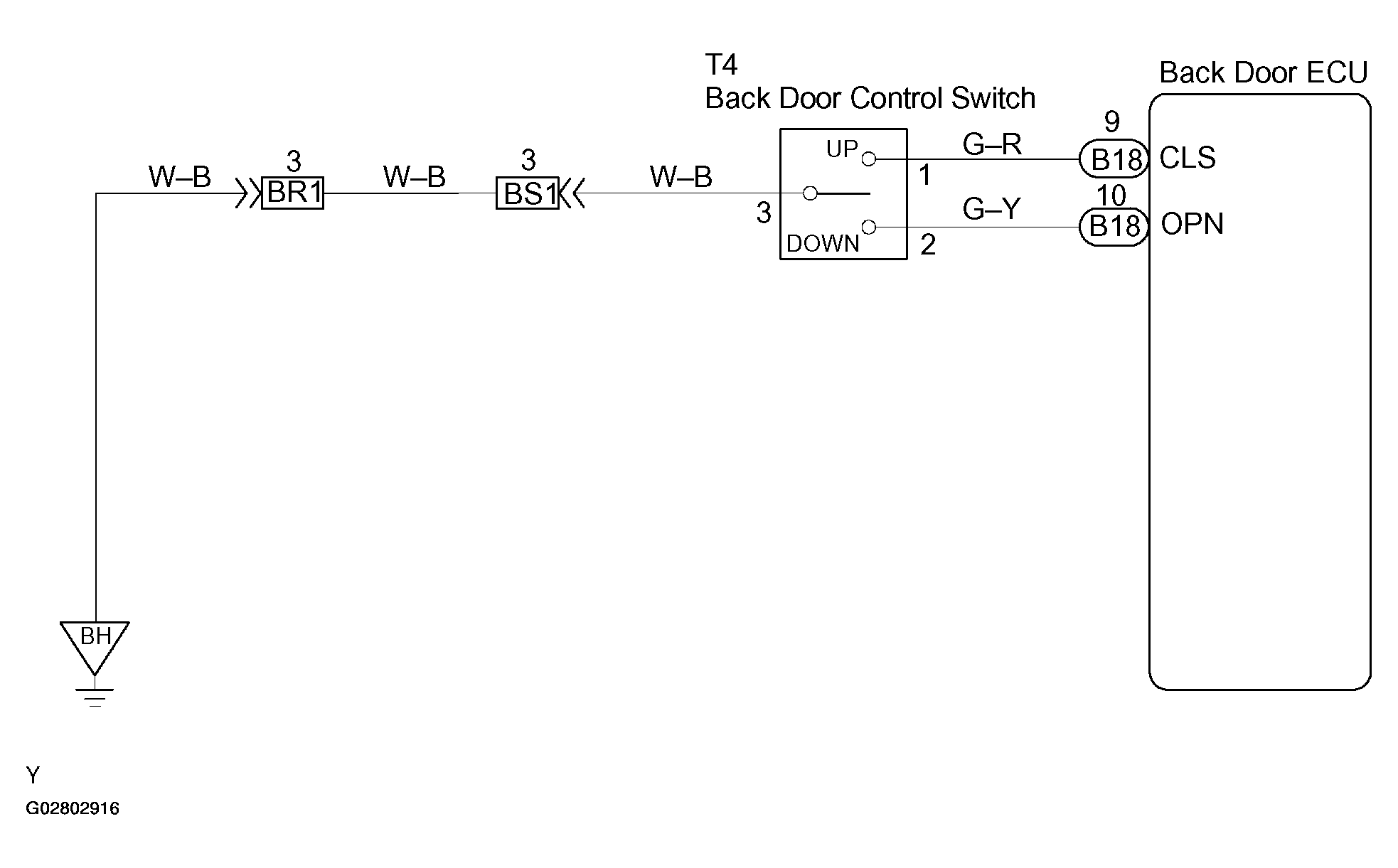

Fig 1: Back Door Control Switch Circuit

G02802916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
