Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

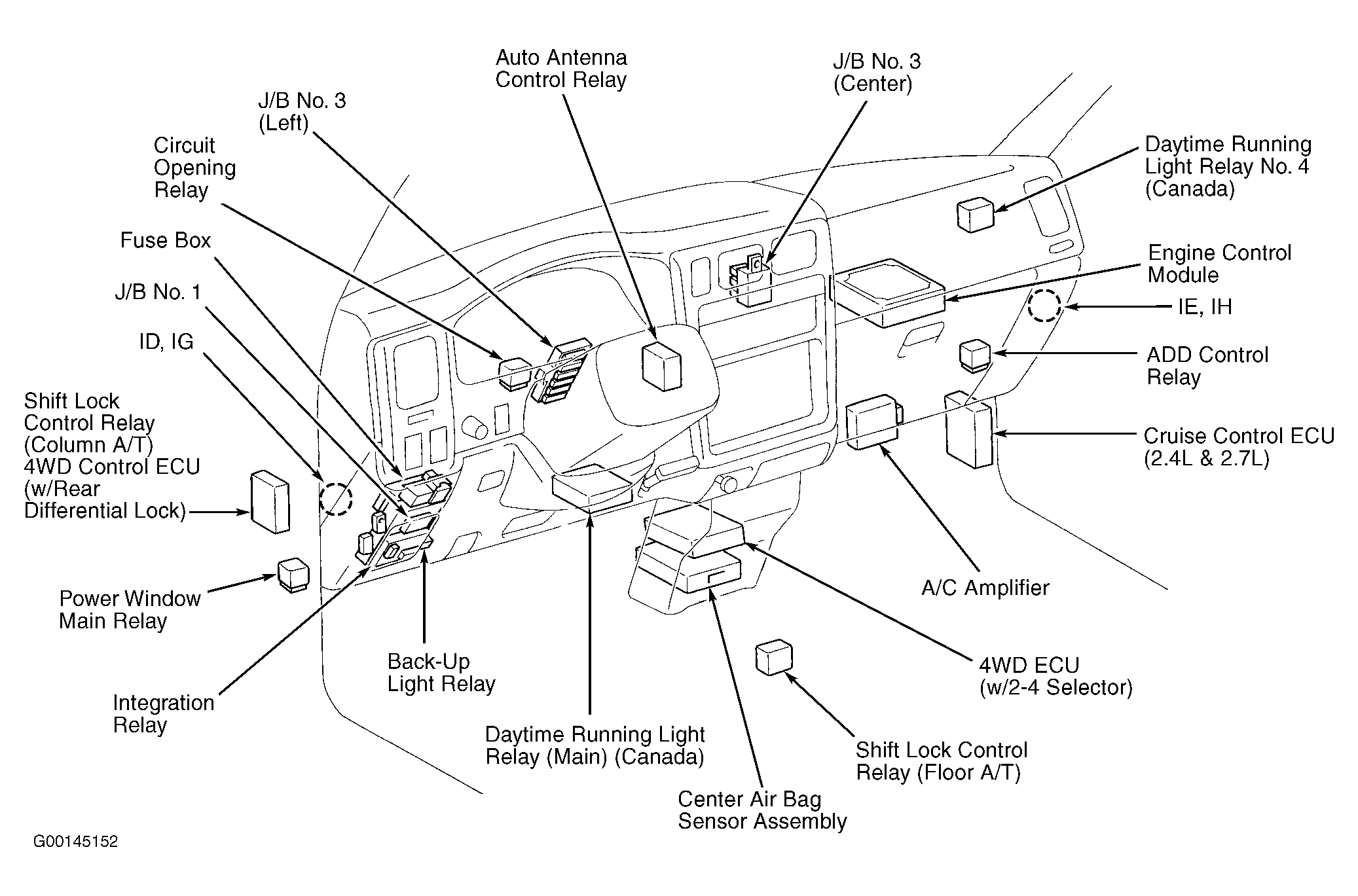

| Fuse Box | On top of J/B No. 1. See Figure. |
| J/B No. 1 | Behind dash, left of steering column. See Figure. |
| J/B No. 3 (Center) | Behind center of dash. See Figure. |
| J/B No. 3 (Left) | Behind dash, above steering column. See Figure. |

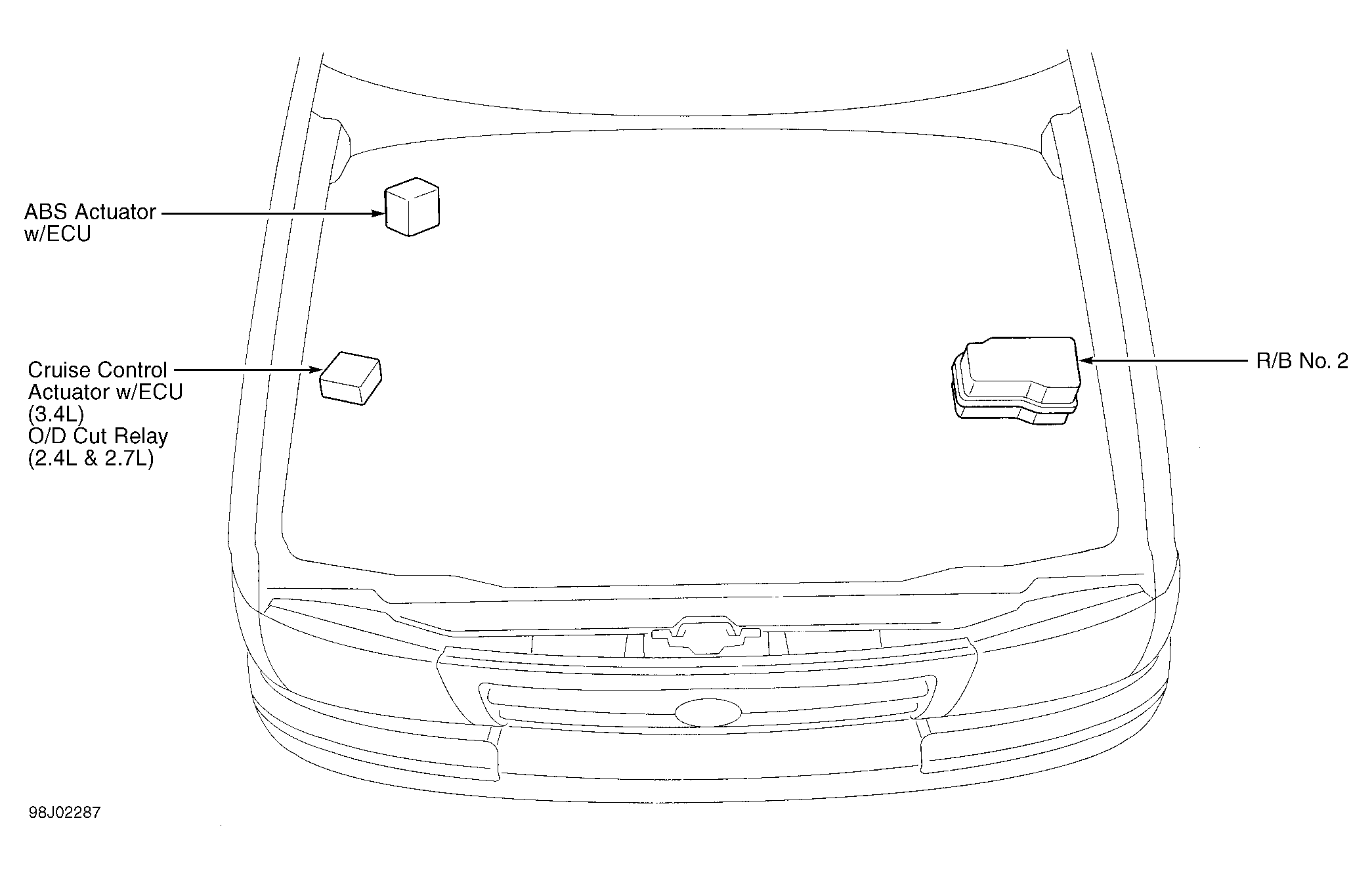

| R/B No. 2 | On left side of engine compartment. See Figure. |
