Ignition-Controlled Automatic Door Lock/Unlock

The RS3200 is factory-set to automatically lock your vehicle's doors when you turn the ignition key to "ON" or "START", and unlock the doors when you turn the key back to "ACC" or "LOCK". To change the programming of this feature, follow the procedure shown below.

G06742231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

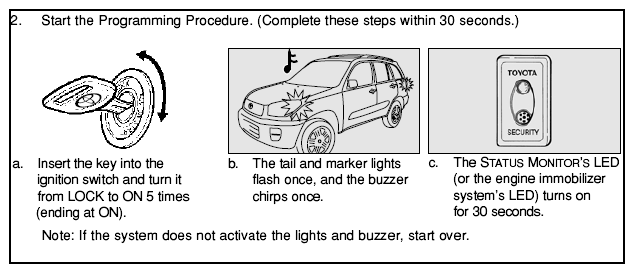

G06742232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

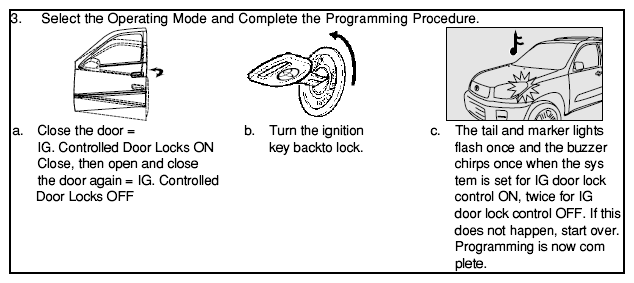

G06742233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
