Improved Cruise Control Switch (EL012-00)
WARNING: This page is about the RAV4 EV, which is a different variant/trim than selected.
Publication date: 2000-10-20Reference number: EL012-00
IMPROVED CRUISE CONTROL SWITCH
TECHNICAL SERVICE BULLETIN
Reference Number(s): EL012-00, Date of Issue:
October 20, 2000
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
IMPROVED CRUISE CONTROL SWITCH13
Model(s): 1997-2000 Toyota RAV4
Section: Electrical
Bulletin No.: EL012-00
Date: October 20, 2000
INTRODUCTION
A change has been made to the Cruise Control Main Switch applicable to 1997 through 2000 model year RAV4 vehicles. A screw has been installed on the back of the switch to increase switch casing durability.
APPLICABLE VEHICLES
1997-2000 model year RAV4 vehicles.
PRODUCTION CHANGE INFORMATION
PRODUCTION CHANGE INFORMATION
| Model | Starting VIN |
|---|---|
| RAV4 (2WD) | JT3GP10V3Y7065553 |
| RAV4 (4WD) | JT3HP10V1Y7151491 |
PARTS INFORMATION
PARTS INFORMATION
| Previous Part Number | Current Part Number | Part Name |
|---|---|---|
| 84630-42010 | Same | Main Switch, Cruise Control |
INSPECTION PROCEDURE

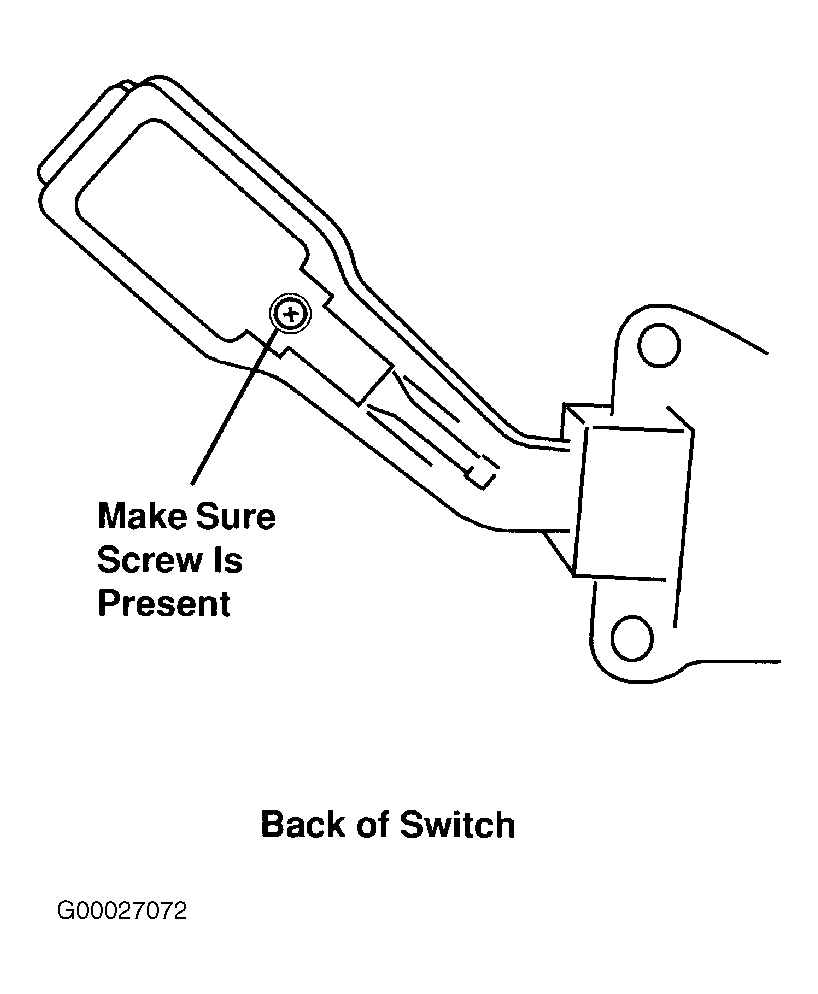

When replacing the Cruise Control Main Switch verify that the new part is equipped with a screw on the back of the switch. The screw can be seen from outside the part. See Fig 1.
WARRANTY INFORMATION
WARRANTY INFORMATION
| OPCODE | Description | Time | OPN | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | ---- | --- | -- | -- |
