Passenger's Door Lock Switch

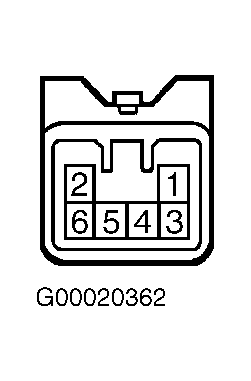

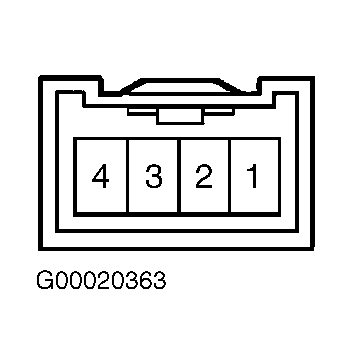

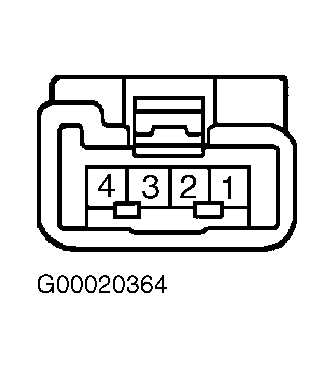

Inspect passenger's door lock switch continuity. See PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY TEST table. If continuity is not as specified, replace passenger's door lock switch. See Fig 1-Fig 3 .
PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY TEST
| Application & Switch Position | Terminals No. | Continuity | |
|---|---|---|---|
| Land Cruiser | |||
| LOCK | 3 & 4 | Yes | |
| UNLOCK | 2 & 4 | Yes | |
| RAV4 | |||
| LOCK | 3 & 6 | Yes | |
| UNLOCK | 3 & 5 | Yes | |
| Sienna | |||
| LOCK | 3 & 6 | Yes | |
| UNLOCK | 3 & 5 | Yes | |
| Tacoma | |||
| LOCK | 3 & 4 | Yes | |
| UNLOCK | 2 & 4 | Yes | |
| Tundra | |||
| LOCK | 3 & 6 | Yes | |
| OFF | 3 & 5; 3 & 6 | No | |
| UNLOCK | 3 & 5 | Yes | |
| 4Runner | |||
| LOCK | 3 & 6 | Yes | |
| UNLOCK | 3 & 5 | Yes | |
