Blower Speed Control Switch: Rear

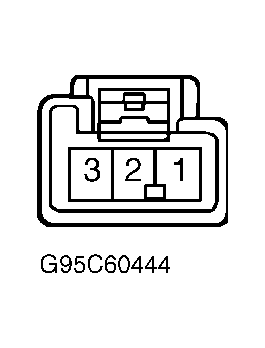

Disconnect harness connector from rear blower speed control switch. With switch in indicated position, check for continuity between specified terminals. See REAR BLOWER SPEED CONTROL SWITCH (4RUNNER) table. See Fig 1. If continuity is not as specified, replace rear blower speed control switch.
REAR BLOWER SPEED CONTROL SWITCH (4RUNNER)
| Switch Position | Continuity Between Terminals No. | ||
|---|---|---|---|
| OFF | (1) | ||
| LO | 2 & 3 | ||
| HI | 1, 2 & 3 | ||
|
|||
