Blower Speed Control Switch: Front

Disconnect harness connector from blower speed control switch. With switch in indicated position, check for continuity between specified terminals. See FRONT BLOWER SPEED CONTROL SWITCH  table. See Fig 1 or Fig 2 . If continuity is not as specified, replace blower speed control switch.

FRONT BLOWER SPEED CONTROL SWITCH

Switch Position (1) Continuity Between Terminals No.
RAV4 & 4Runner
OFF (1)
LO 5 & 6
(D) (2) 1, 5 & 6
(D) (3) 2, 5 & 6
HI 5, 6 & 8
Tacoma
OFF (1)
LO 1 & 8
(D) (2) 1, 3 & 8
(D) (3) 1, 2 & 8
HI 1, 6 & 8
Tundra
OFF (1)
LO 1 & 3
M1 1, 3 & 4
M2 1, 3 & 8
HI 1, 3 & 5
(1) With switch in any position, continuity should exist between terminals No. 3 and 4. With switch in OFF position, continuity should not exist between any other terminals.
(2) Circle (D) closer to LO position.
(3) Circle (D) closer to HI position.

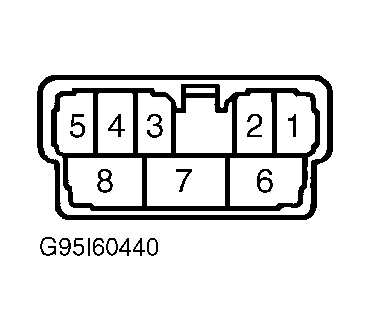

Fig 1: Identifying Front Blower Speed Control Switch Connector Terminals (RAV4, Tacoma & 4Runner)
G95I60440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

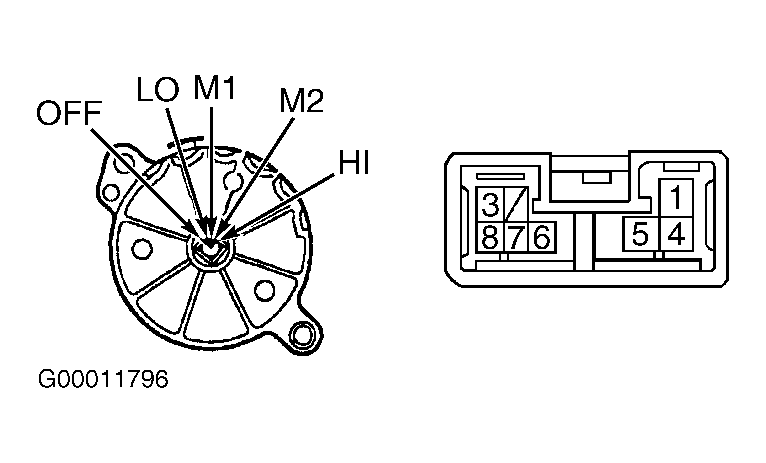

Fig 2: Identifying Blower Speed Control Switch Connector Terminals (Tundra)
G00011796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
