Section 29 (Thermostat): Inspection: Installation

WARNING: This page is about a different car, the 2001 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Place Thermostat In Cylinder Block
1. Install a new gasket to the thermostat.
2. Install the thermostat with the jiggle valve upward.

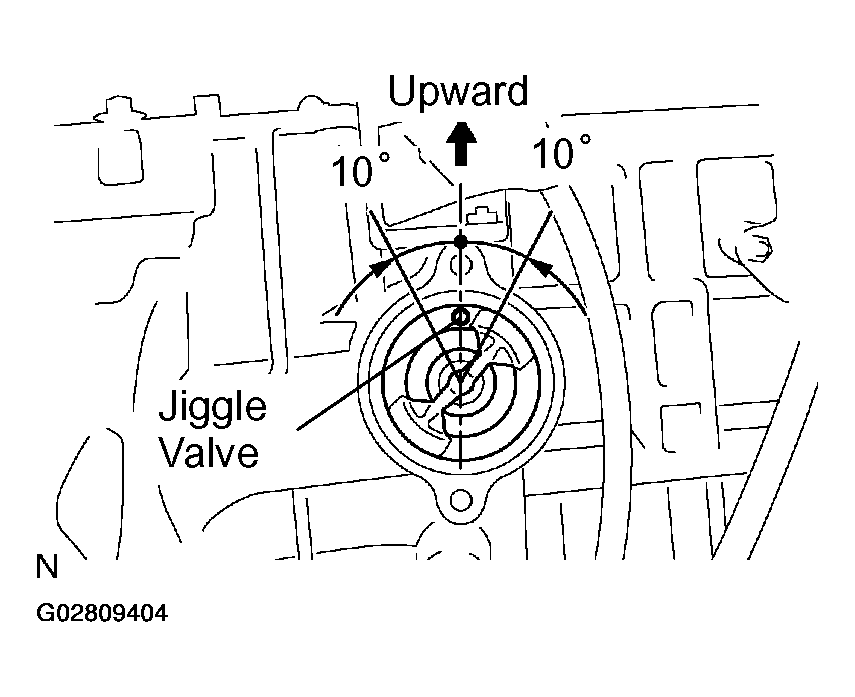

  Fig 1: Aligning Jiggle Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: The jiggle valve may be set within 10° of either side of the prescribed position.
Install Water Inlet
Install the water inlet with the 2 nuts.

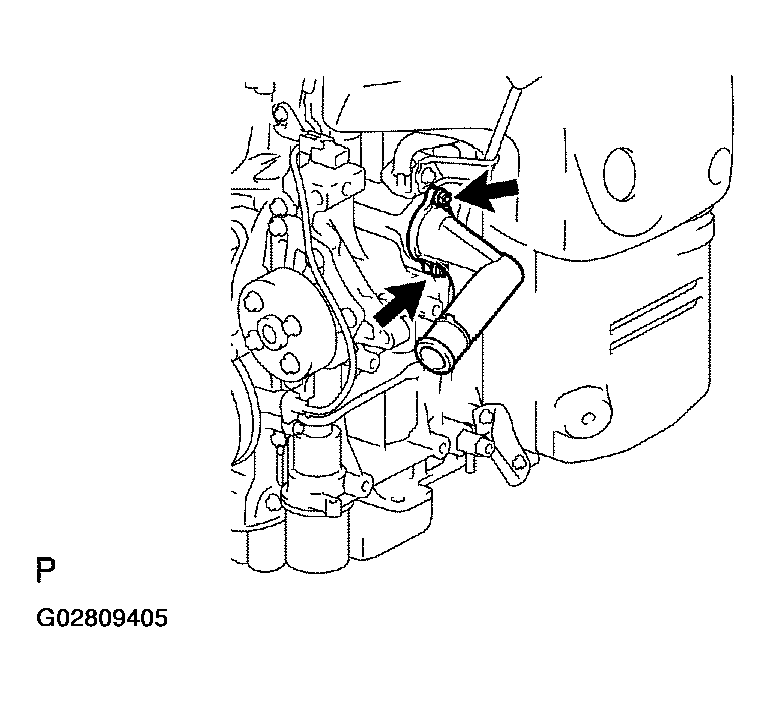

Fig 2: Installing Water Inlet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 9 N.m (90 kgf.cm, 80 in.lbf)
Install Generator (See GENERATOR )
Install Drive Belt
Fill With Engine Coolant (See COOLANT )
Start Engine And Check For Leaks
Recheck Engine Coolant Level
