Passive (Automatic) Arming, And Valet Mode

The PASSIVE (AUTOMATIC) ARMING and VALET MODE functions are factory set to OFF.

When the system is programmed for PASSIVE ARMING operation, the ENTRY DELAY is factory set to 15 seconds. When the system is set to VALET MODE, the security functions are disabled.

To select an operating mode, follow the steps below:

Insert the key into the ignition switch, and turn it to "ON" (not "ACC").
Using 1 REMOTE CONTROL, press and hold both buttons (at the same time) for over 2 seconds, until the STATUS MONITOR'S LED turns on.
-YOU MUST PERFORM THE NEXT STEPS WITHIN 30 SECONDS-
Select the operating mode. (Follow this procedure as written, regardless of the current mode.)

PASSIVE (AUTOMATIC) ARMING AND VALET MODE PROGRAMMING PROCEDURE

Mode

Programming Step

Programming Completion

PASSIVE (AUTOMATIC) ARMING ON

Press and release the top REMOTE CONTROL BUTTON once.
(The PIEZO "CHIRPER" chirps once, and the exterior lights flash once.)

Turn the ignition switch to the "LOCK"⁽¹⁾ position.
(The PIEZO "CHIRPER" chirps three times, and the exterior lights flash 3 times.)

PASSIVE (AUTOMATIC) ARMING OFF

Press and release the top REMOTE CONTROL BUTTON twice.
(The PIEZO "CHIRPER" chirps twice, and the exterior lights flash twice.)

Turn the ignition switch to the "LOCK"⁽¹⁾ position.
(The PIEZO "CHIRPER" chirps three times, and the exterior lights flash 3 times.)

VALET MODE ON
(No Security Functions)

Press and release the top REMOTE CONTROL BUTTON three times.
(The PIEZO "CHIRPER" chirps once, and the exterior lights flash once for .6 second.)

Turn the ignition switch to the "LOCK"⁽¹⁾ position.
(The PIEZO "CHIRPER" chirps three times, and the exterior lights flash 3 times.)

⁽¹⁾	If you do not turn the ignition key to "LOCK", or exceed 30 seconds during the programming steps, the STATUS MONITOR'S LED will turn off, and the previous operation mode will remain unchanged.

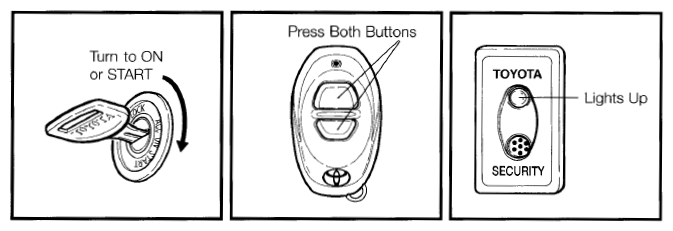

Fig 1: Procedure For Selecting An Operating Mode
