Crankshaft Position Sensor Resistance: RAV4

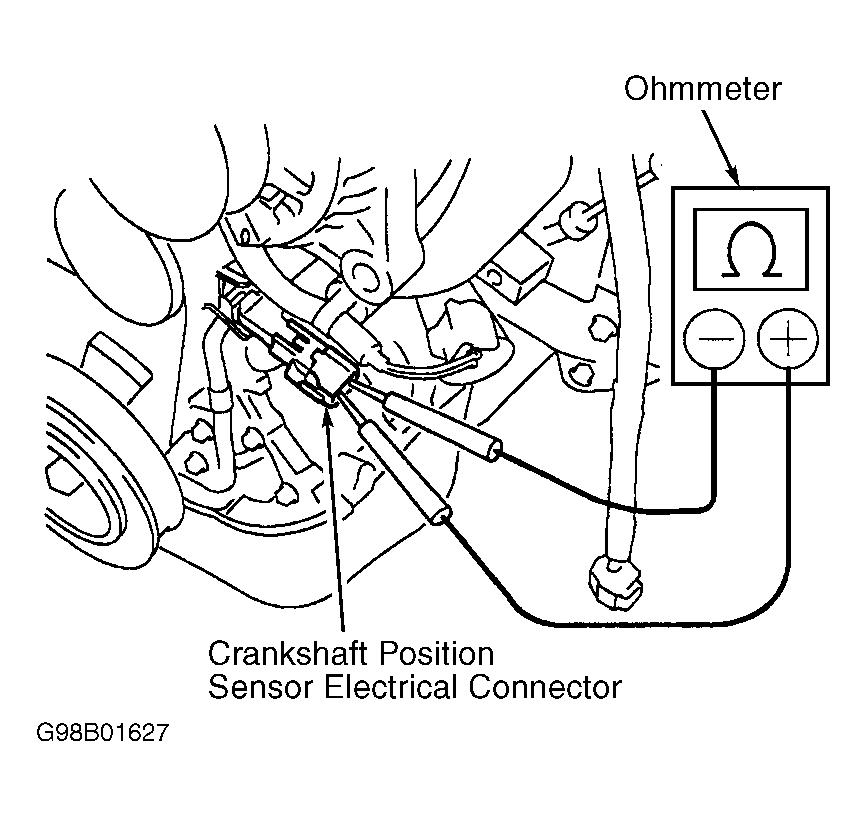

- Disconnect crankshaft position sensor electrical connector located near front of engine, just below generator. See Figure. Crankshaft position sensor is located behind lower timing belt cover, near crankshaft sprocket.
- Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor electrical connector. Ensure crankshaft position sensor resistance is within specification. See CRANKSHAFT POSITION SENSOR RESISTANCE table.
- Replace crankshaft position sensor if resistance is not within specification. See IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. Reinstall crankshaft position sensor electrical connector.
