| ABS Actuator Mounting Bracket-To-Body Bolt/Nut |
14 (19) |
| A/C Compressor Bolt/Nut |
| Bolt |
27 (37) |
| Nut |
20 (27) |
| Stud Bolt |
34 (46) |
| Axle Shaft Bearing Bracket Bolt |
| 2WD A/T Models |
47 (64) |
| Axle Shaft Bearing Bracket-To-Cylinder Block Bolt |
| 2WD A/T & M/T Models |
47 (64) |
| Axle Shaft Nut |
159 (216) |
| Axle Shaft Retaining Bolt |
| 2WD M/T Models |
24 (33) |
| Ball Joint-To-Lower Control Arm Bolt/Nut |
94 (127) |
| Brake Line-To-ABS Actuator Nut |
11 (15) |

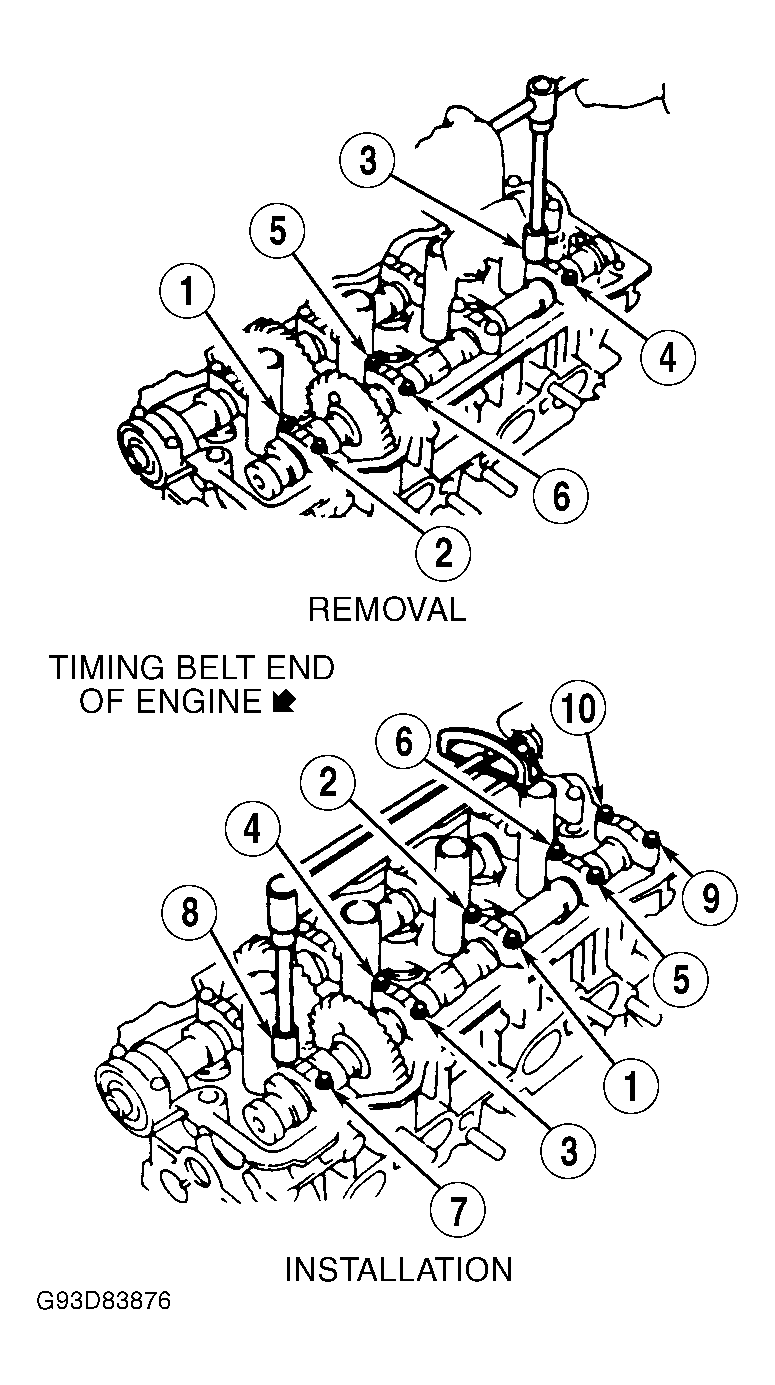

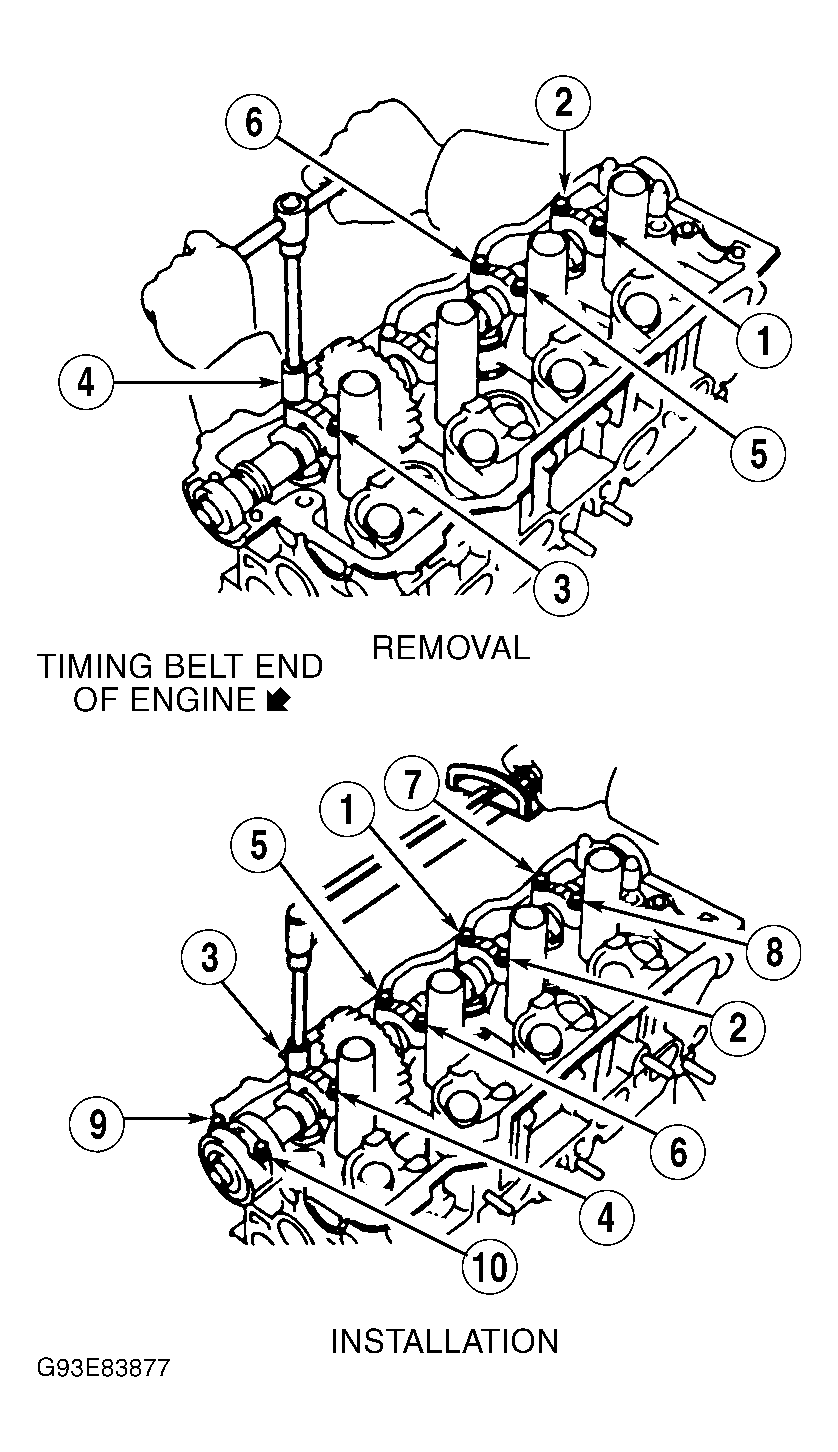

| Camshaft Bearing Cap Bolt |
14 (19) |
| Camshaft Sprocket Bolt |
40 (54) |
| Connecting Rod Nut |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Coolant Outlet Nut |
11 (15) |
| Crankshaft Pulley Bolt |
80 (108) |

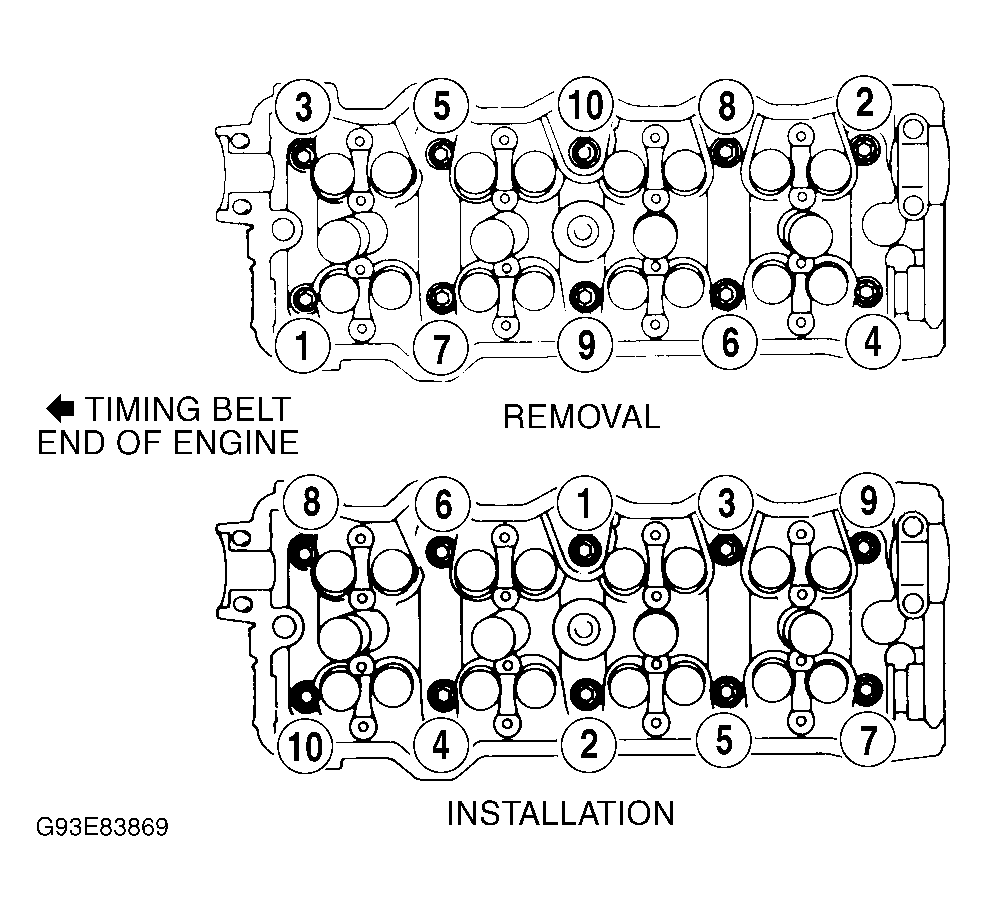

| Cylinder Head Bolt |
| Step 1 |
36 (49) |
| Step 2 |
Additional 90 Degrees |
| Distributor Hold-Down Bolt |
14 (19) |
| Drive Shaft Center Support Bearing Bolt |
| 4WD Models |
27 (37) |
| Drive Shaft Flange Bolt/Nut |
| 4WD Models |
54 (73) |
| EGR Valve |
| Nut |
|
| Union Nut |
43 (58) |
| Engine Mounts & Brackets |
| Front (Exhaust Manifold Side) Engine Mount-To-Engine Mount Crossmember Bolt |
59 (80) |
| Left (Transaxle Side) Engine Mounting Bracket-To-Engine Mount Bolt/Nut |
47 (64) |
| Right (Timing Belt Side) Engine Mounting Bracket-To-Cylinder Block Bolt |
38 (52) |
| Right (Timing Belt Side) Engine Mount-To-Body Bolt |
47 (64) |
| Right (Timing Belt Side) Engine Mounting Bracket-To-Engine Mount Bolt/Nut |
| Bolt |
27 (37) |
| Nut |
38 (52) |
| Engine Mount Crossmember-To-Body Bolt |
26 (35) |
| Exhaust Manifold Nut |
36 (49) |
| Flywheel/Drive Plate Bolt |
| A/T |
61 (83) |
| M/T |
65 (88) |
| Front Catalytic Converter Brace Bolt/Nut |
31 (42) |
| Front Catalytic Converter-To-Exhaust Manifold Bolt/Nut |
45 (61) |
| Front Exhaust Pipe-To-Front Catalytic Converter Nut |
46 (62) |
| Front Exhaust Pipe-To-Rear Exhaust Pipe Bolt/Nut |
35 (47) |
| Front Suspension Crossmember Bolt |
| Bolt At Body |
152 (206) |
| Bolt At Lower Control Arm |
101 (137) |
| Fuel Line-To-Fuel Filter Union Bolt |
21 (28) |
| Fuel Pipe-To-Delivery Pipe Union Bolt |
25 (34) |
| Generator Adjusting Bracket Bolt |
20 (27) |
| Generator Mounting Bracket Bolt |
31 (42) |
| Intake Manifold Bolt/Nut |
14 (19) |
| Intake Manifold Brace Bolt |
31 (42) |

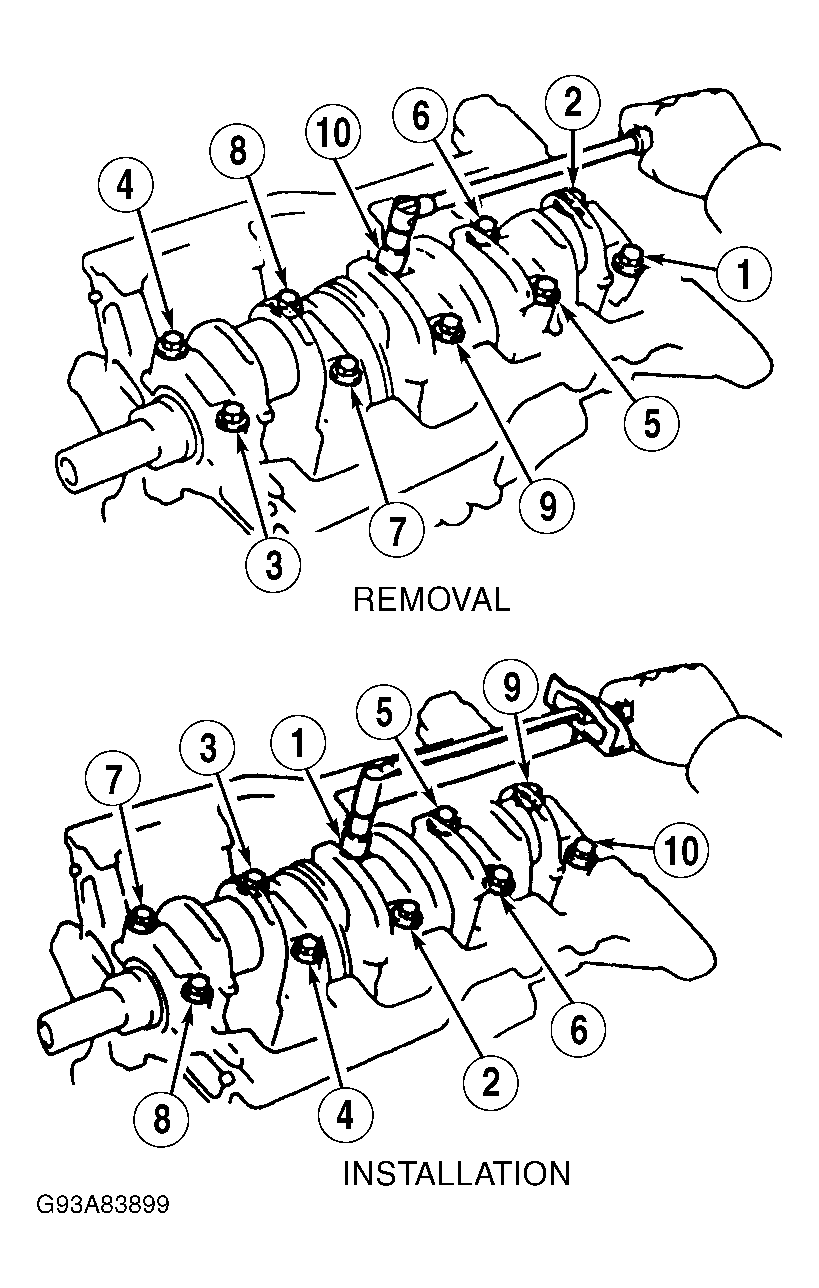

| Main Bearing Cap Bolt |
43 (58) |

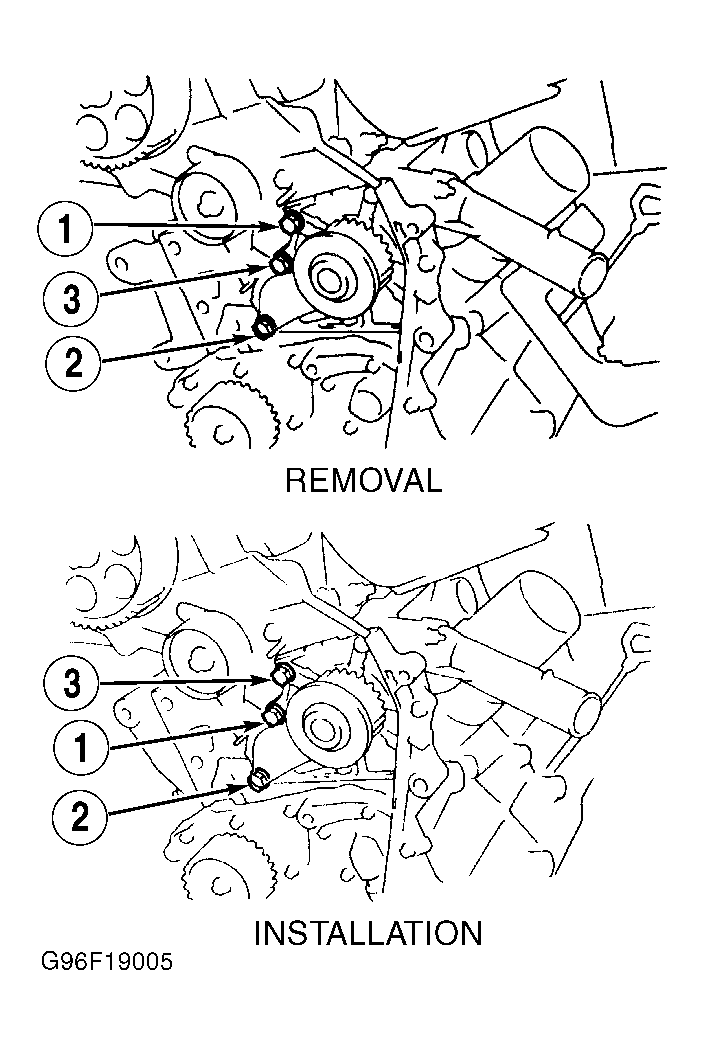

| No. 1 & No. 2 Idler Pulley Bolt |
31 (42) |
| Oil Cooler Relief Valve |
58 (79) |
| Oil Pump Sprocket Nut |
18 (24) |
| Oxygen Sensor-To-Exhaust Manifold Nut |
15 (20) |
| Oxygen Sensor-To-Front Catalytic Converter |
33 (45) |
| Power Steering Pump Bolt |
32 (43) |
| Power Steering Pump Mounting Bracket-To-Cylinder Block Bolt |
32 (43) |
| Spark Plug |
13 (18) |
| Spark Plug Tube |
39 (53) |
| Stabilizer Bar Link-To-Lower Control Arm Nut |
| 2-Door Vehicles |
33 (45) |
| 4-Door Vehicles |
54 (73) |
| Stabilizer Bar-To-Frame Mount Bolt |
22 (30) |
| Starter Bolt |
29 (39) |
Steering Gear Assembly-To-Front Suspension Crossmember Bolt/Nut
|
83 (113) |
| Stiffener Plate Bolt |
27 (37) |
| Throttle Body Bolt/Nut |
14 (19) |
| Tie Rod Nut |
41 (56) |
| Valve Cover Nut |
33 (45) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| ABS Speed Sensor Bolt |
71 (8.0) |
| Clutch Release Cylinder Bolt |
106 (12.0) |
| Coolant By-Pass Pipe-To-Water Pump Nut |
82 (9.3) |
| Crankshaft Position Sensor Bolt |
71 (8.0) |
| Fuel Delivery Pipe-To-Cylinder Head Bolt |
115 (13.0) |
| No. 3 Timing Belt Cover Bolt |
69 (7.8) |
| Oil Baffle Plate-To-Cylinder Block Bolt/Nut |
48 (5.4) |
| Oil Cooler-To-Cylinder Block Nut |
78 (8.8) |
| Oil Pan Bolt/Nut |
48 (5.4) |
| Oil Pump Body Cover Bolt |
78 (8.8) |
| Oil Pump Pick-Up Tube Bolt/Nut |
48 (5.4) |
| Oil Pump-To-Cylinder Block Bolt |
78 (8.8) |
| Rear Plate-To-Cylinder Block Bolt |
82 (9.3) |
| Rear Seal Housing Bolt |
115 (13.0) |
| Thermostat Housing Nut |
78 (8.8) |
| Water Pump-To-Cylinder Block Bolt |
78 (8.8) |
| Water Pump-To-Water Pump Cover Bolt |
78 (8.8) |
